Attributes
PCB mountMounting Type
By Actual Production DateManufacturing Date Code
FRS- 9HC5Model Number
SZFASTBrand Name
used in sensor and switchUsage
customizedMeasurement Range
Description:Sense Position with Magnet,Output Switch ON/OFF

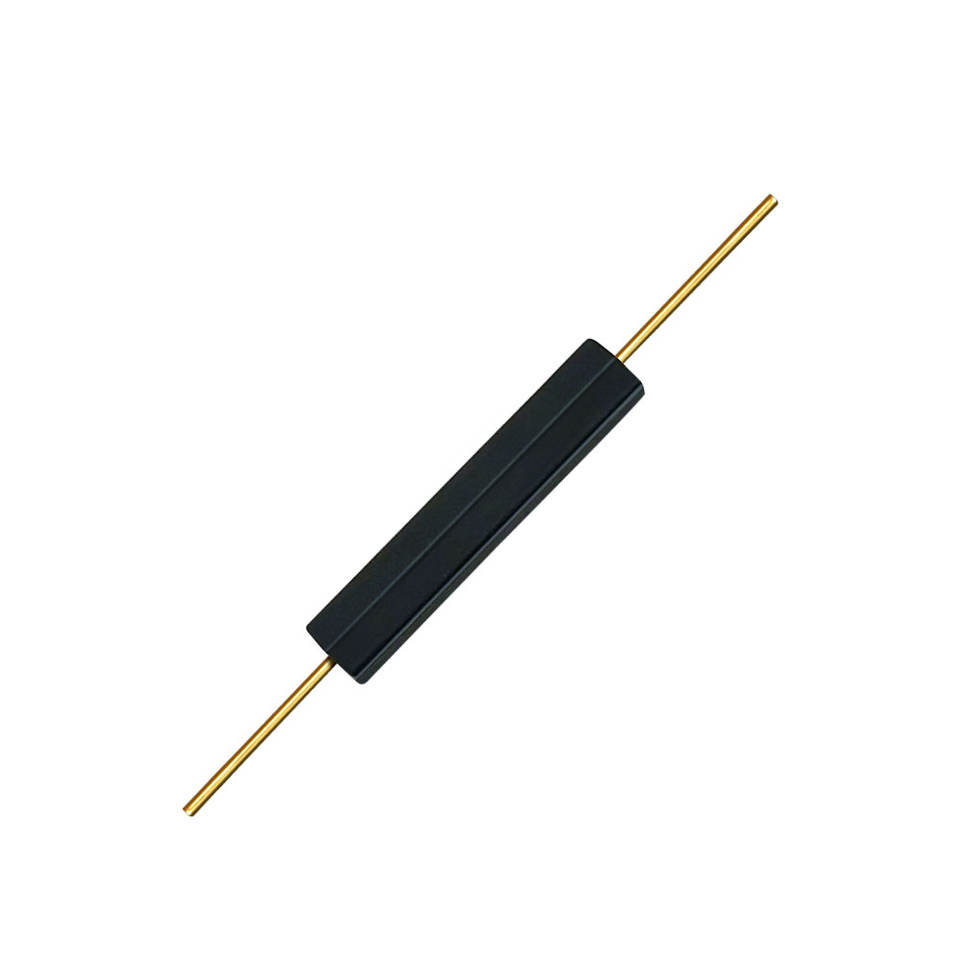

Type:Reed Switch
Place of Origin:Hubei, China
Series:SMD Reed Switch/Surface Mount Reed Sensor
Features:Sense Position with Magnet,Output Switch ON/OFF
Theory:Magnetic Reed Contact
Output:Switching Signal ON/OFF
Supply Voltage:220V
Response Time:5s
Axis:customized
Contact Rating-max.-Max:10W
Switching Voltage-Max:170DC/120AC
Switching Current-Max:0.5A
Carry Current-Max:0.4A
Contact Resistance-Max:150 mOhms
Break Down Voltage-Min:210V
Insulation Resistance-min.:1000000MΩ
Operating Temperature:-25~85℃
