Attributes
Otherapplication
1.6MPapressure
OEM, ODM, OBMcustomized support
1 Yearwarranty
Chinaplace of origin
Electricpower source
structure:ink pump
model number:GQC010ESLB02
Applicable temperature:-40 to 105 degrees Celsius
Max Flow Rate:480mL/min
Max Pressure:1.6MPa
motor:Servo Motor, Brushless DC Motor, Stepper Motor
Material:Stainless Steel

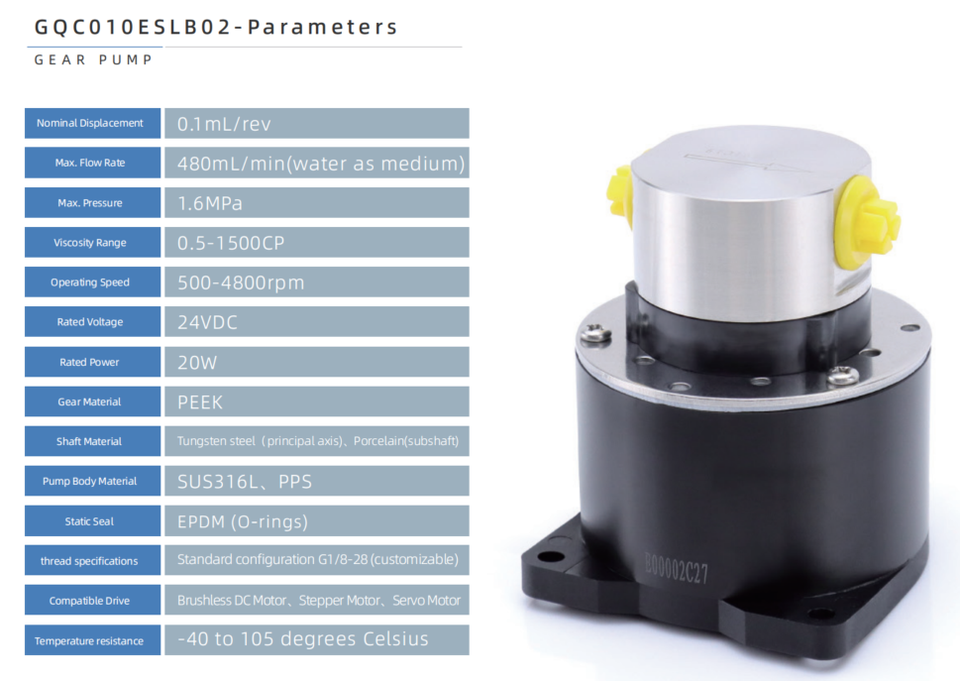

Nominal Displacement:0.1mL/rev
Max. Flow Rate:480mL/min(water as medium)
Max. Pressure:1.6MPa
Viscosity Range:0.5-1500CP
Operating Speeds:500-4800rpm
Rated Voltage:24VDC
Rated Power:20W
Gear Material:PEEK
Pump Body Material:SUS316L
Static Seal:EPDM (O-rings)

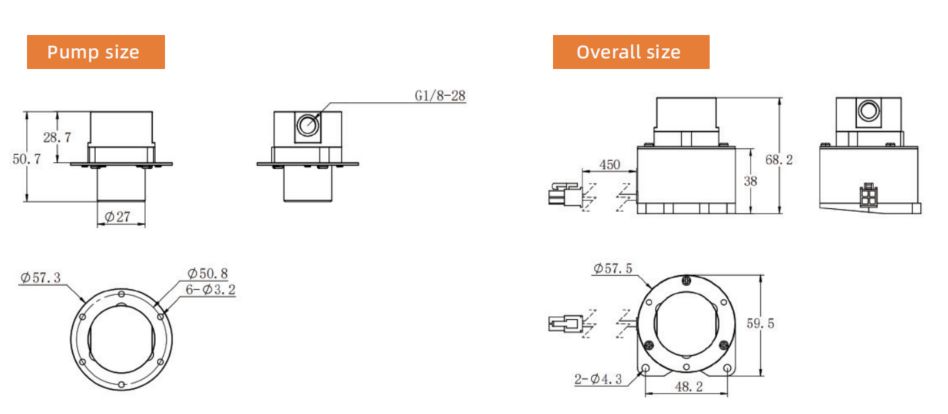

thread specifications:Standard configuration G1/8-28(customizable)
Compatible Drive:Brushless DC Motor, Stepper Motor, Servo Motor
Temperature resistance:-40 to 105 degrees Celsius
Shaft Material:Tungsten steel (principal axis), Porcelain(subshaft)
