Attributes
Steelmaterial
4number of jaws
0.05 mmAccuracy
130mmOverall Length
HLTNCbrand name
Zhejiang, Chinaplace of origin
model number:K12-130(4 jaws)
Chuck type:Lathe Chuck
customized support:OEM
power:Hydraulic
warranty:non

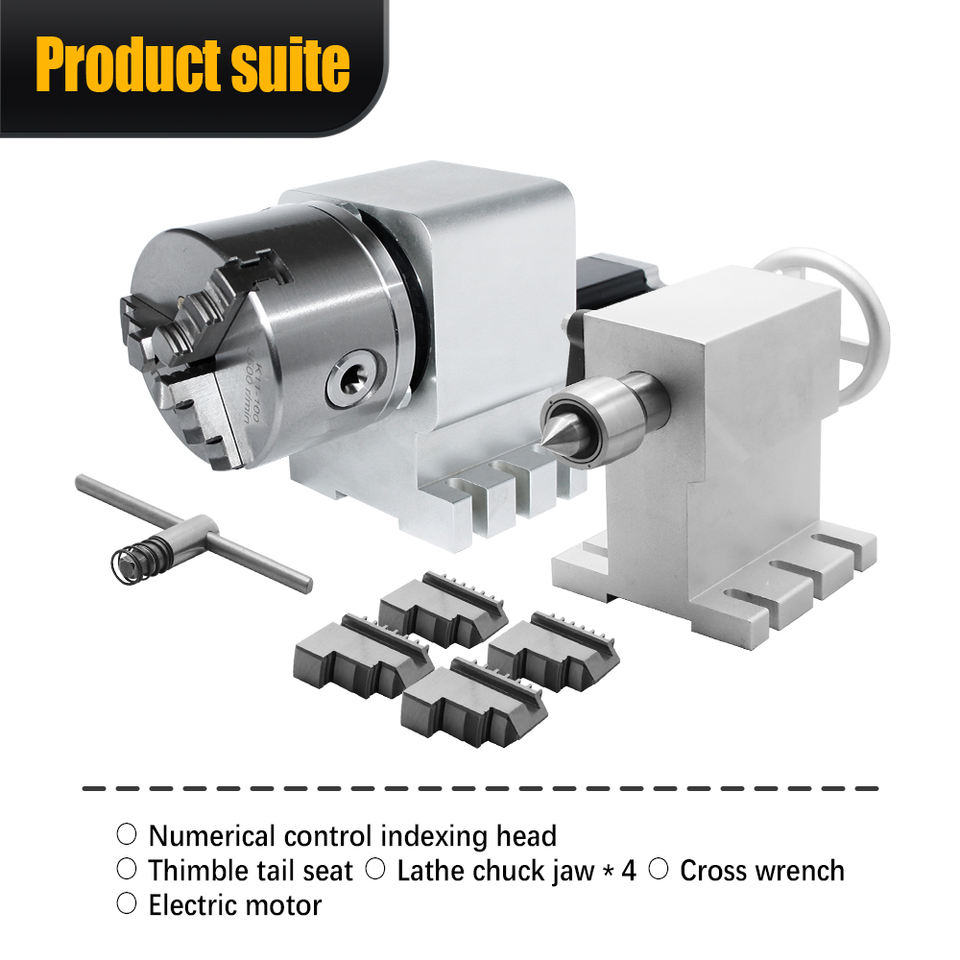

Product Name:CNC 4th Axis Rotary Set
Chuck diameter:130mm
Maximum speed(r/min):3000
Maximum input torque(N.m):100
Centering precision:0.05mm
Center height:100mm
Deceleratio ratio:10:1
Matched Motor model:nema23 open loop stepper motor,2nm
Base material:aluminum alloy
Angle:0.18 degree/step(10:1)
