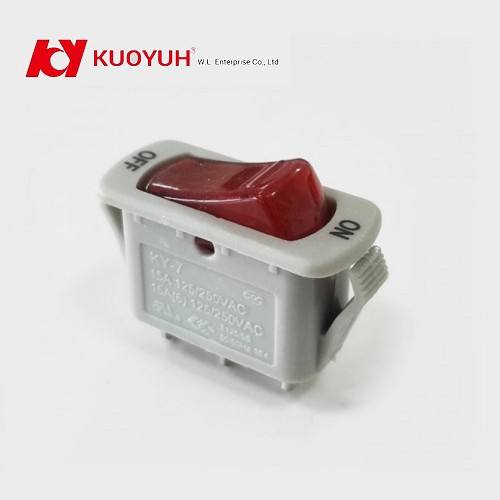

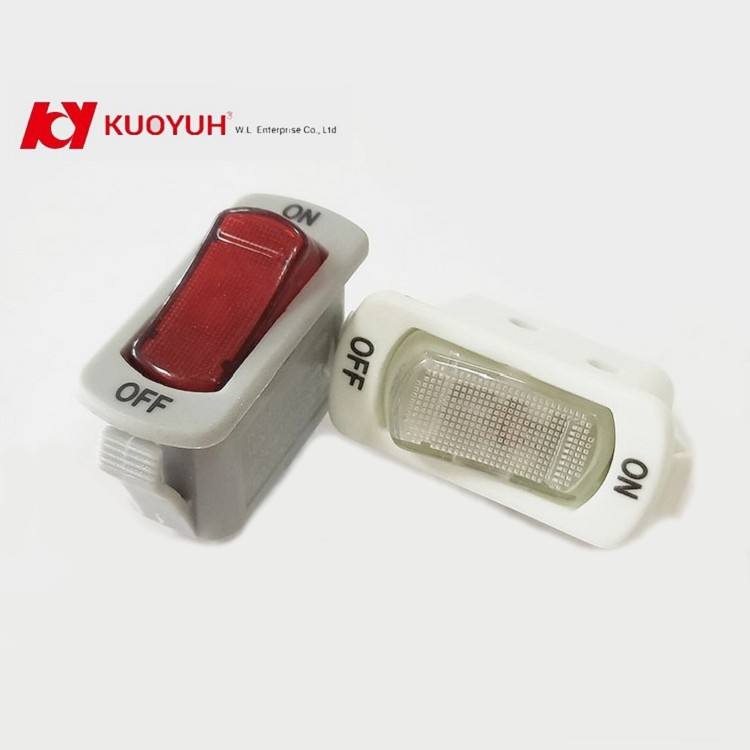

KUOYUH KY7 Series Single Pole Single Throw Rocker Switches 15A 125/250VAC T55 5.0mm terminal Color Rocker Markings

No reviews yet
KUOYUH W.L. ENTERPRISE CO., LTD.
4 yrs

Attributes

KUOYUHBrand Name
KY7Model Number
switch rockerType
Electrical equipmenD/C
Taiwan, ChinaPlace of Origin
Extension cableApplication
Supplier Type:Original Manufacturer
Media Available:Datasheet, Photo
Brand:KY7
Features:Following IEC61058-1 Standard, UL61058-1 Standard,
Mounting Feature:Snap-in
Size / Dimension:33*15*23.5
Color:Black/White/Grey Body Color
Material:NYLON
Operating Temperature:-20°C+125°C
Mounting Type:Snap-in
Switch Function:ON/OFF
Current Rating (Amps):15A
Voltage Rating - AC:125/250VAC
Voltage:110/220V
Voltage Rating:220V
Voltage - Switching AC:125/250VAC
Power - Rated:> 100MΩ.500VDC
Capacitance:50mΩ Max
display mode:1 Color, Passive Matrix
LED Color:White
Current - Switching:500mA (DC)
Rocker Color:Purple/Red/Green/Transparent/Yellow/Bule/Orange/Violet
Ratings:Current rating range : 20A 125/250VAC ; 16(6)A 125/250VAC
Electrical life:More than 10,000 times electrical life tests
Dielectric strength test:1500VAC/min

Key attributes

Brand Name
KUOYUH
Model Number
KY7
Type
switch rocker
D/C
Electrical equipmen
Place of Origin
Taiwan, China
Application
Extension cable
Supplier Type
Original Manufacturer
Media Available
Datasheet, Photo
Brand
KY7
Features
Following IEC61058-1 Standard, UL61058-1 Standard,
Mounting Feature
Snap-in
Size / Dimension
33*15*23.5
Color
Black/White/Grey Body Color
Material
NYLON
Operating Temperature
-20°C+125°C
Mounting Type
Snap-in
Switch Function
ON/OFF
Current Rating (Amps)
15A
Voltage Rating - AC
125/250VAC
Voltage
110/220V
Voltage Rating
220V
Voltage - Switching AC
125/250VAC
Power - Rated
> 100MΩ.500VDC
Capacitance
50mΩ Max
display mode
1 Color, Passive Matrix
LED Color
White
Current - Switching
500mA (DC)
Rocker Color
Purple/Red/Green/Transparent/Yellow/Bule/Orange/Violet
Ratings
Current rating range : 20A 125/250VAC ; 16(6)A 125/250VAC
Electrical life
More than 10,000 times electrical life tests
Dielectric strength test
1500VAC/min

Packaging and delivery

Selling Units
Single item
Single package size
33X15X23.5 cm
Single gross weight
0.003 kg
