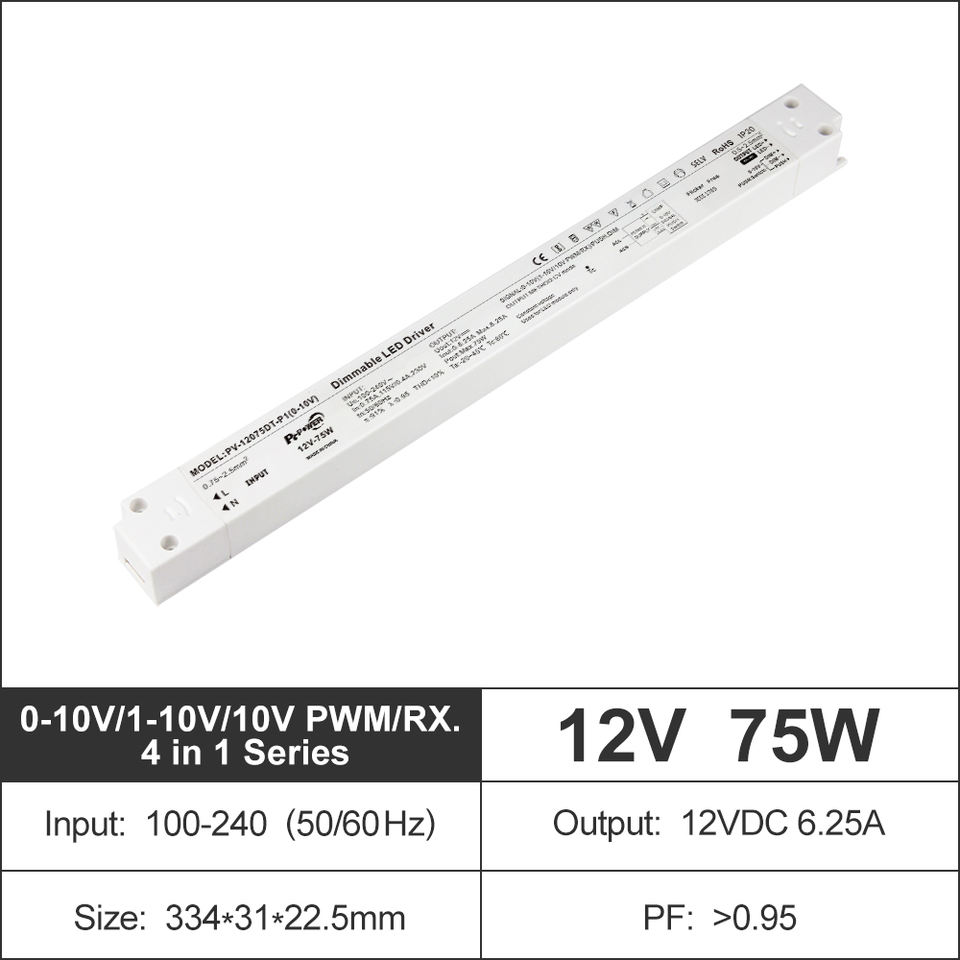

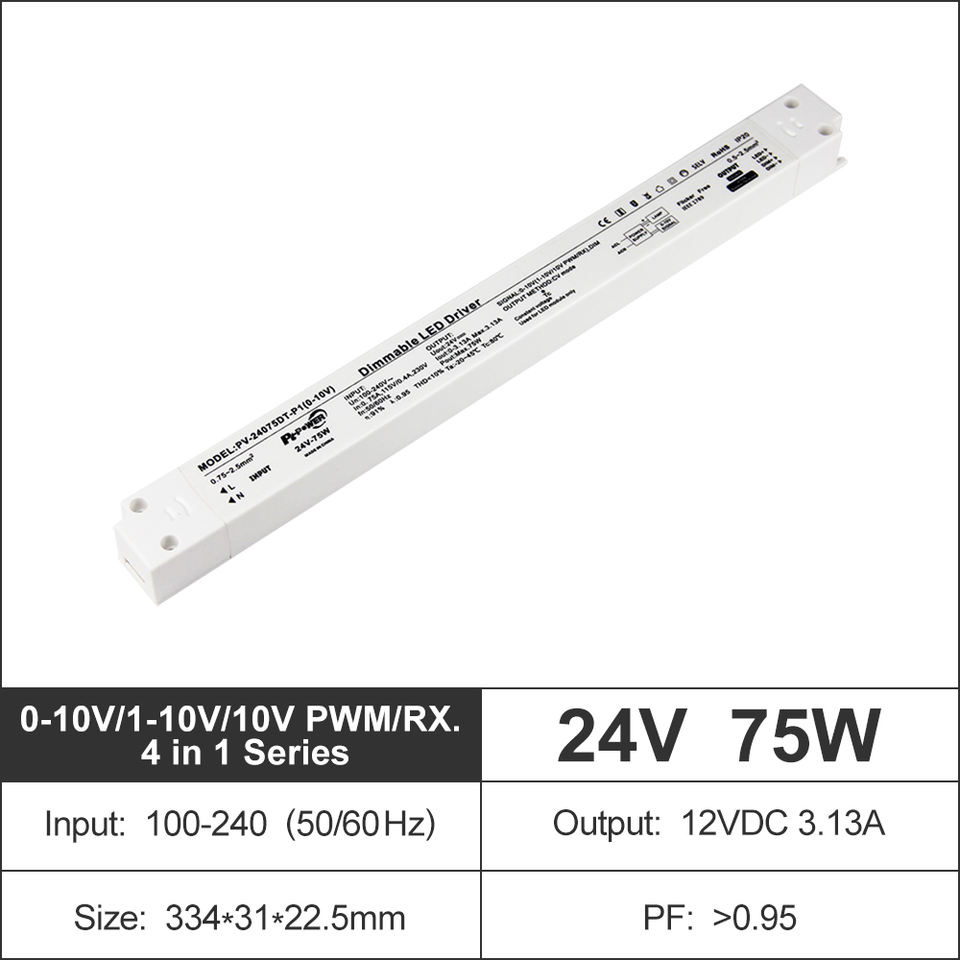

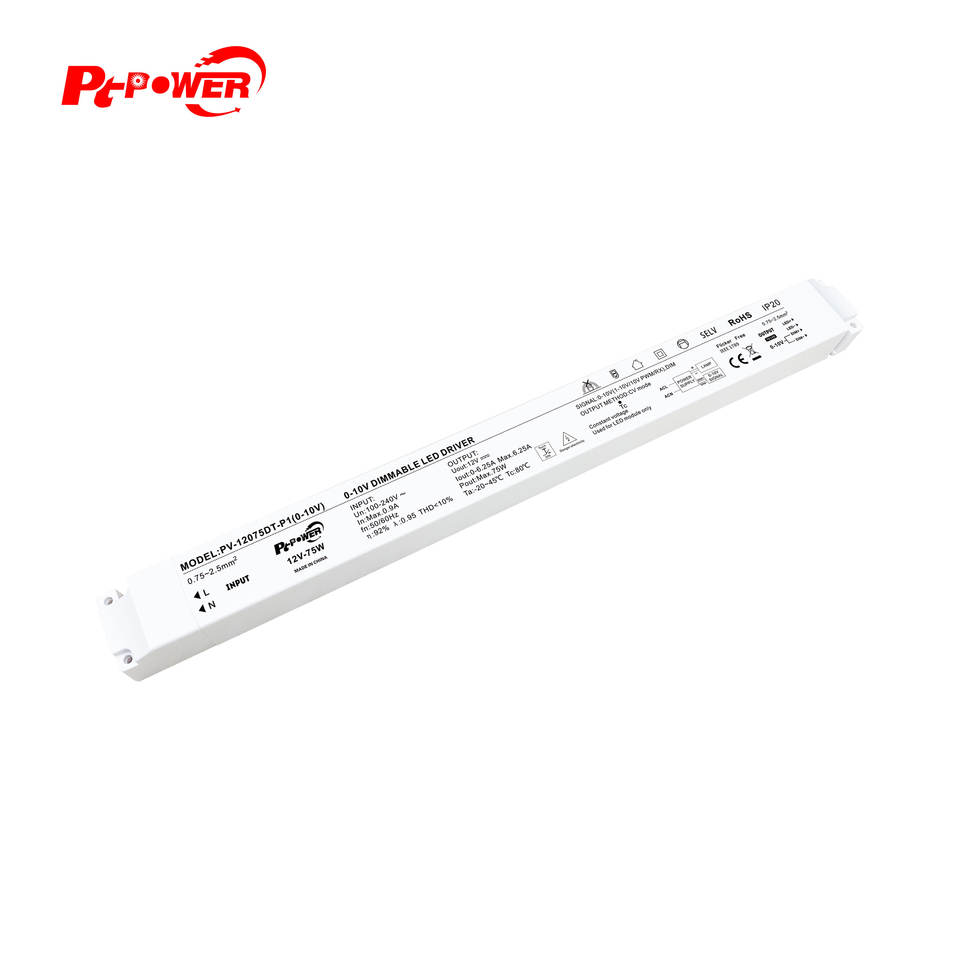

CE/RoHS IP20 Indoor 75W Constant Voltage 0-10V/1-10V/10V PWM/Rx Dimmable LED Strip Driver 100-240VAC-DC 12V 24V LED Power Supply
No reviews yet
Attributes
Led Lighting, Indoor LightingApplication
100-240VInput Voltage
75WOutput Power
0-3.125A/0-6.25AOutput Current
IP20 Non-waterproofType
AC-DCEnergy Transfer
Output Type:Single
Dimming Mode:0-10V/1-10V/10V PWM/Rx Dimming
Dimming:0-10V 4 in 1 Dimmable
Efficiency:92%
Topology:Ac-Dc Converter
Case Material:Plastic
Warranty(Year):5-Year
Lighting solutions service:Project Installation, Lighting And Circuitry Design, Other
Place of Origin:Guangdong, China
Model Number:PV-12075DT-P1(0-10V)/PV-24075DT-P1(0-10V)
Brand Name:Pt POWER
Output Frequency:50~60Hz
Product Weight（kg）:0.28
Type:Constant Voltage 0-10V 4 in 1 Dimmable LED Driver
IP Rate:IP20 Indoor Non-waterproof
Certification:CE/UKCA/SAA/RoHS
Power Factor:PF>0.95
OEM:Yes
ODM:Yes

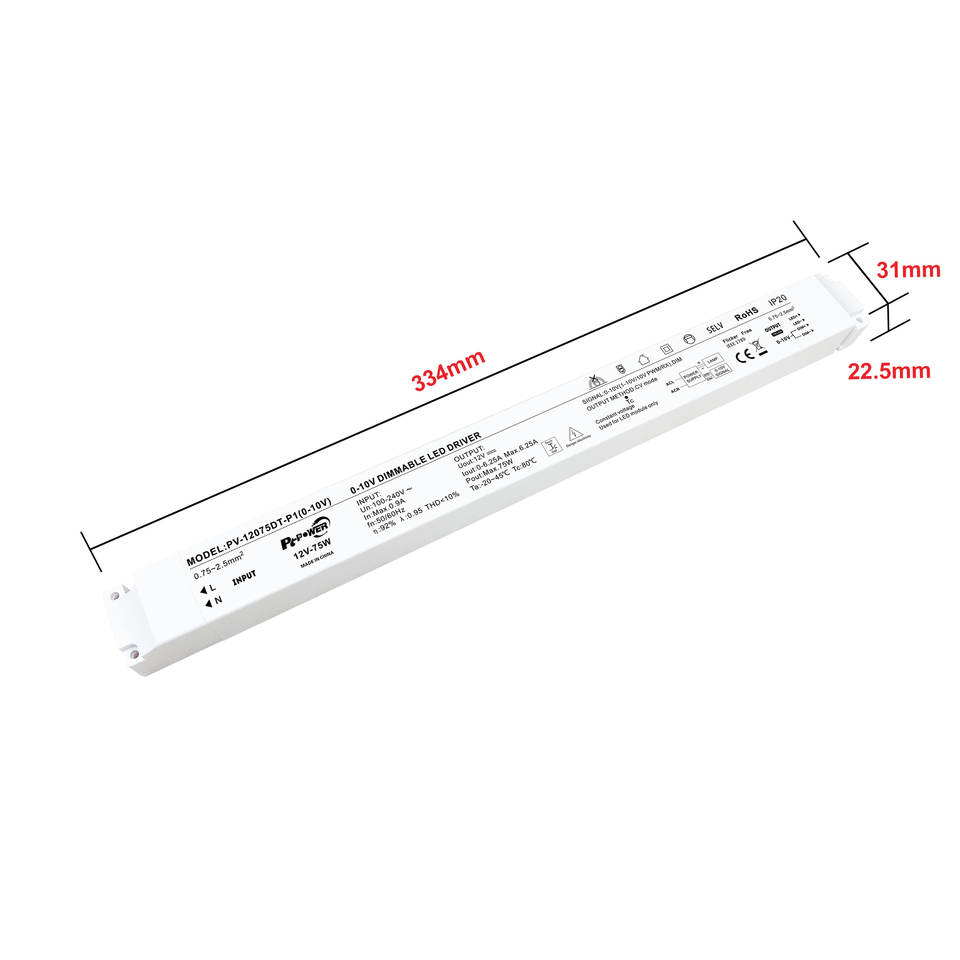

Size:334*31*22.5mm(L*W*H)
Standby power consumption:<0.5W
Working temperature:-25°C~+45°C
Feature:Flicker Free 0-100% Dimming
EMC Standard:EN55015,EN61000-3-2,EN61000-3-3
Safety standard:EN61347-1,EN61347-2-13
Key attributes
Application
Led Lighting, Indoor Lighting
Input Voltage
100-240V
Output Power
75W
Output Current
0-3.125A/0-6.25A
Type
IP20 Non-waterproof
Energy Transfer
AC-DC
Output Type
Single
Dimming Mode
0-10V/1-10V/10V PWM/Rx Dimming
Dimming
0-10V 4 in 1 Dimmable
Efficiency
92%
Topology
Ac-Dc Converter
Case Material
Plastic
Warranty(Year)
5-Year
Lighting solutions service
Project Installation, Lighting And Circuitry Design, Other
Place of Origin
Guangdong, China
Model Number
PV-12075DT-P1(0-10V)/PV-24075DT-P1(0-10V)
Brand Name
Pt POWER
Output Frequency
50~60Hz
Product Weight（kg）
0.28
Type
Constant Voltage 0-10V 4 in 1 Dimmable LED Driver
IP Rate
IP20 Indoor Non-waterproof
Certification
CE/UKCA/SAA/RoHS
Power Factor
PF>0.95
OEM
Yes
ODM
Yes
Size
334*31*22.5mm(L*W*H)
Standby power consumption
<0.5W
Working temperature
-25°C~+45°C
Feature
Flicker Free 0-100% Dimming
EMC Standard
EN55015,EN61000-3-2,EN61000-3-3
Safety standard
EN61347-1,EN61347-2-13
Packaging and delivery
Selling Units
Single item
Lead time
Customization options
Customized logo(+ from /Min. order: 500 pieces)
Customized packaging(+ from /Min. order: 500 pieces)
Graphic customization(+ from /Min. order: 500 pieces)
View details
Product descriptions from the supplier
2 - 99 pieces
£1087
100 - 499 pieces
£1050
≥ 500 pieces
£975
Variations
Select nowInput Voltage(V): 100-240VAC
100-240VAC
Lamp Power(W): 75W
75W
Output Voltage
12 V
24 V
Customization options
Customized logo (Min. order: 500 pieces)
Customized packaging (Min. order: 500 pieces)
Graphic customization (Min. order: 500 pieces)
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
