Attributes
ARKNAVBrand Name
AR-186Model Number

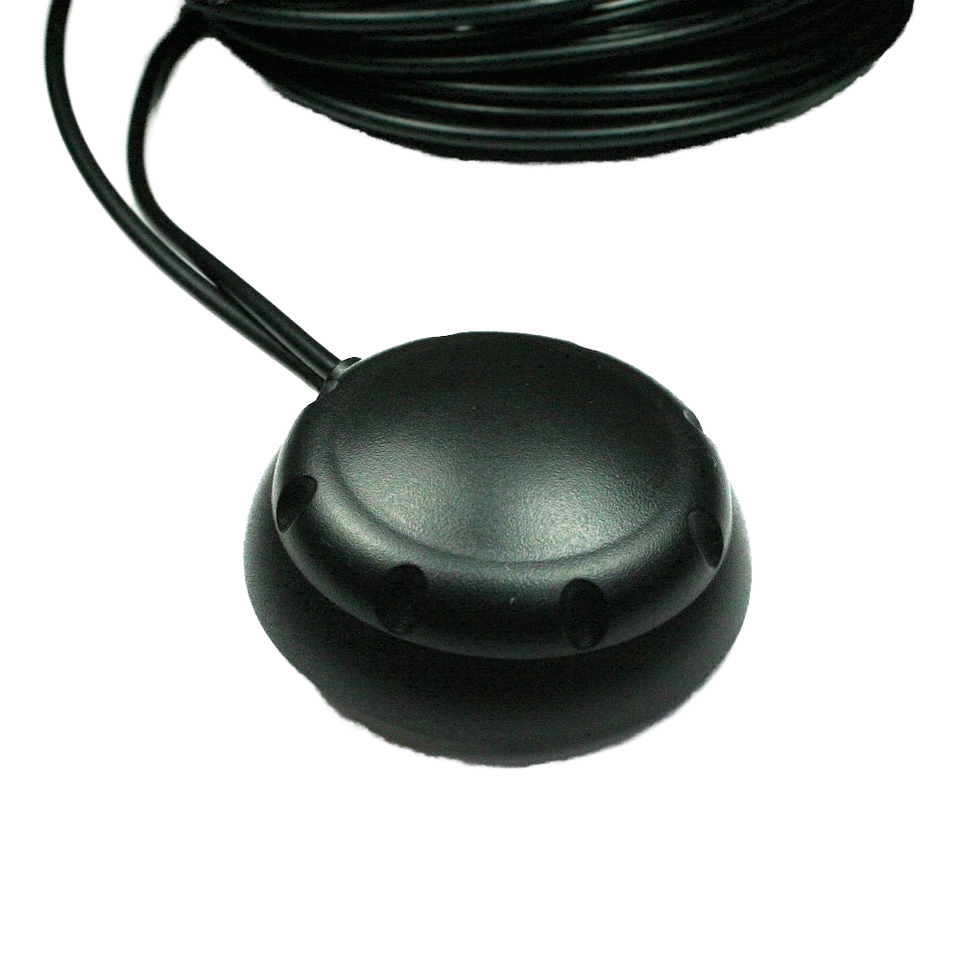

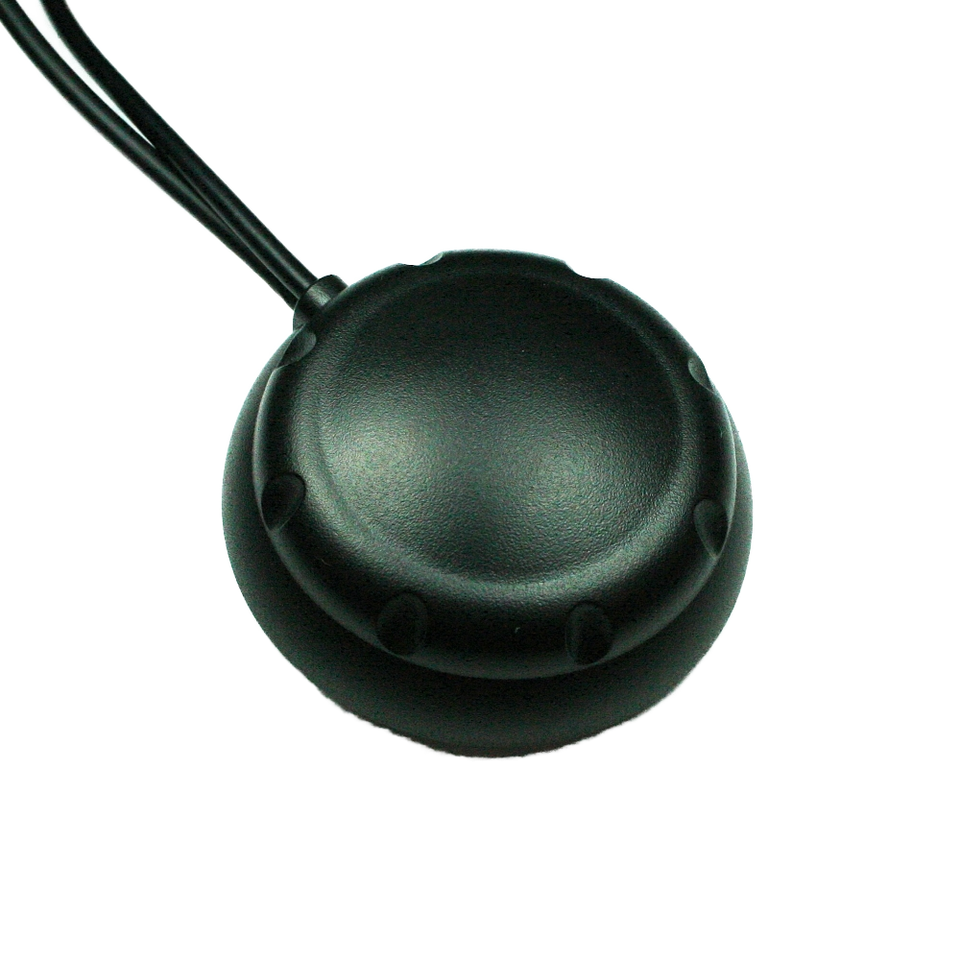

GPS/GNSS AntennaType
Taiwan, ChinaPlace of Origin
28 ± 1 dB (3m cable)Gain
GNSS: Right-hand circular (R.H.C.), LTE: Linear and verticalPolarization
V.S.W.R:<2.0
Impedance:50Ω typical
Noise Figure:1.0 typical
Voltage:2.8V to 5V DC

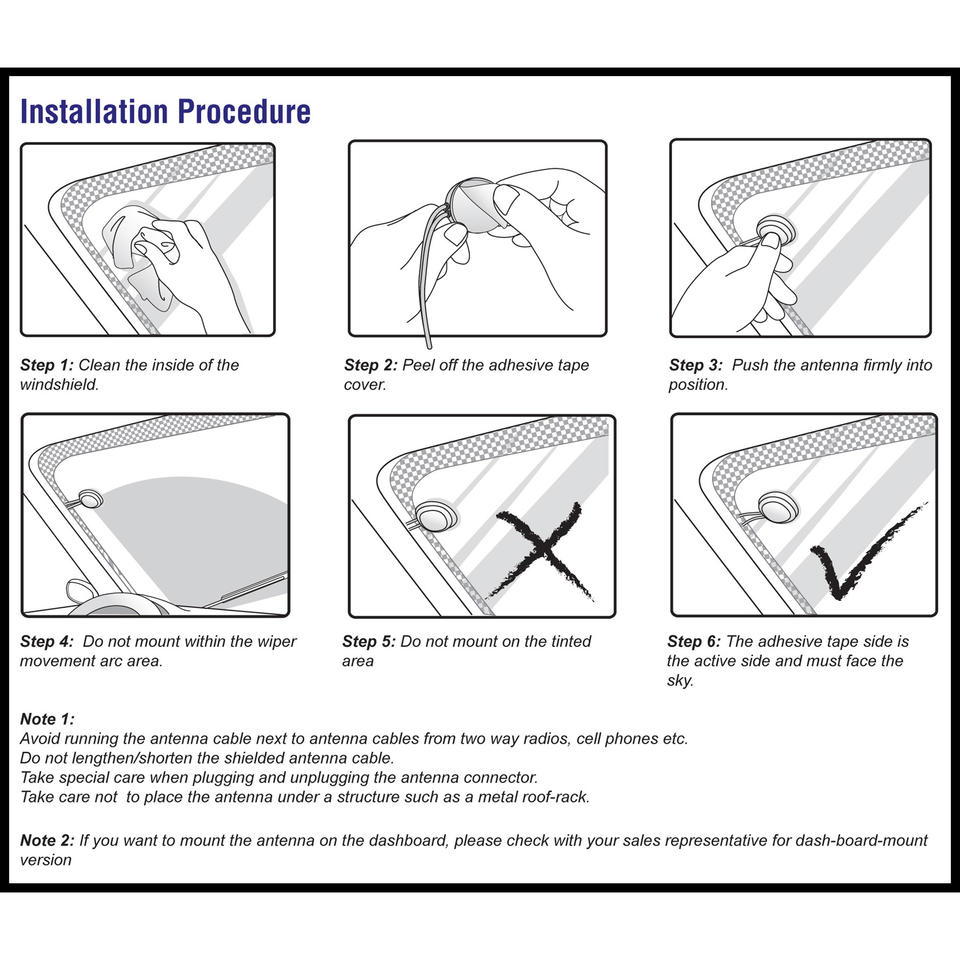

Mounting Method:3M adhesive sticker
LTE Frequency:824~960 MHz, 1710~2170 MHz, 2700 MHz
GNSS Frequency:1575.42MHz ± 10 MHz, 1602 MHz ± 5 MHz
Feature:3 signal noise filters, 2-stage LNA, 10 watt RF suppression protection
Selling Units:Single item
Single package size:19X15X2 cm
Single gross weight:0.130 kg
