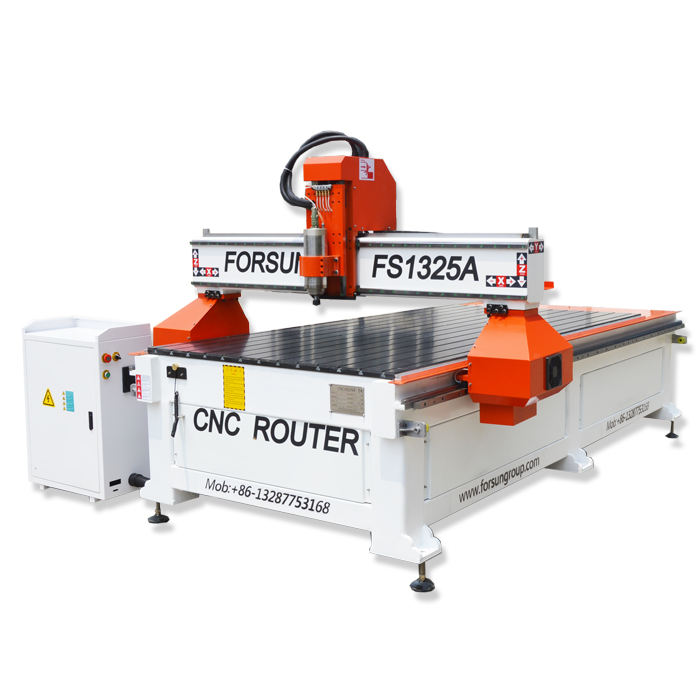

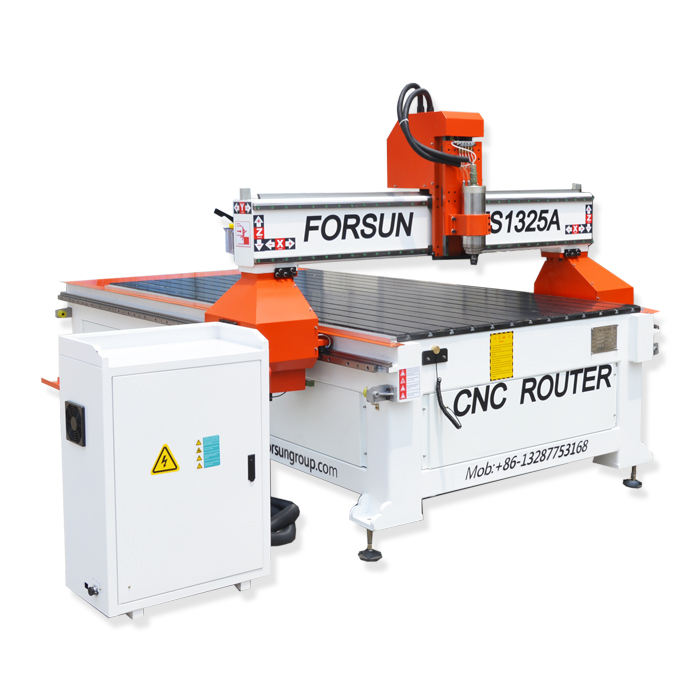

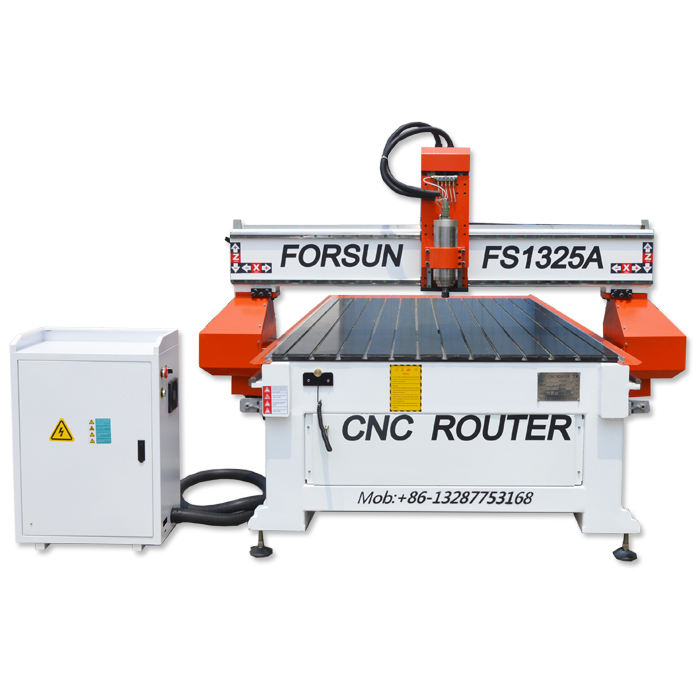

Low Price CNC Router Woodworking Machine 1325 1530 2040 Cnc Wood Router for Mdf Cutting Wooden
No reviews yet
Attributes
3number of axes
AC380V/50HZvoltage
CNC Routermachine type
SingleNo. of Spindles
Eco-Friendlykey selling points
Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearboxcore components
warranty:1.5 Years
cnc or not:CNC
video outgoing-inspection:Provided
machinery test report:Provided
place of origin:Shandong, China
weight (kg):1800
range of spindle speed(r.p.m):1 - 24000
positioning accuracy (mm):0.03
travel (x axis)(mm):1300
travel (y axis)(mm):2500
repeatability (x/y/z) (mm):0.03
brand name:Beta
dimension(l*w*h):3700*2200*1850mm
Item:wood cnc router

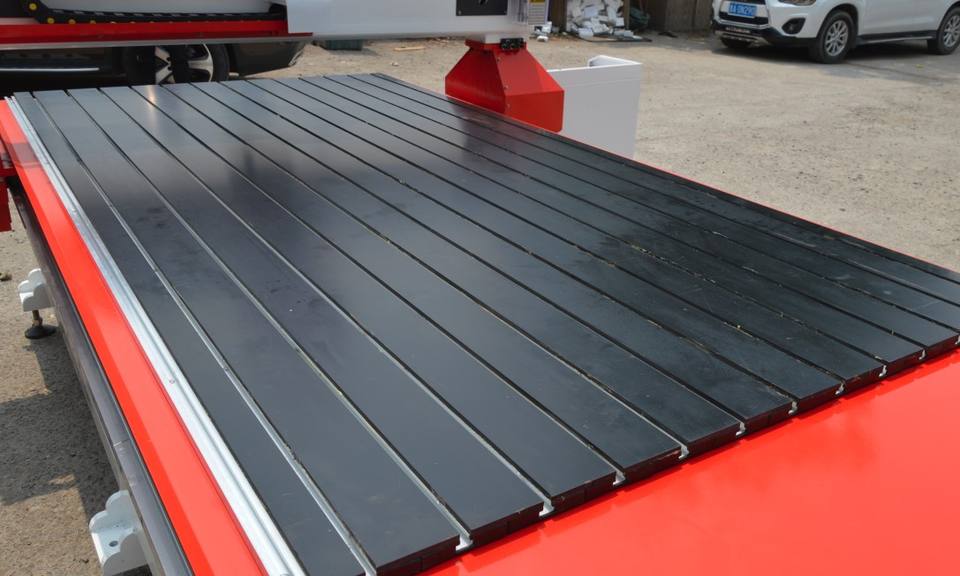

working table size:1300*2500mm
Spindle:3.5kw Air Cooling Spindle
inverter:Delta inverter
Transmission in X, Y axis:Helical Rack and opinion
Z axis transmission:25 Taiwan TBI Ball Screw
Guide rail:Taiwan HIWIN Linear Guide Rail
motor and driver:Stepper motor and driver
Control system:DSP controller
Custom made:YES
Key attributes
number of axes
3
voltage
AC380V/50HZ
machine type
CNC Router
No. of Spindles
Single
key selling points
Eco-Friendly
core components
Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox
warranty
1.5 Years
cnc or not
CNC
video outgoing-inspection
Provided
machinery test report
Provided
place of origin
Shandong, China
weight (kg)
1800
range of spindle speed(r.p.m)
1 - 24000
positioning accuracy (mm)
0.03
travel (x axis)(mm)
1300
travel (y axis)(mm)
2500
repeatability (x/y/z) (mm)
0.03
brand name
Beta
dimension(l*w*h)
3700*2200*1850mm
Item
wood cnc router
working table size
1300*2500mm
Spindle
3.5kw Air Cooling Spindle
inverter
Delta inverter
Transmission in X, Y axis
Helical Rack and opinion
Z axis transmission
25 Taiwan TBI Ball Screw
Guide rail
Taiwan HIWIN Linear Guide Rail
motor and driver
Stepper motor and driver
Control system
DSP controller
Custom made
YES
Packaging and delivery
Selling Units
Single item
Single package size
350X200X180 cm
Single gross weight
64.000 kg
Lead time
Product descriptions from the supplier
Warning/Disclaimer
California Proposition 65 Consumer WarningView more
Minimum order quantity: 10 sets
£74781
Variations
Select nowWorking Table Size(mm): 1300×2500
1300×2500
model number: BT1325A
BT1325A
Power (kW)
4 kW
