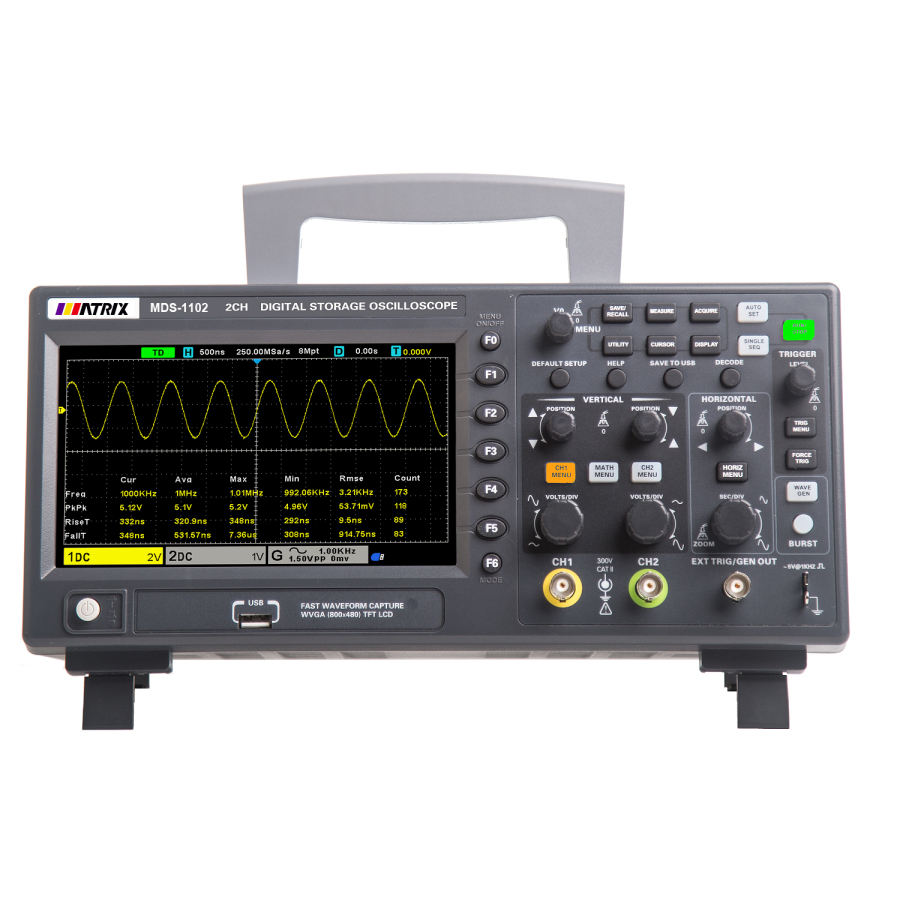

MATRIX MDS-1102 2-Channel 100MHz 1GSa/s Digital Storage Oscilloscope Professional-Grade Measurement Solution
No reviews yet
Attributes
1GS/sSample rate
Digitaltype
Guangdong, Chinaplace of origin
8 BitResolution (Bits)
301*152*70mmsize
MDS-1102model number
brand name:MATRIX
customized support:OEM, ODM
warranty:1 Year
Model:MDS-1102
Bandwidth:100 MHz
Channels:2 CH
Sample Rate:1 GSa/s (single channel); 500 MSa/s (two channels)
Memory Depth (Max Record Length):8M (single channel); 4M (two channels)
Input Coupling:DC / AC / GND
Input Impedance:1 MΩ ±2% 13 pF ±3 pF
Maximum Input Voltage:300 VRMS (10X)
Horizontal Timebase Range:2 ns/div to 100 s/div (1,2,5 steps)
Vertical Gain Accuracy:±3% (10 V/div to 10 mV/div, Normal/Average mode)
Key attributes
Sample rate
1GS/s
type
Digital
place of origin
Guangdong, China
Resolution (Bits)
8 Bit
size
301*152*70mm
model number
MDS-1102
brand name
MATRIX
customized support
OEM, ODM
warranty
1 Year
Model
MDS-1102
Bandwidth
100 MHz
Channels
2 CH
Sample Rate
1 GSa/s (single channel); 500 MSa/s (two channels)
Memory Depth (Max Record Length)
8M (single channel); 4M (two channels)
Input Coupling
DC / AC / GND
Input Impedance
1 MΩ ±2% 13 pF ±3 pF
Maximum Input Voltage
300 VRMS (10X)
Horizontal Timebase Range
2 ns/div to 100 s/div (1,2,5 steps)
Vertical Gain Accuracy
±3% (10 V/div to 10 mV/div, Normal/Average mode)
Packaging and delivery
Selling Units
Single item
Single package size
20X50X30 cm
Single gross weight
4.000 kg
Lead time
