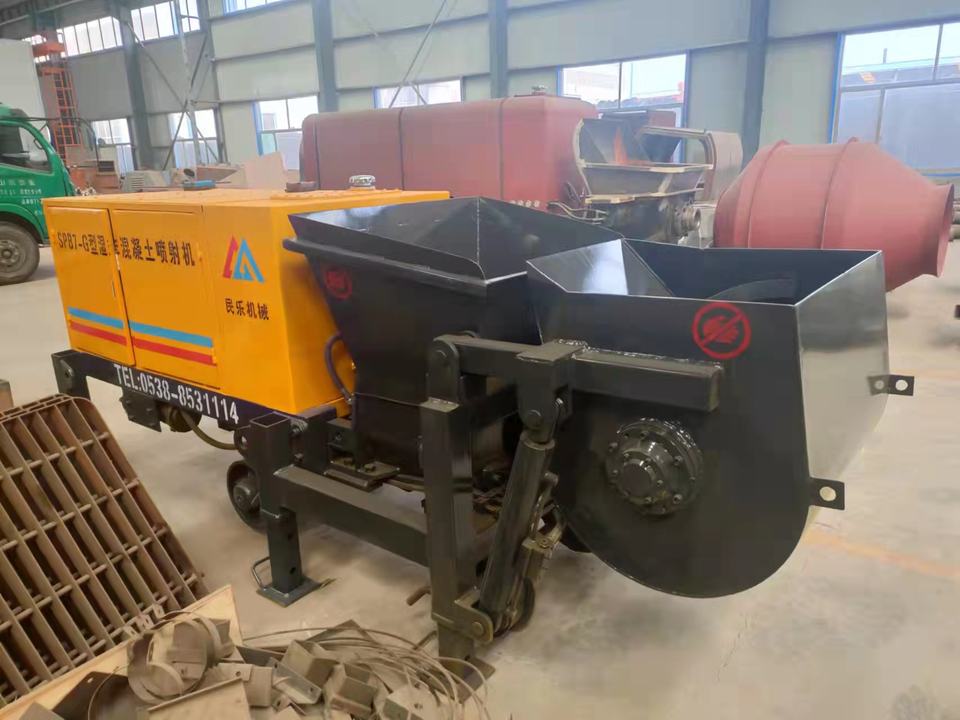

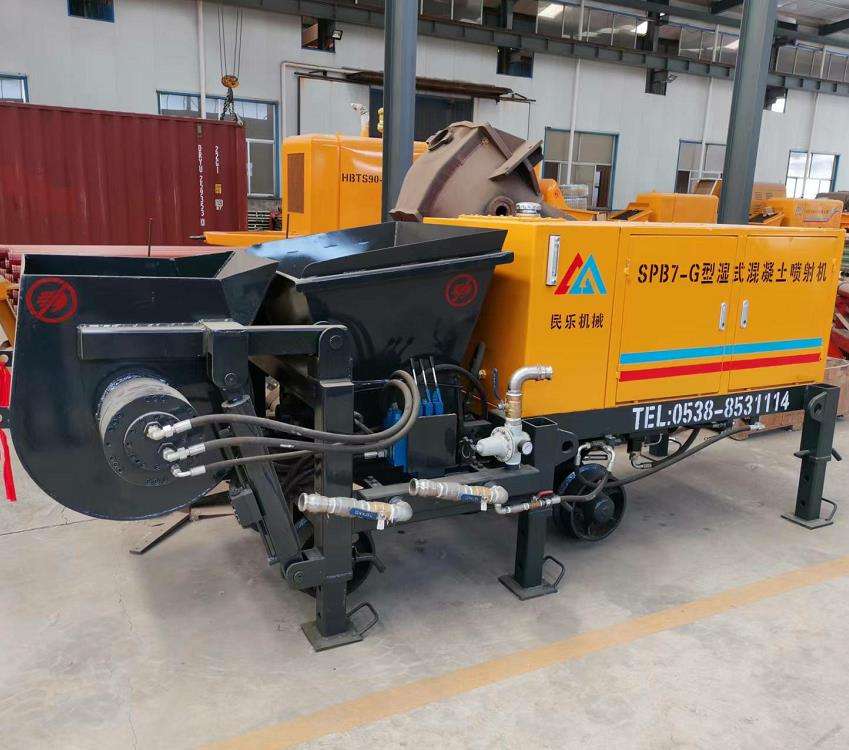

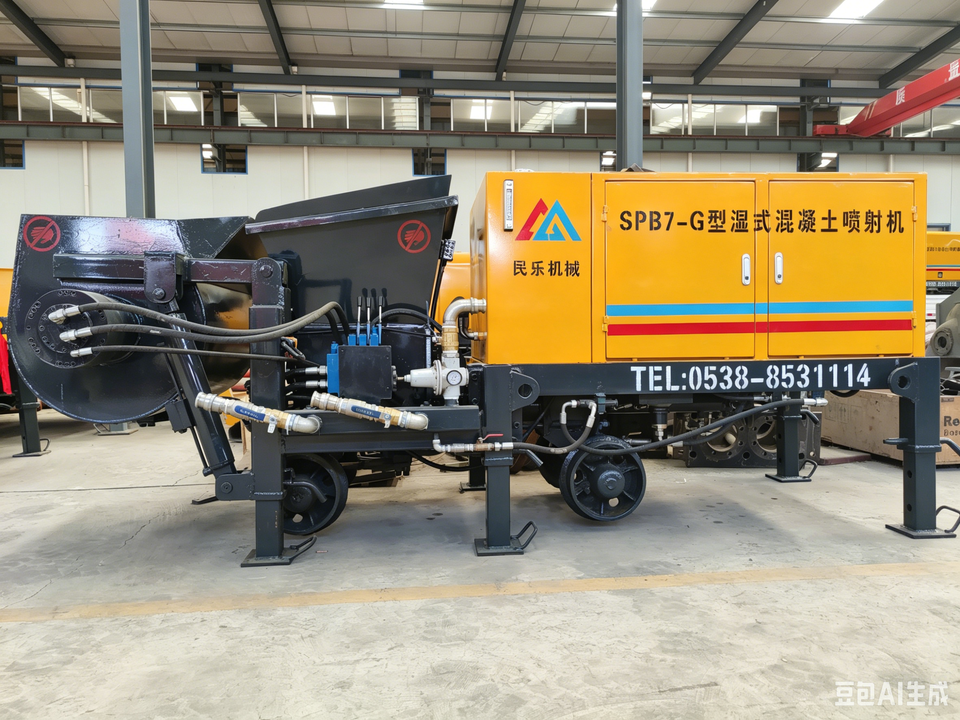

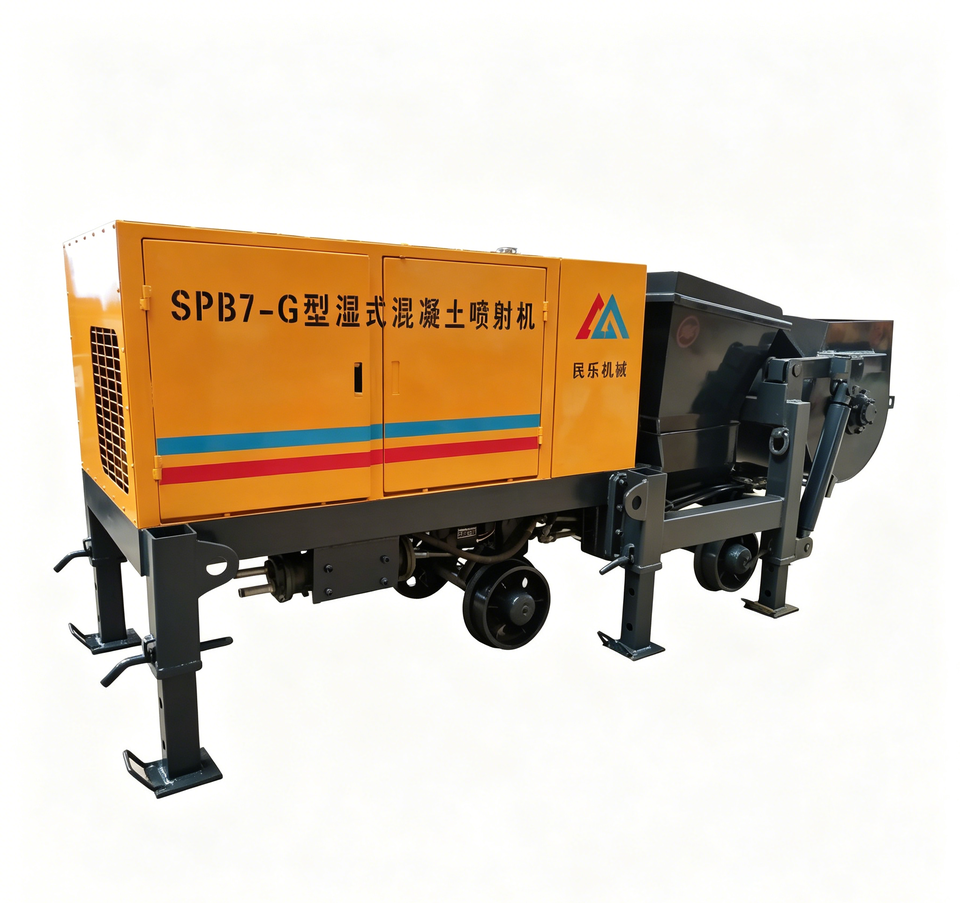

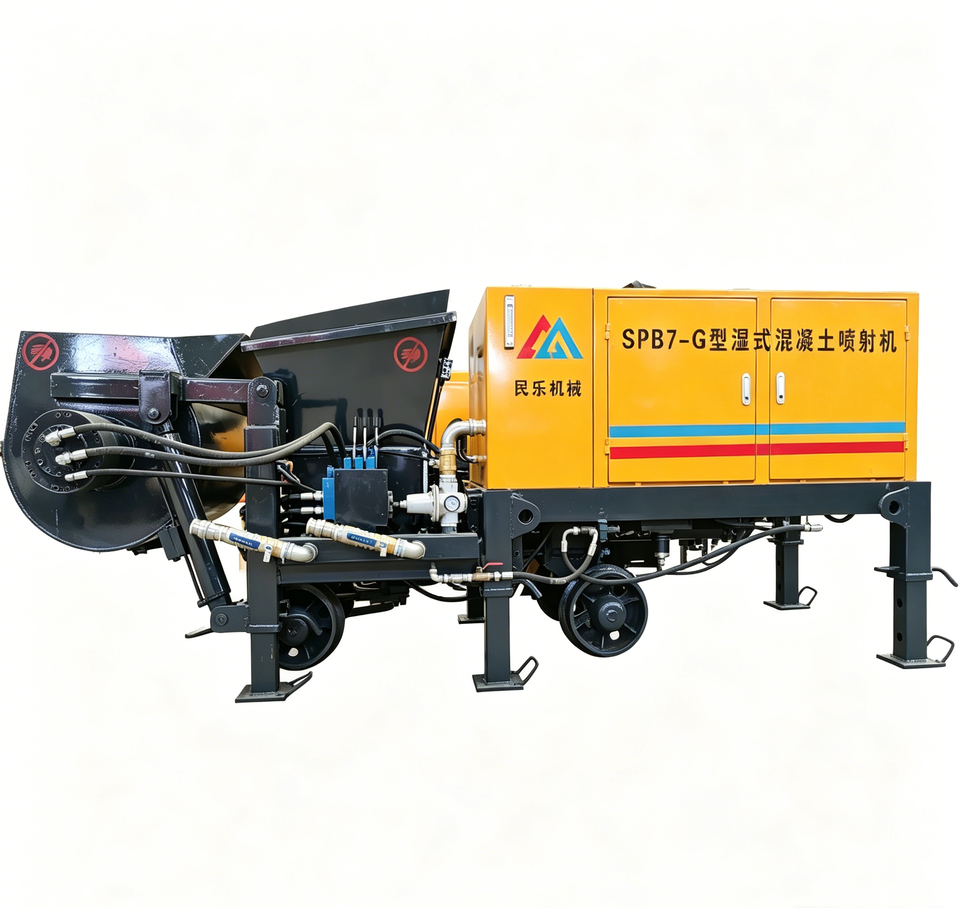

MINLE SPB Electric Wet Shotcrete Machine 8m³/h 30kW S-tube Pump Low Rebound for Tunnel Mine Subway Slope Support Construction

No reviews yet
£6,02930
1-2 units
£5,65247
≥3 units
Select now

Model Number

SPB8
SPB7

Working Capacity (m³/h)

8(adjustable range 3-8)(m³/h)
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization

Key attributes

Max Aggregate Size

Gravel≤10 mm; Pebble≤15 mm

Hose Inner Diameter

64 mm

Air Consumption

≥13 (m³/min)

Brand Name

MINLE

Power(W)

42000

Core Components

Engine

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Finance Service

4 interest-free payments with

Service

On-site service & free replacement parts
On-site service & free replacement parts

Key attributes

Max Aggregate Size
Gravel≤10 mm; Pebble≤15 mm
Hose Inner Diameter
64 mm
Air Consumption
≥13 (m³/min)
Brand Name
MINLE
Power(W)
42000
Core Components
Engine
Place of Origin
Shandong, China
Weight
2400 kg
Warranty
1 Year
UNIQUE SELLING POINT
Hydraulic transmission system
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Voltage
380 V
Dimension(L*W*H)
4660*1510*1890 mm
Maximum delivery pressure (Mpa)
7.8 Mpa
Theoretical delivery height (m)
30m
horizontal conveying distance
80m
Hopper volume
400 (L)
Engine
YUCHAI , 42 KW
Pumping system pressure
26 (Mpa)
Hydraulic oil tank volume
200 (L)
Slump
120-180 (mm)
