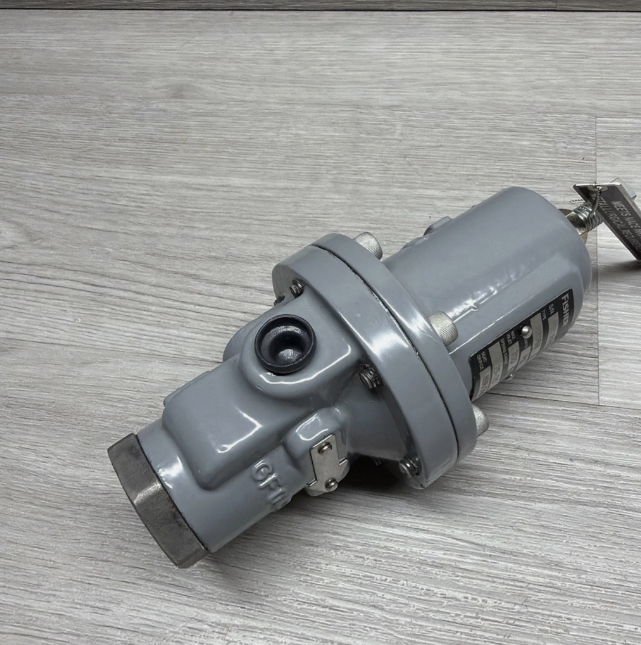

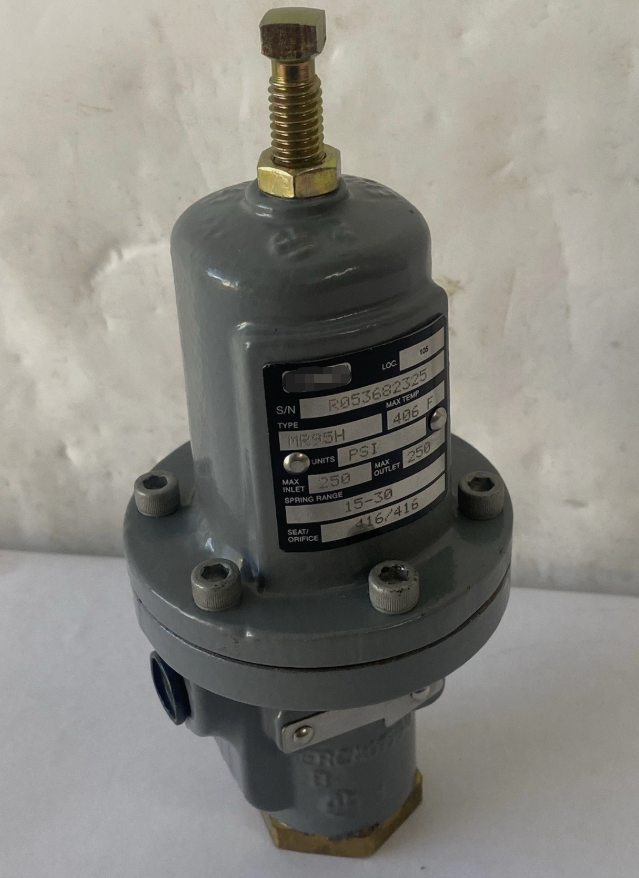

MR98HT MR98HH MR98HDP High Temperature Backpressure Regulator Metal Seat Relief for High-temperature

No reviews yet
£73571
Minimum order quantity: 1 piece
material
size

Key attributes

application

Petrochemical industry, natural gas transportation

power

No external power supply required

structure

Direct acting diaphragm self-operated

temperature of media

-196c ~ 343c, -60℃~232℃

customized support

Customizable pressure range, valve body material

port size

1/4"NPT, 1/2"NPT, 3/4"NPT, 1"NPT, 1.5"NPT, 2"NPT, ANSI C, ANSI CL150/CL300 flange

Shipping
Select shipping

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Payment & financing

Buy now, pay later

Key attributes

application
Petrochemical industry, natural gas transportation
power
No external power supply required
structure
Direct acting diaphragm self-operated
temperature of media
-196c ~ 343c, -60℃~232℃
customized support
Customizable pressure range, valve body material
port size
1/4"NPT, 1/2"NPT, 3/4"NPT, 1"NPT, 1.5"NPT, 2"NPT, ANSI C, ANSI CL150/CL300 flange
place of origin
USA
model number
MR98 Series (MR98L,MR98H,MR98HH,MR98LD,MR98HD,MR98
brand name
/
Height
Not fixed, determined by specific caliber and pres
media
Steam, compressed air, natural gas, nitrogen...
Outlet Connection Size
Consistent with inlet size:1/4"NPT~2"NPT, ANSI CL1
warranty
1 year
Backpressure Constructions
MR98L: 2 to 38 psig / 0.14 to 2.6 bar set pressure range
Pressure Differential Constructions
max differential 150 psi / 10.3 bar
High Pressure Differential Constructions
MR98HDP: 15 to 200 psi / 1.0 to 13.8 bar set pressure range
Body and Spring Case Materials
Gray Cast Iron WCC Steel LCC Steel Stainless Steel...
Body Size and End Connection Styles
1/4-inch 1/2-inch / DN 15 3/4 and 1-inch / DN 20 and 25..
End Connection Styles
NPT, SWE, and Welded and Integral CL150 RF...
Maximum Inlet Pressure
600 psig / 41.4 bar
Maximum Outlet Pressure
400 psig / 27.6 bar
Pressure Registration
Internal or External
Approximate Weights
2.3 kg-10kg
