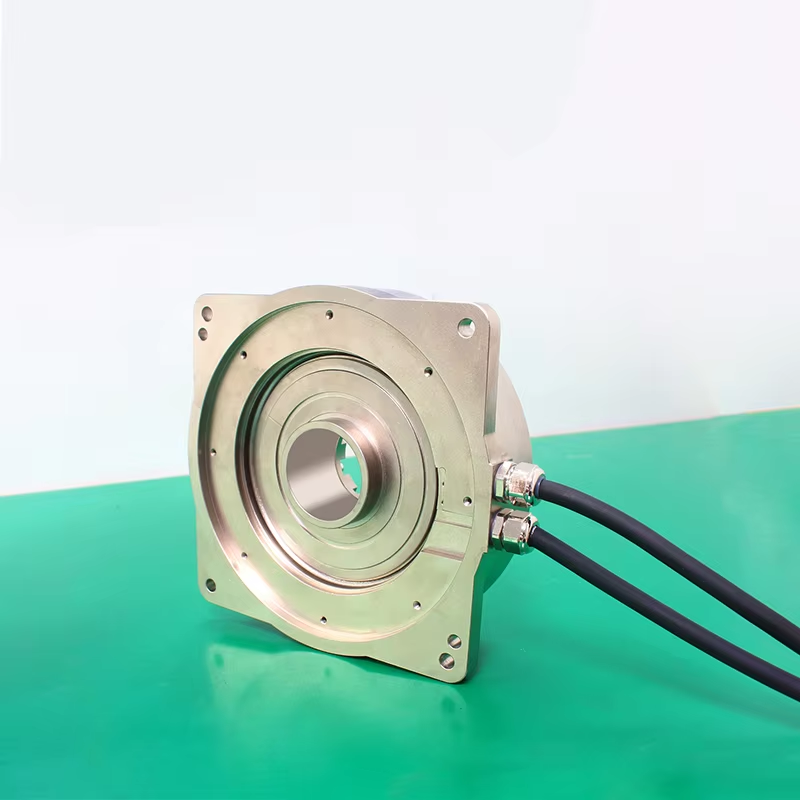

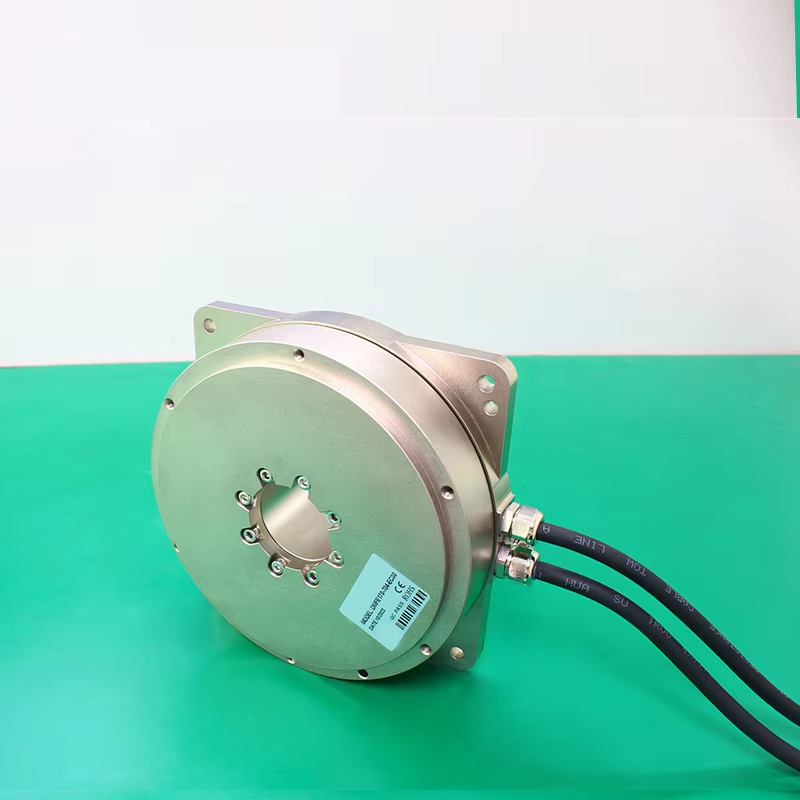

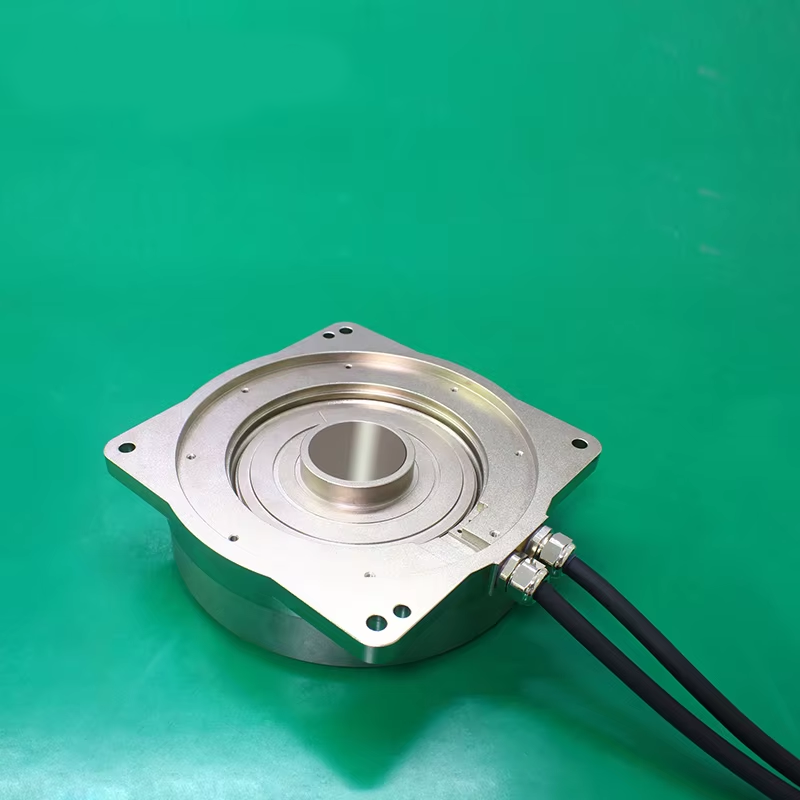

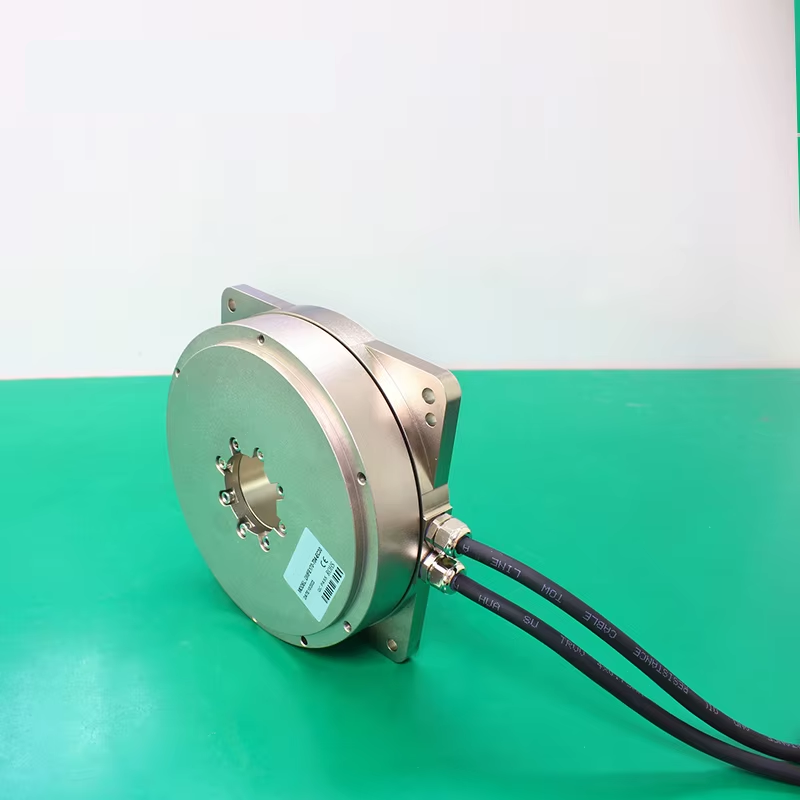

Maintenance Free High Precision High Torque Brushless CNC Robotic Joint Motor for Robotic Arm Direct Drive Motor
No reviews yet
Hanhai International (HK) Technology Limited
HK1 yr on Alibaba.com
4.6/5.0(15 reviews)Reorder rate: 14%Response Time ≤ 1hOn-time delivery rate ≥ 100%
Attributes
BrushlessCommutation
otherRated voltage
otherRated Power
OTHERSpeed Rpm
6000Speed(RPM)
OTHERIP Rating
Efficiency:IE 4
Type:DD Motor
Construction:Permanent Magnet
Frame:no
Motor Mounting Type:Foot Mount
Protect Feature:Totally Enclosed
Usage:Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home, Medical machinery
Warranty:Other
Continuous Current(A):custom
Model Number:FI-12064
Torque:9
Place of Origin:China
Brand Name:OTHER
Voltage:48V DC
Rated Output*1 (W):496.752/576.924w
Rated torque*1 (Nm):0.89/2.06Nm
Instant Max Torque*1 (Nm):4/9Nm
Rated Current*1 (Arms):12/24Arms
Instant Max Current*1 (Arms):36/72Arms
Max Speed*1 (Rpm):5000Rpm
Torque Parameter (Nm/Arms):0.131666/0.152916Nm/Arm
Resistance ():0.08/0.15
Inductance (mH):0.32/0.35mH
Key attributes
Commutation
Brushless
Rated voltage
other
Rated Power
other
Speed Rpm
OTHER
Speed(RPM)
6000
IP Rating
OTHER
Efficiency
IE 4
Type
DD Motor
Construction
Permanent Magnet
Frame
no
Motor Mounting Type
Foot Mount
Protect Feature
Totally Enclosed
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home, Medical machinery
Warranty
Other
Continuous Current(A)
custom
Model Number
FI-12064
Torque
9
Brand Name
OTHER
Place of Origin
China
Voltage
48V DC
Rated Output*1 (W)
496.752/576.924w
Rated torque*1 (Nm)
0.89/2.06Nm
Instant Max Torque*1 (Nm)
4/9Nm
Rated Current*1 (Arms)
12/24Arms
Instant Max Current*1 (Arms)
36/72Arms
Max Speed*1 (Rpm)
5000Rpm
Torque Parameter (Nm/Arms)
0.131666/0.152916Nm/Arm
Resistance ()
0.08/0.15
Inductance (mH)
0.32/0.35mH
Packaging and delivery
Selling Units
Single item
Package size per batch
71X40X32 cm
Gross weight per batch
30.000 kg
Lead time
Customization options
custom packaging(+ from /Min. order: 2,000 pieces)
View details
Product descriptions from the supplier
2 - 299 pieces
£11936
>= 300 pieces
£9256
