Attributes
220V Electrical Equipmentvoltage

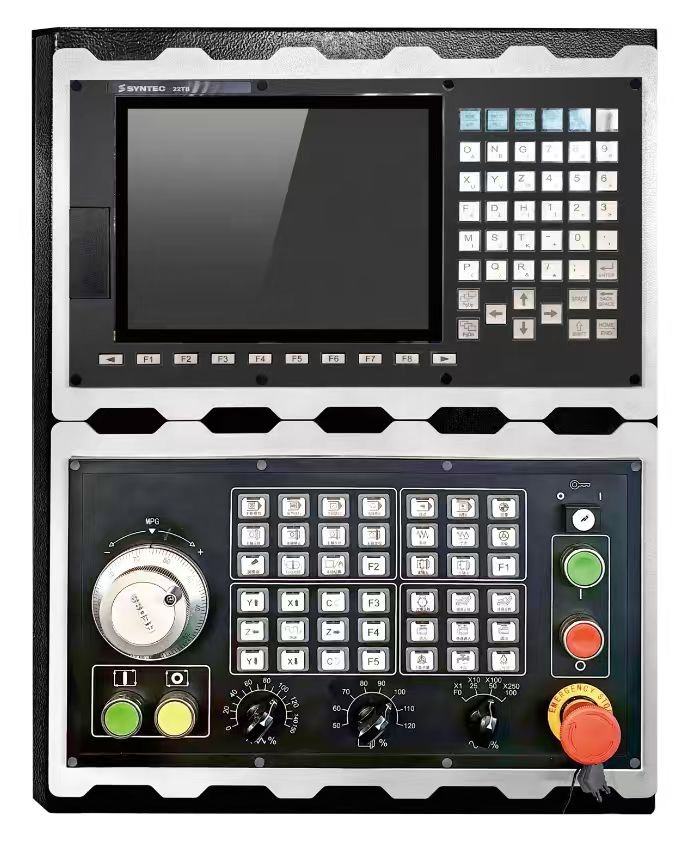

Synteccnc control system
Light Dutymachining capacity
2number of axes
Singleno. of spindles

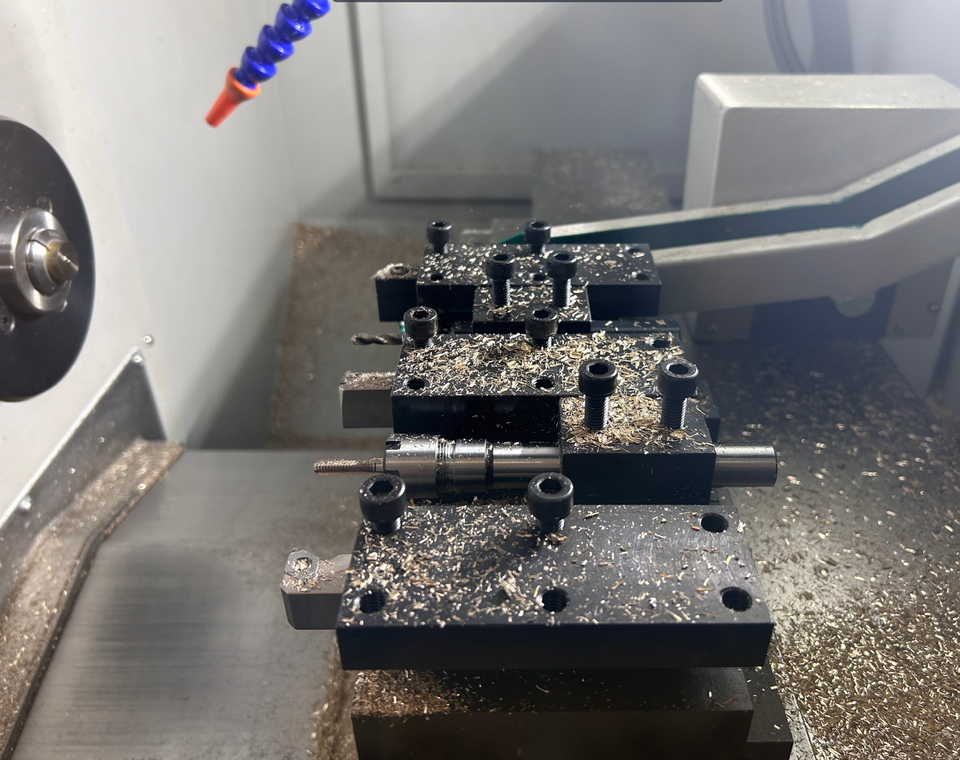

8tool post stations
max. length of workpiece (mm):220
key selling points:Multifunctional, Automatic
repeatability (x/y/z) (mm):±0.005
positioning accuracy (mm):±0.005
warranty:1 Year
type:CNC Lathe
machinery test report:Provided
video outgoing-inspection:Provided
max. weight of workpiece(kg):50
travel (x axis)(mm):750
travel (z axis)(mm):280
place of origin:Guangdong, China
dimension(l*w*h):2300x1350x1760
brand name:HS
model number:46C
weight:2900
range of spindle speed:0 - 4500
CNC or Not:CNC Automatic Lathe Machine

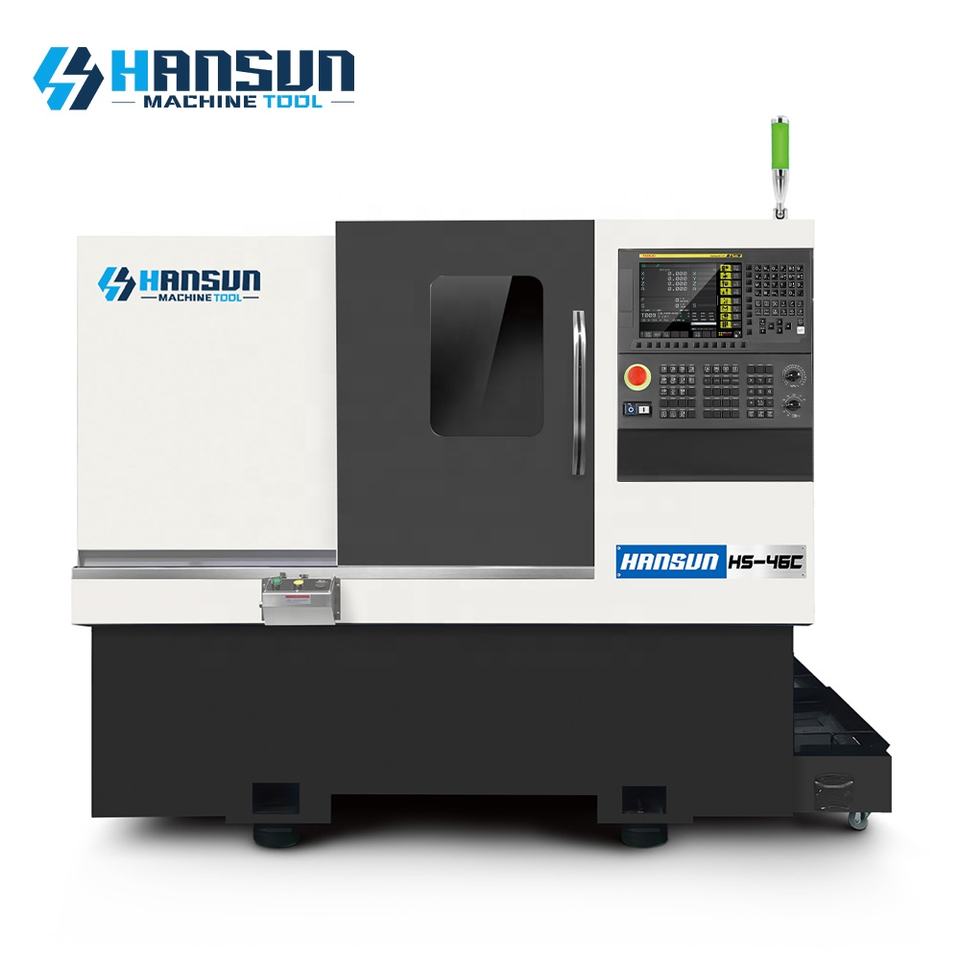

Product name:HS-46C
Spindle nose:A2-5
Spindle speed:4500
Spindle bore:56mm
Max number of tools:8
X/Z axis motor power:1.3/1.3 kw
Collet chuck size:6 inch
Max passable bar diameter:35mm
Center high:56mm
fast moving speed:26m/min
net weight:2900kg
dimensions:2300x1350x1760
system:Fanuc
