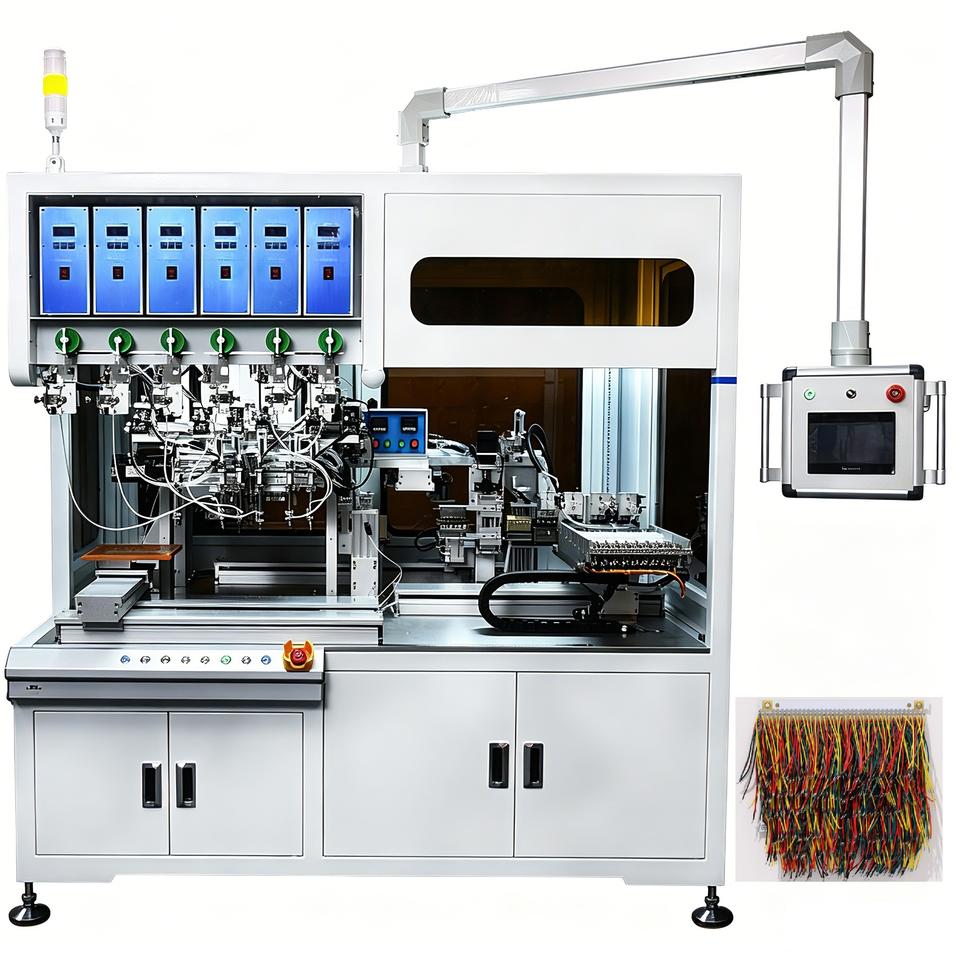

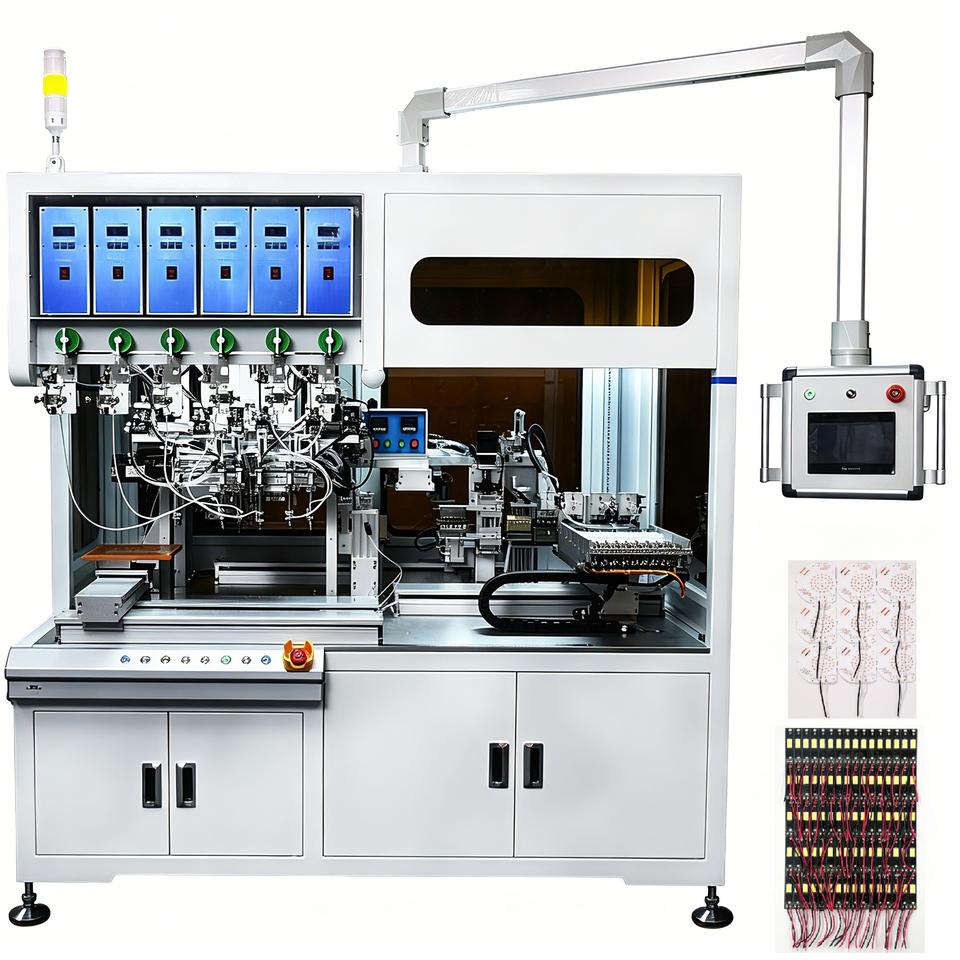

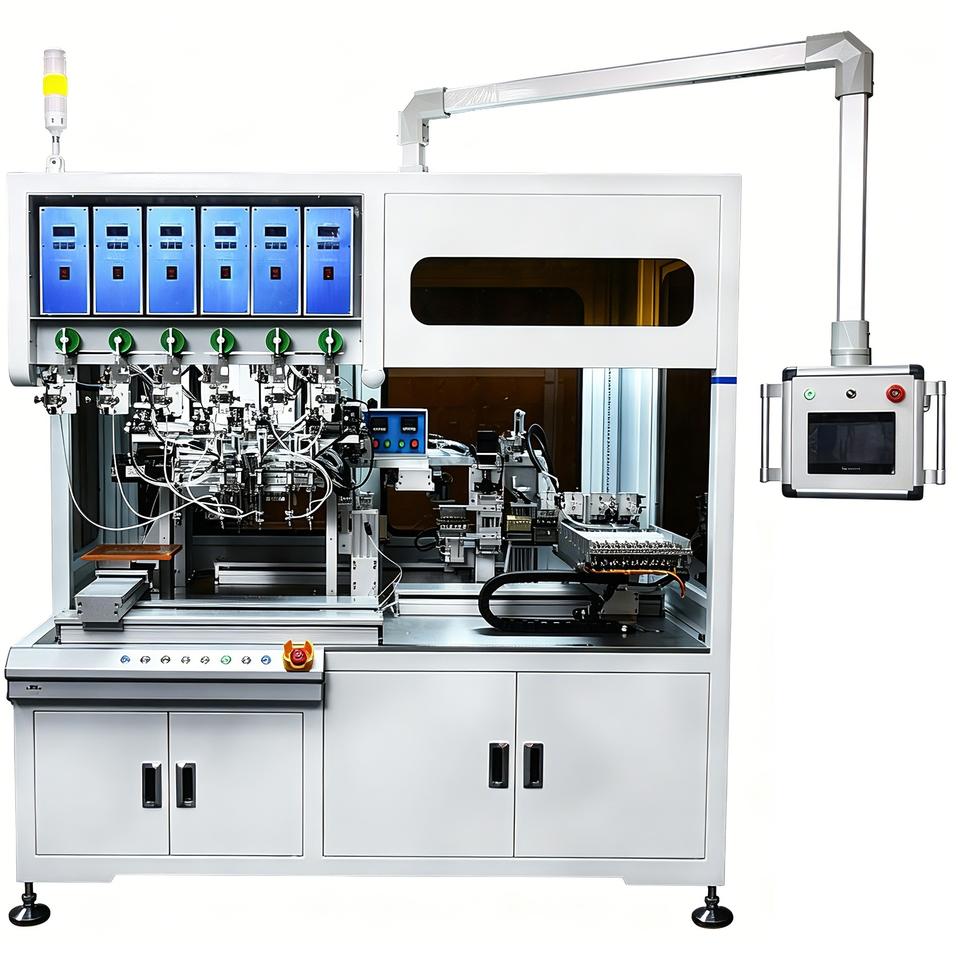

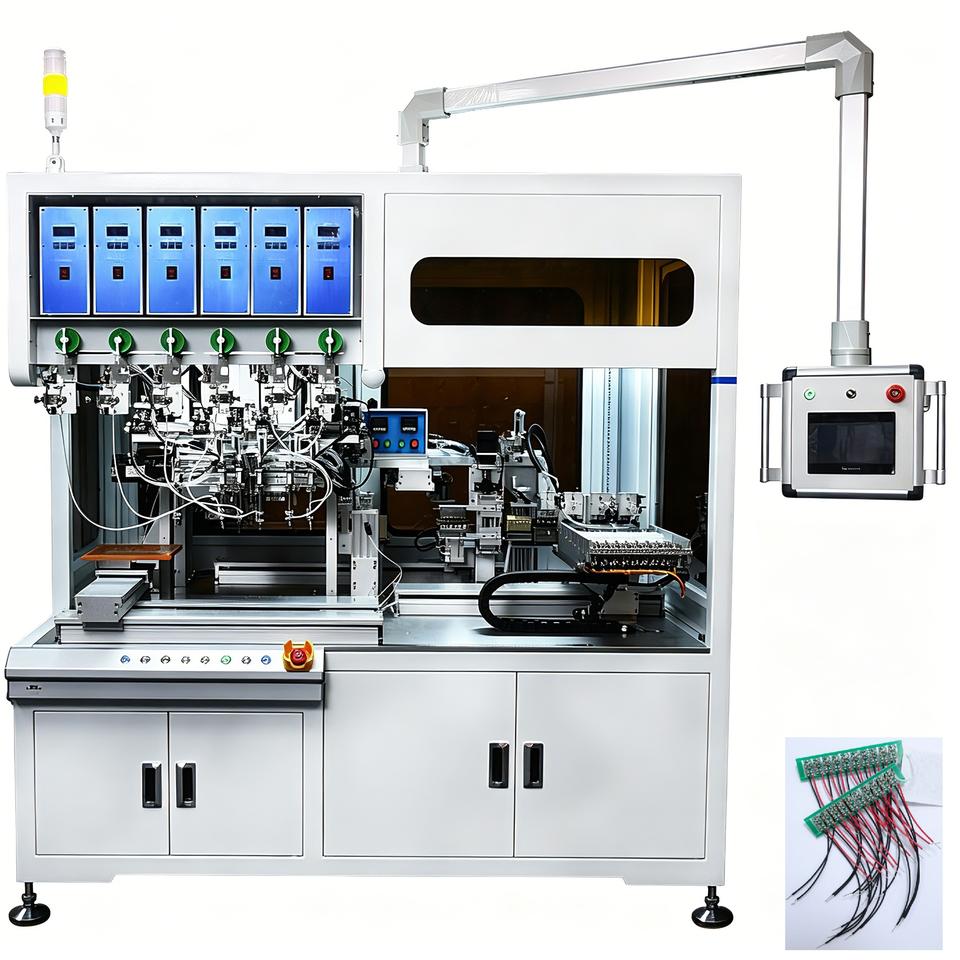

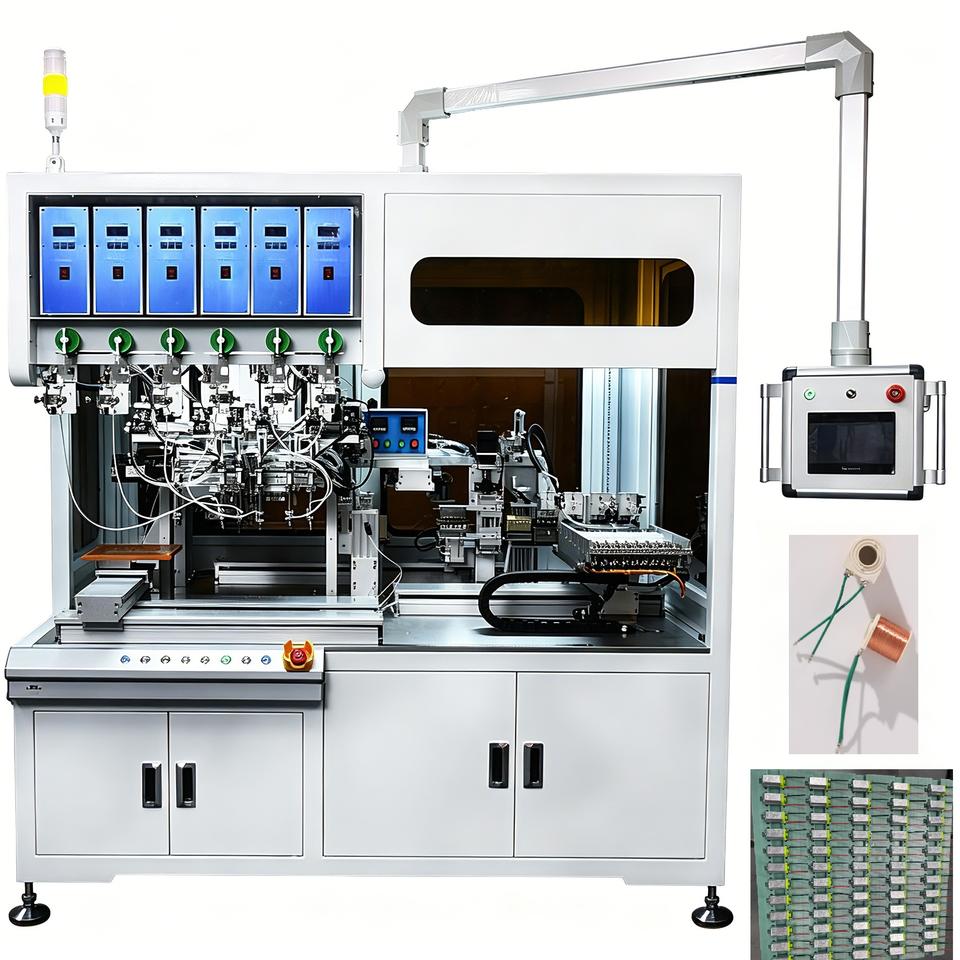

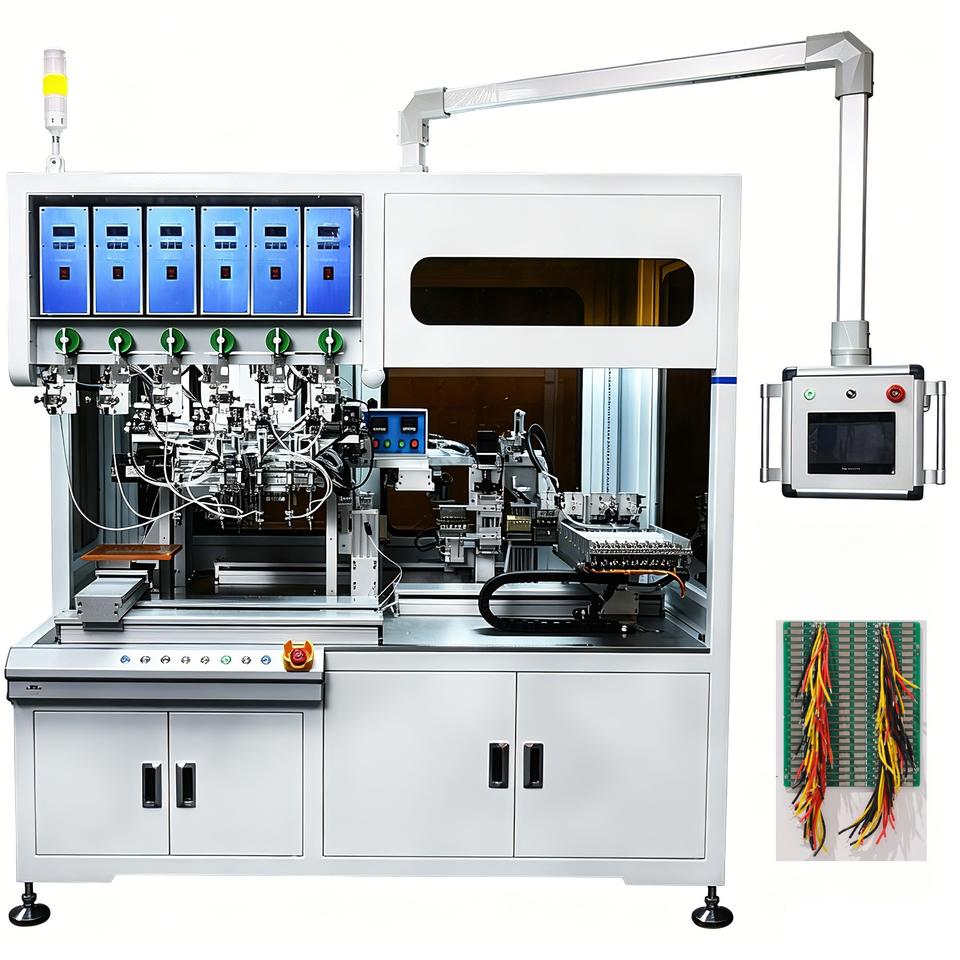

Micro DC Motor Lead Soldering Machine, Fully Auto Cut Strip Tin for Motor Wire
No reviews yet
Attributes
Multifunctionalusage
AutomaticOperating Mode
450Weight (KG)
Guangdong, Chinaplace of origin
Sinradbrand name
SR-WJ980model number
Dimension(L*W*H):2000x1500x2000mm
Motion Range (X/Y Axis):200 mm x 250 mm
Motion Range (Z Axis):100 mm
Equal Spacing Range (Clamping Axis):13~165 mm (fits units less than 165 mm outer width)
Travel Speed (PTP, X/Y Axis):0~600 mm/sec
Load Capacity (Pallet):10 KG
Load Capacity (Z Axis):5 KG
Repeat Positioning Accuracy:X/Y/Z: ±0.02 mm
Resolution:0.01 mm
Driving Method:Microcontroller + PLC
Transmission Method:Closed-loop/Servo + Lead Screw
Control Axes:13 axes
Wire Cutting Length:20~200 mm
Stripping Length:1~5 mm
Tin Dipping Length:1~5 mm (optional)
Channel Specification:5 channels
Wire Gauge:0.5 mm²~2.5 mm²
Soldering Stroke (Fixture):200x300 mm
Program Storage:99 sets
Power Supply:AC220V±10V, 50/60 Hz
Key attributes
usage
Multifunctional
Operating Mode
Automatic
Weight (KG)
450
place of origin
Guangdong, China
brand name
Sinrad
model number
SR-WJ980
Dimension(L*W*H)
2000x1500x2000mm
Motion Range (X/Y Axis)
200 mm x 250 mm
Motion Range (Z Axis)
100 mm
Equal Spacing Range (Clamping Axis)
13~165 mm (fits units less than 165 mm outer width)
Travel Speed (PTP, X/Y Axis)
0~600 mm/sec
Load Capacity (Pallet)
10 KG
Load Capacity (Z Axis)
5 KG
Repeat Positioning Accuracy
X/Y/Z: ±0.02 mm
Resolution
0.01 mm
Driving Method
Microcontroller + PLC
Transmission Method
Closed-loop/Servo + Lead Screw
Control Axes
13 axes
Wire Cutting Length
20~200 mm
Stripping Length
1~5 mm
Tin Dipping Length
1~5 mm (optional)
Channel Specification
5 channels
Wire Gauge
0.5 mm²~2.5 mm²
Soldering Stroke (Fixture)
200x300 mm
Program Storage
99 sets
Power Supply
AC220V±10V, 50/60 Hz
Packaging and delivery
Selling Units
Single item
Single package size
230X158X220 cm
Single gross weight
650.000 kg
Lead time
Product descriptions from the supplier
Warning/Disclaimer
California Proposition 65 Consumer WarningView more
This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.View more
Minimum order quantity: 1 set
£27,80303
Variations
Select nowCapacity (kg/h): 4000PCS/H
4000PCS/H
Power(W)
1500W(2.01hp)
