Attributes
800kgRated Loading Capacity
3600mm*200kgRated Lifting Moment
5000mmMax. Lifting Height
16mSpan
In the trendBrand Name
150Weight (KG)
Core Components:Pump
Place of Origin:Guangdong, China
Warranty:1 Year
Video outgoing-inspection:Provided
Machinery Test Report:Provided

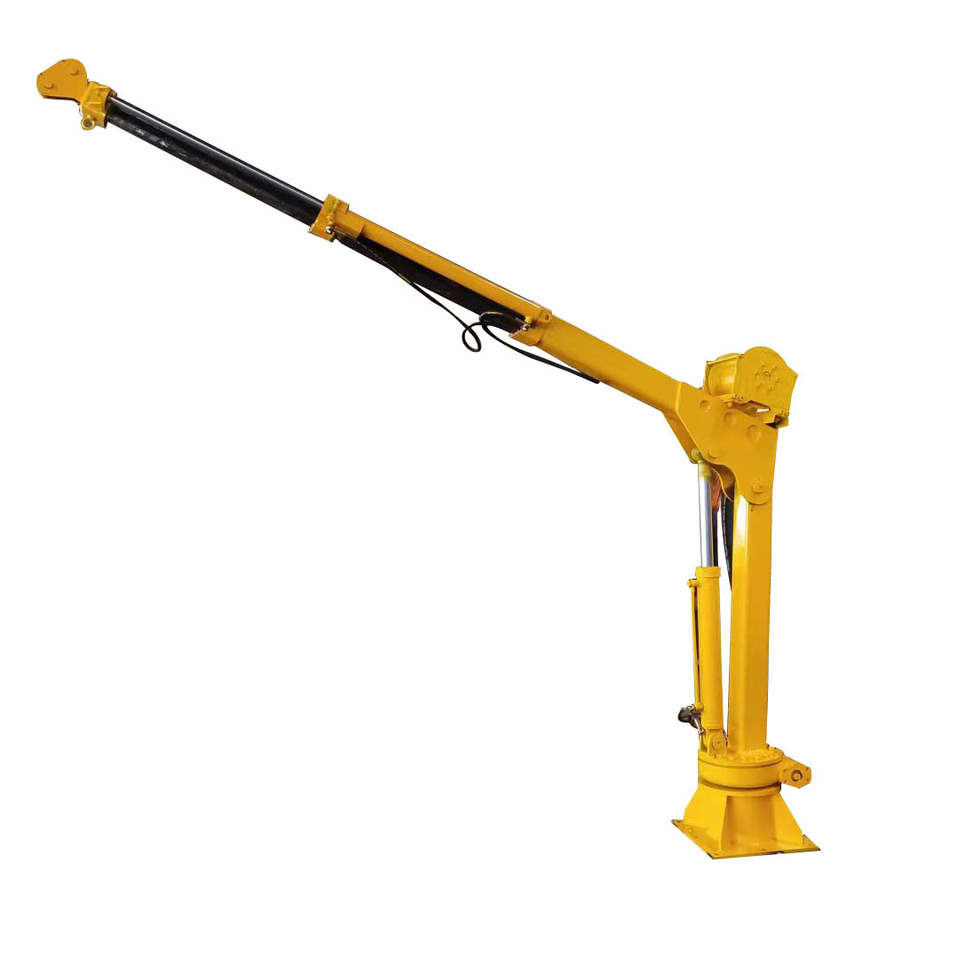

Application:pickup crane
Make:TONLITA
Min. expansion dimension:1130 mm
Max. expansion dimension:3630 mm
Bottom panel installation size:240*280 mm
Crane no-expansion dimensions:590*1220 mm
Max. working radius:3630 mm
Slewing angle:330°
Hydraulic pressure:18 Mpa
Hydraulic flow:5 L/min
Oil tank volume:10 L
Crane self weight:150 kg
