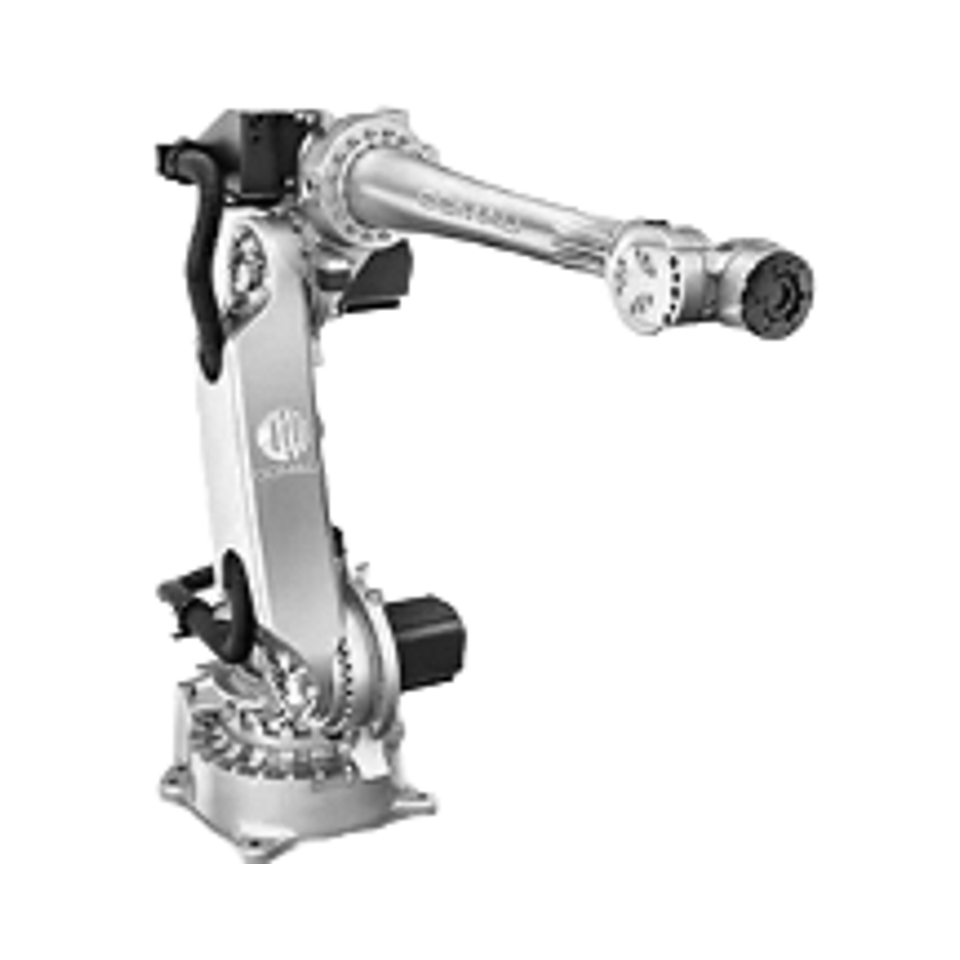

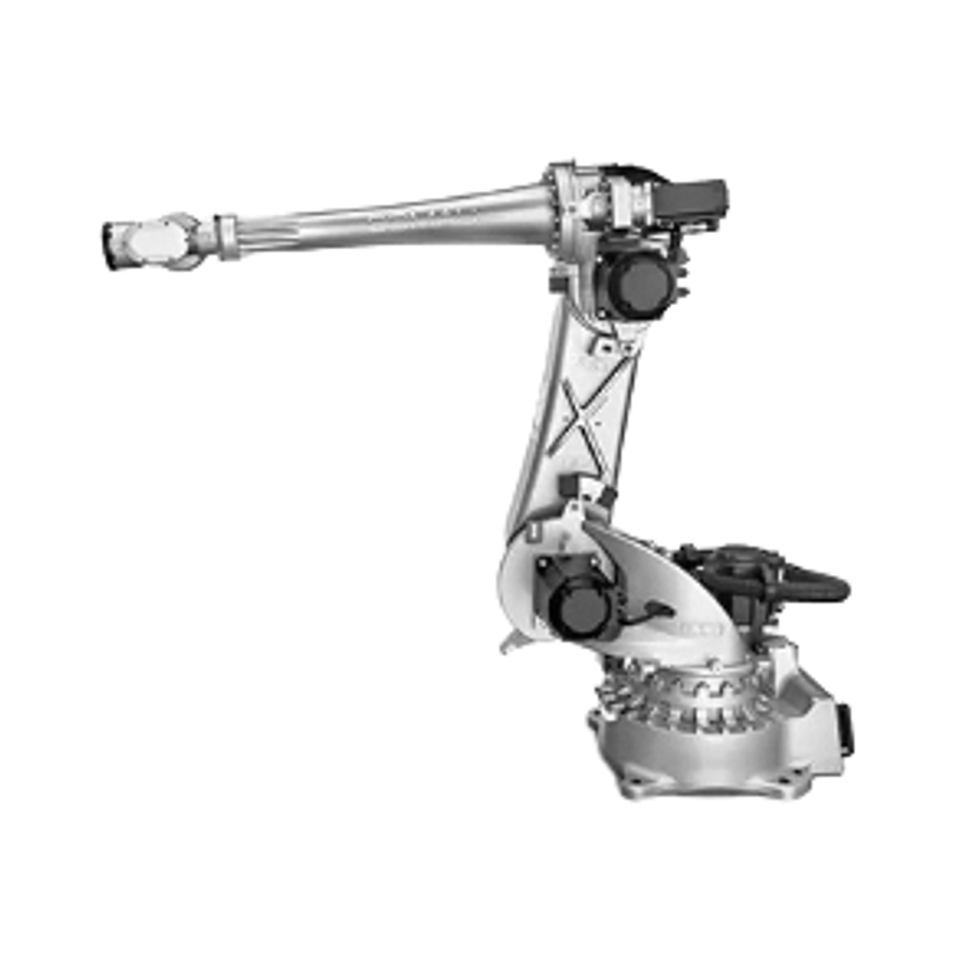

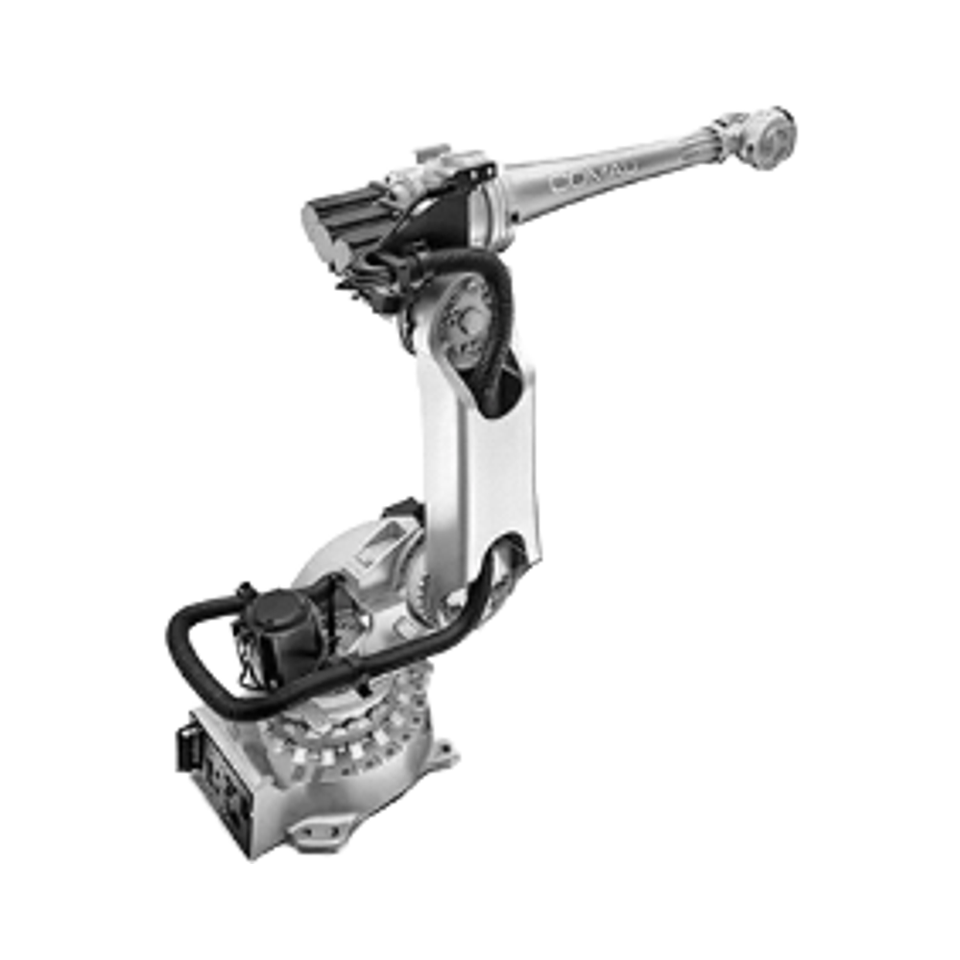

NJ-40-2.5 UL Light Robot Arm With Exceptional Trajectory Control For High Speed And Shorter Cycle Times - 40 Kg Payload
No reviews yet
Attributes
noDrive Type
IP65, Ip67Ingress Protection
Robotic Armcore components
-voltage
-power(w)
40 Kgproduction capacity
place of origin:Italy
weight (kg):655
brand name:COMAU
application:Industrial
Number of axes:6
Maximum wrist payload:40 Kg
Additional load on forearm:35 Kg
Maximum horizontal reach:2503 mm
Repeatability:0.06 mm
Tool coupling flange:ISO 9409 1 A100
Mounting position:Floor / Ceiling / Sloping (max 45°)
Key attributes
Drive Type
no
Ingress Protection
IP65, Ip67
core components
Robotic Arm
voltage
-
power(w)
-
production capacity
40 Kg
place of origin
Italy
weight (kg)
655
brand name
COMAU
application
Industrial
Number of axes
6
Maximum wrist payload
40 Kg
Additional load on forearm
35 Kg
Maximum horizontal reach
2503 mm
Repeatability
0.06 mm
Tool coupling flange
ISO 9409 1 A100
Mounting position
Floor / Ceiling / Sloping (max 45°)
Packaging and delivery
Selling Units
Single item
Single gross weight
655.000 kg
Product descriptions from the supplier
Minimum order quantity: 1 piece
£25,46125-47,97046
Variations
Select nowSupplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
