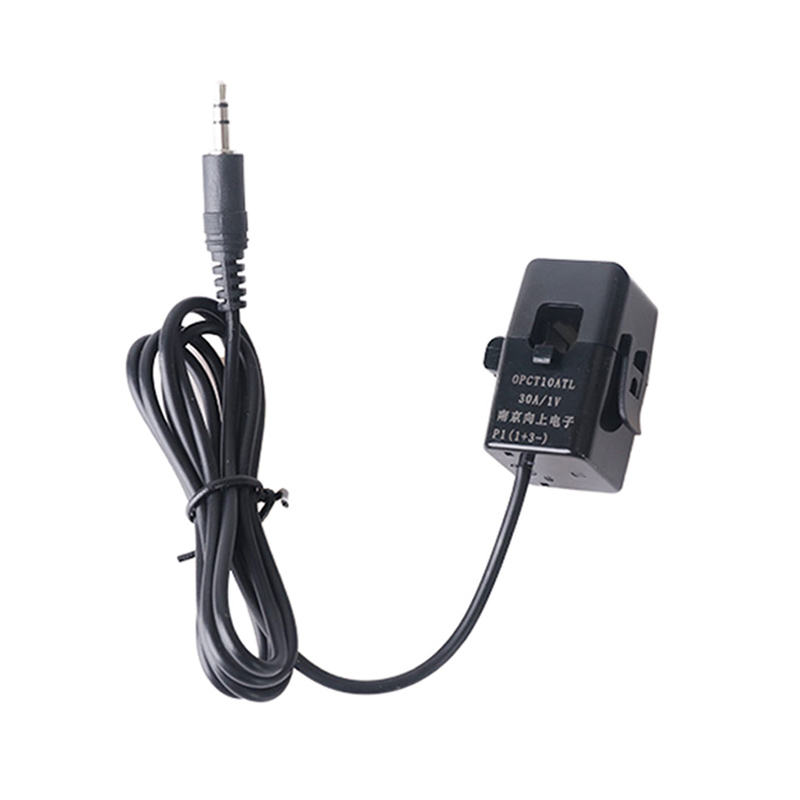

NJXSE OPCT10ATL Split Core Transformer 3.5mm Jack 5A 10A 20A 30A 50A 60A Clamp CT 1000/1 2000/1 3000/1 1V Current Transformer

No reviews yet
£201
1-499 pieces
£174
≥500 pieces
Select now

Type

OPCT10ATL-60A(1000/1)
OPCT10ATL-60A(2000/1)
OPCT10ATL-80A(3000/1)
OPCT10ATL-1A/1V
OPCT10ATL-5A/1V
OPCT10ATL-10A/1V
OPCT10ATL-15A/1V
OPCT10ATL-20A/1V
OPCT10ATL-30A/1V
+3

Mounting Type

Tie strap fixation
Customization options
Customized Logo (Min. order: 50 pieces)
Customized Ratio (Min. order: 3 pieces)

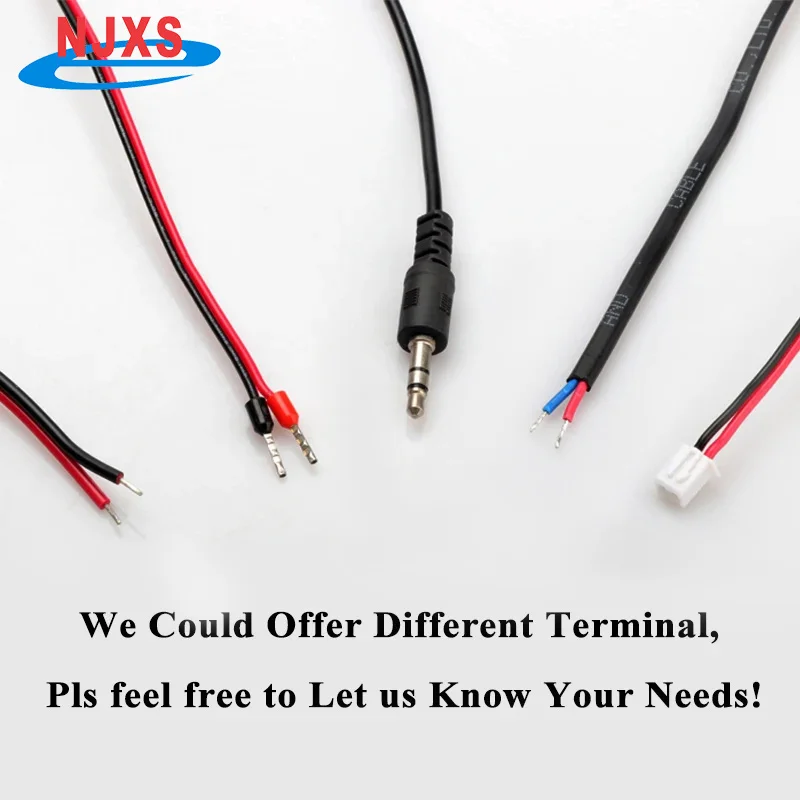

Customized Cable (Min. order: 50 pieces)

Key attributes

Brand Name

NJXSE

Model Number

OPCT10ATL

Packaging Type

Standard export carton packing

Manufacturing Date Code

Newest

Place of Origin

Jiangsu, China

Description

Current transformer

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Finance Service

4 interest-free payments with

Key attributes

Brand Name
NJXSE
Model Number
OPCT10ATL
Packaging Type
Standard export carton packing
Manufacturing Date Code
Newest
Place of Origin
Jiangsu, China
Description
Current transformer

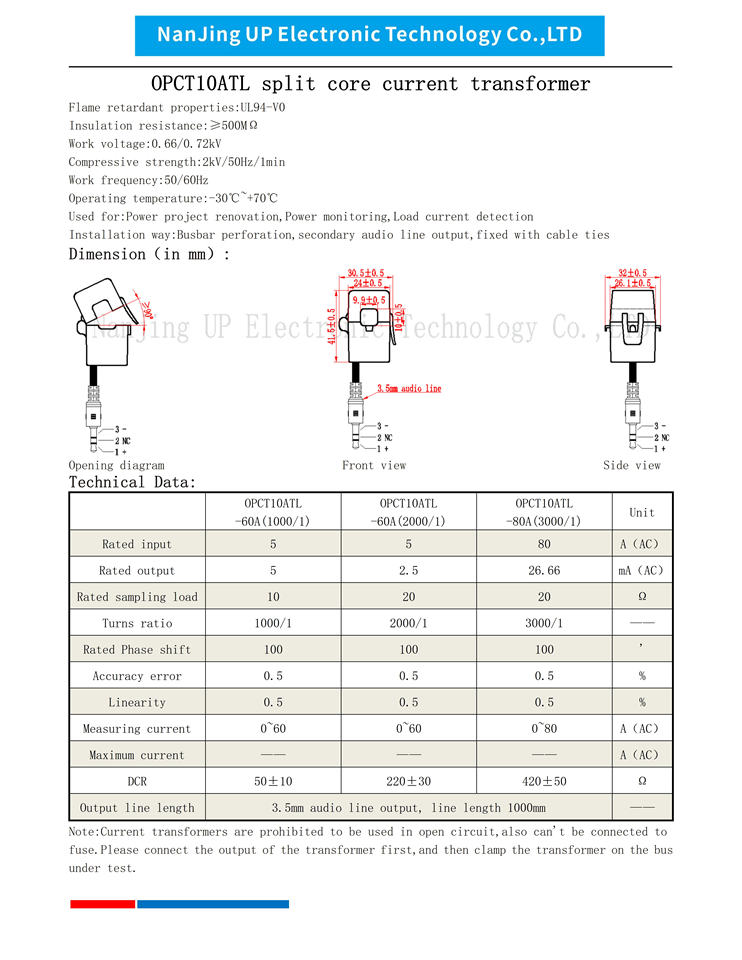

Specification

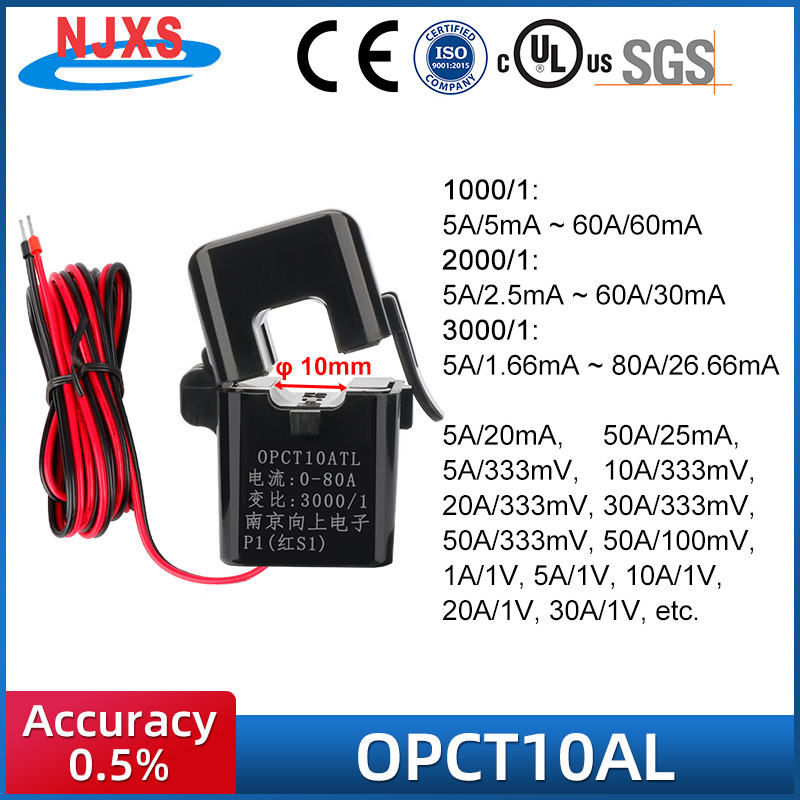

1000/1 2000/1 3000/1; 1V output
Application
Current measurement and protection
Operating Temperature
Refer to product specifications
Package / Case
Flame retardant plastic shell
Series
OPCT Series
Features
High accuracy, good linearity
Size / Dimension
10mm hole size
Cable

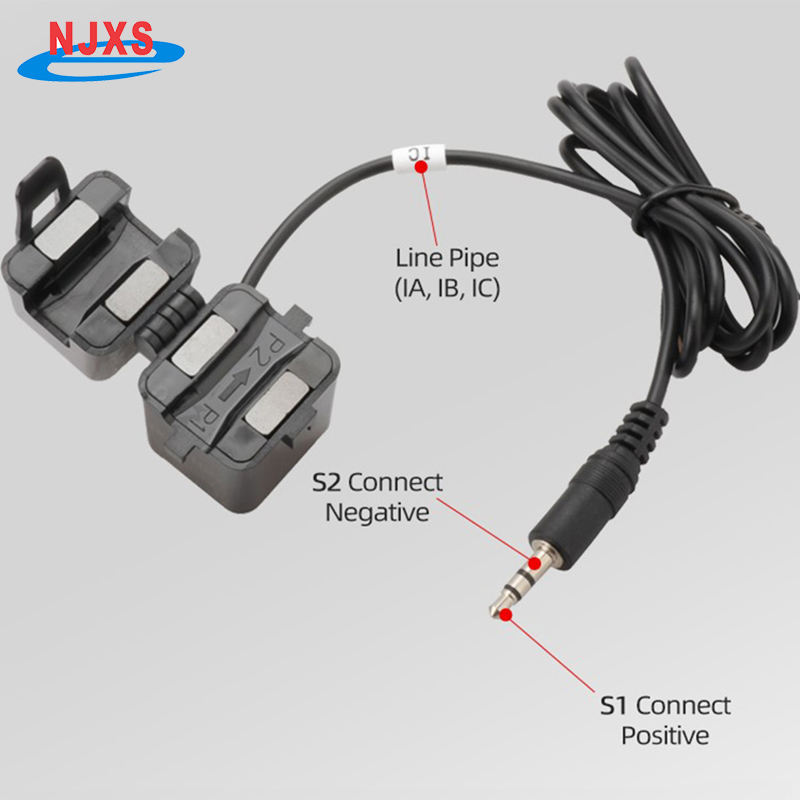

3.5mm jack audio cable
Flame retardant properties
UL94-V0
Insulation resistance
≥500M
Work voltage
0.66/0.72kV
Compressive strength
2kV/50Hz/1min
Work frequency
50/60Hz
Operating temperature
-30c~+70c
Core material
Ferrite core

Packaging and delivery

Selling Units
Single item
Single package size
5X5X5 cm
Single gross weight
0.26 kg

Lead time

Customization options

Customized Logo(+ from /Min. order: 50 pieces)
Customized Ratio(+ from /Min. order: 3 pieces)
Customized Cable(+ from /Min. order: 50 pieces)
