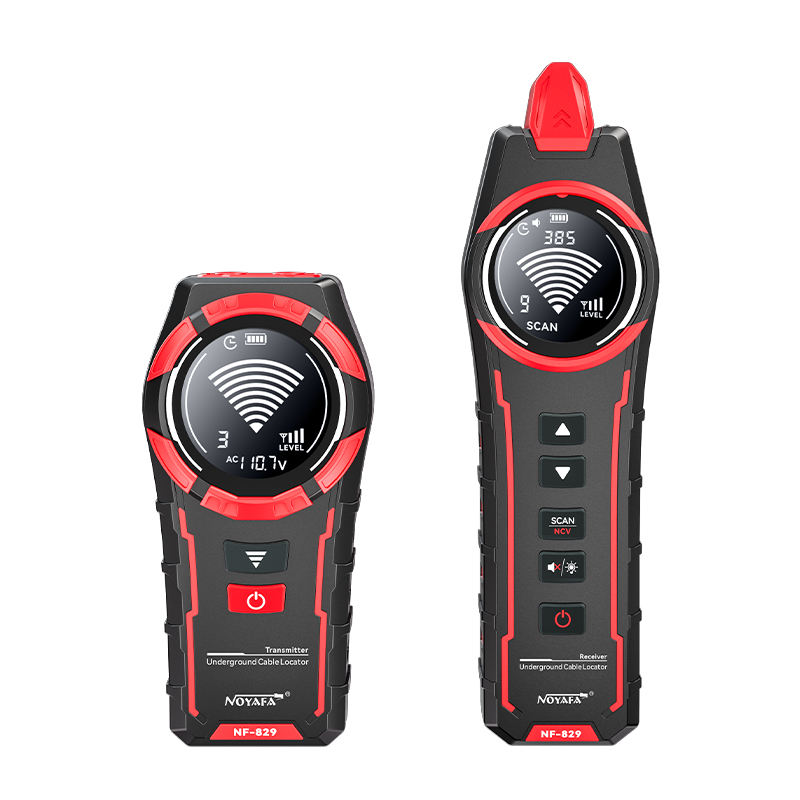

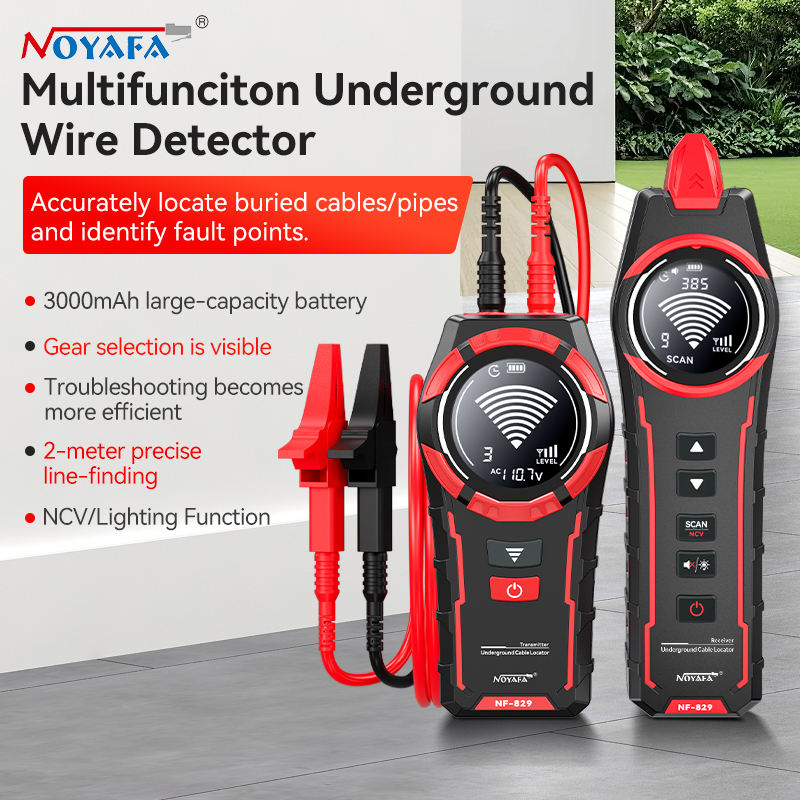

NOYAFA NF-829 Multifunction Underground Cable & Pipe Detector Locate Buried Wires up to 3M Depth Efficient Troubleshooting Tool
No reviews yet
Attributes
600 VRated Voltage
15.6*8*3.2CMSize
Send inquiry for detailShielding
0-40℃Working Temperature
400mARated Current
CopperConductor Material
Insulation Material:ABS
Jacket:PE
IP Level:IP54
Application:Electronic Instrumentation
Length:1000M
Place of Origin:Guangdong, China
Model Number:NF-829
Brand Name:NOYAFA
Explosion Protection:Send inquiry for detail
Transmit signal frequency:125KHz
Range of External Voltage Identified:DC12~600V±2.5%
Range of External Voltage:AC12~600V(50~60Hz)±2.5%
Dielectric Strength of External:AC/DC Max.480v
Power Consumption Min.Current:150 mA
Power Consumption Max.Current:400 mA
Max Detection Depth Negative electrode:Around 0.7M
Max Detection Depth Parallel connection:Around 1.5M
single- loop connection Depth:Around 4M
Sensitivity Level:9 levels
Key attributes
Rated Voltage
600 V
Size
15.6*8*3.2CM(6.14*3.15*1.26in)
Shielding
Send inquiry for detail
Working Temperature
0-40℃(0-72℉)
Rated Current
400mA
Conductor Material
Copper
Insulation Material
ABS
Jacket
PE
IP Level
IP54
Application
Electronic Instrumentation
Length
1000M(3280.84ft)
Place of Origin
Guangdong, China
Model Number
NF-829
Brand Name
NOYAFA
Explosion Protection
Send inquiry for detail
Transmit signal frequency
125KHz
Range of External Voltage Identified
DC12~600V±2.5%
Range of External Voltage
AC12~600V(50~60Hz)±2.5%
Dielectric Strength of External
AC/DC Max.480v
Power Consumption Min.Current
150 mA
Power Consumption Max.Current
400 mA
Max Detection Depth Negative electrode
Around 0.7M
Max Detection Depth Parallel connection
Around 1.5M
single- loop connection Depth
Around 4M
Sensitivity Level
9 levels
Packaging and delivery
Selling Units
Single item
Single gross weight
1.000 kg
Customization options
Customized logo(+ from /Min. order: 500 sets)
Customized packaging(+ from /Min. order: 500 sets)
Graphic customization(+ from /Min. order: 500 sets)
View details
Product descriptions from the supplier
