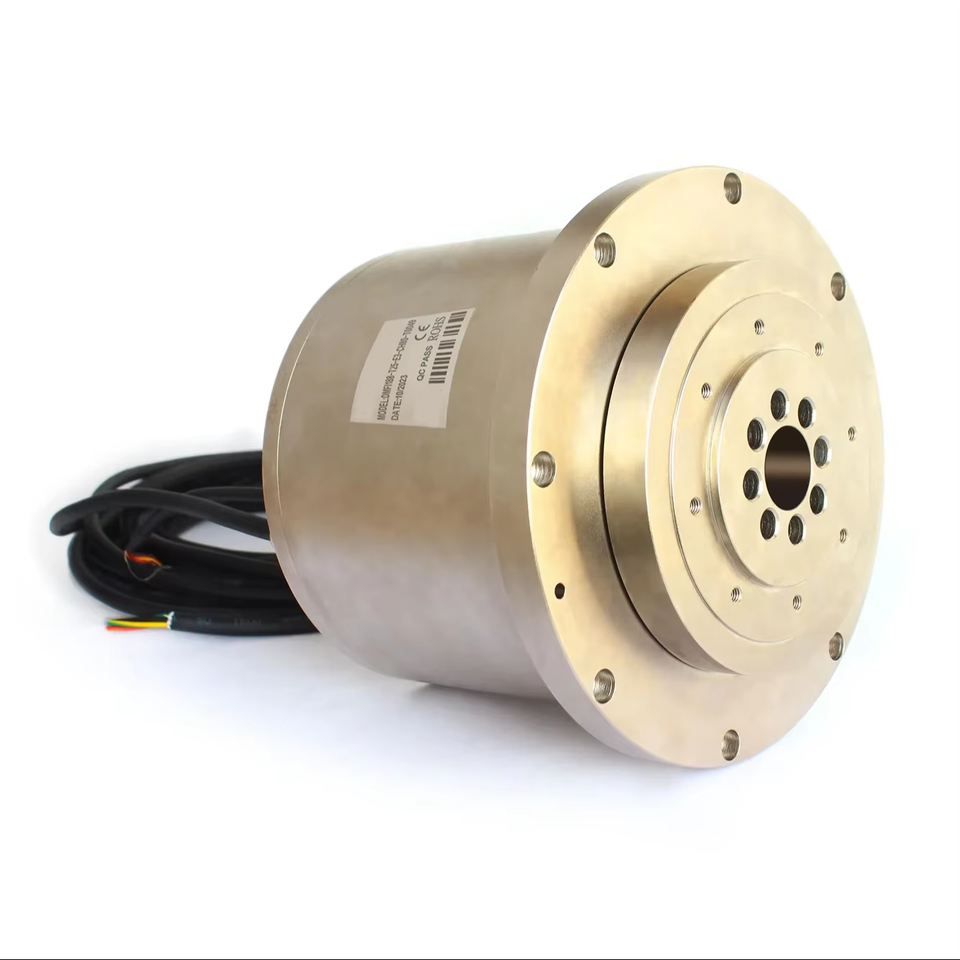

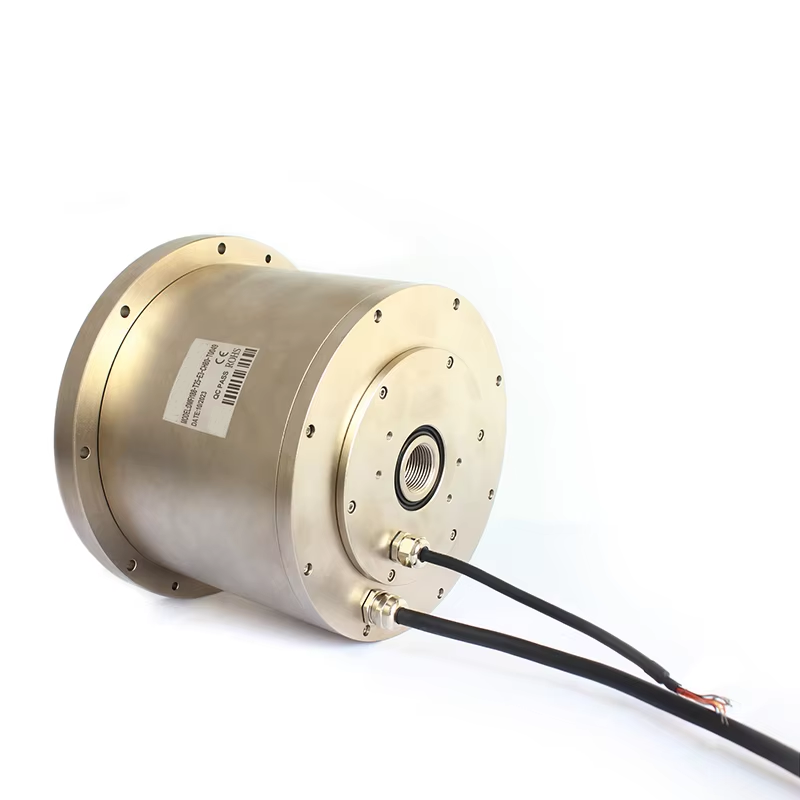

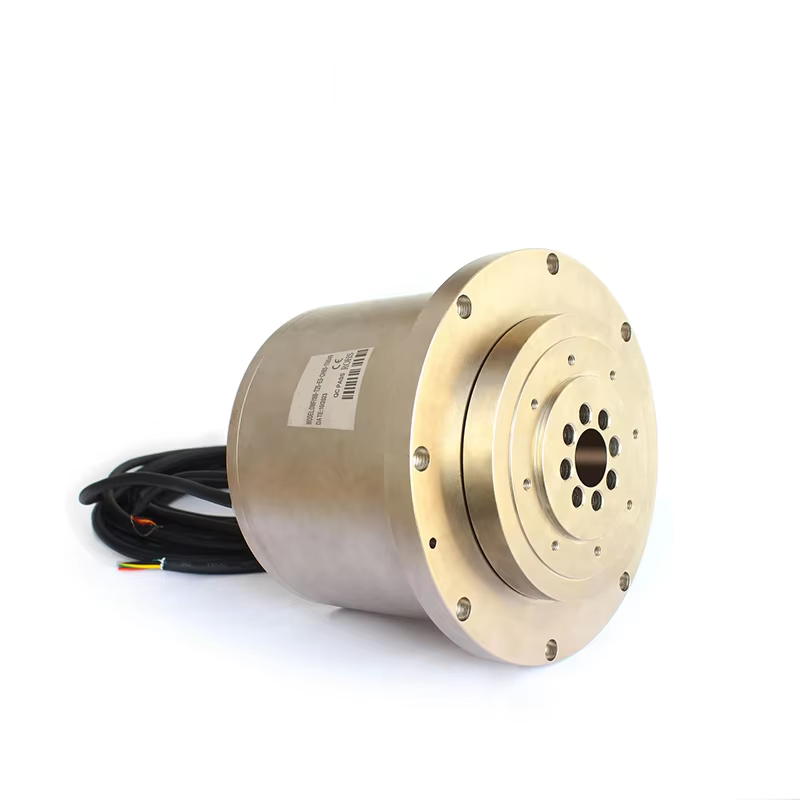

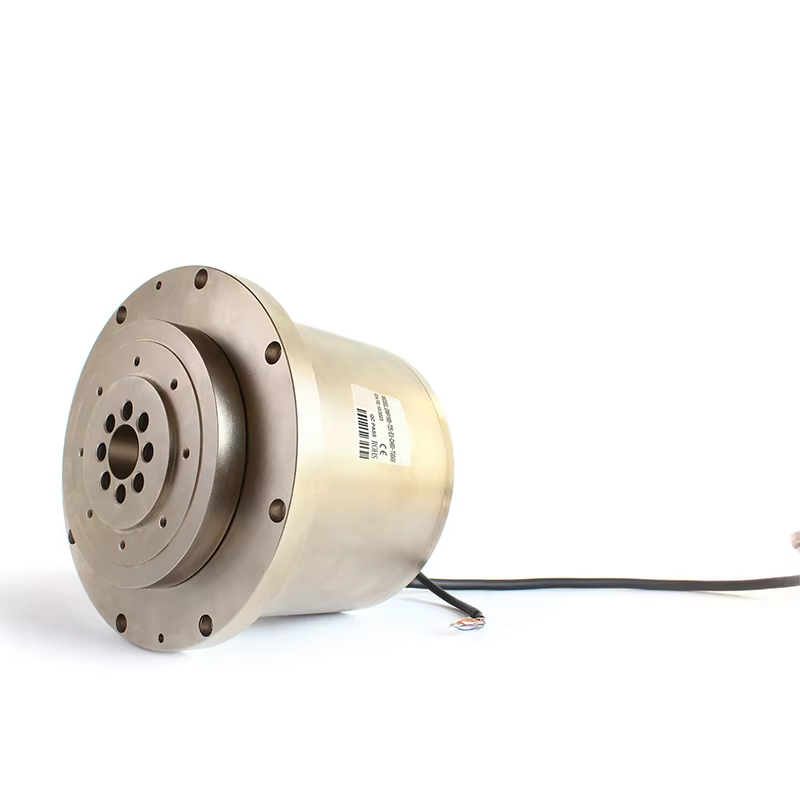

New Original Housing 48V DC High Efficiency Torque Direct Drive Rotary Brushless Motor for Electric Bicycle Boat Fan Robots

Store rating:4.6
(14 reviews)
Hanhai International (HK) Technology Limited
1 yr
HK

Attributes

customContinuous Current(A)
IE 4Efficiency
6000Speed(RPM)
ChinaPlace of Origin
otherFrame
otherMotor Mounting Type
Rated Power:other
Model Number:FI-4048
Brand Name:other
Commutation:Brushless
Construction:Permanent Magnet
IP Rating:other
Protect Feature:Totally Enclosed
Speed Rpm:other
Torque:0.25
Type:DD Motor
Usage:Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home, Medical machinery
Warranty:Other
Voltage:48V DC
Rated Output*1 (W):380.424/845.736w
Rated torque*1 (Nm):1.21/2.69Nm
Instant Max Torque*1 (Nm):3.17/6Nm
Rated Current*1 (Arms):6/17Arms
Instant Max Current*1 (Arms):18/50Arms
Max Speed*1 (Rpm):6000Rpm
Torque Parameter (Nm/Arms):0.15823/0.20166Nm/Arm
Resistance ():0.1/0.8
Inductance (mH):0.22/1.1mH

Key attributes

Continuous Current(A)
custom
Efficiency
IE 4
Speed(RPM)
6000
Place of Origin
China
Frame
other
Motor Mounting Type
other
Rated Power
other
Model Number
FI-4048
Brand Name
other
Commutation
Brushless
Construction
Permanent Magnet
IP Rating
other
Protect Feature
Totally Enclosed
Speed Rpm
other
Torque
0.25
Type
DD Motor
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home, Medical machinery
Warranty
Other
Voltage
48V DC
Rated Output*1 (W)
380.424/845.736w
Rated torque*1 (Nm)
1.21/2.69Nm
Instant Max Torque*1 (Nm)
3.17/6Nm
Rated Current*1 (Arms)
6/17Arms
Instant Max Current*1 (Arms)
18/50Arms
Max Speed*1 (Rpm)
6000Rpm
Torque Parameter (Nm/Arms)
0.15823/0.20166Nm/Arm
Resistance ()
0.1/0.8
Inductance (mH)
0.22/1.1mH

Packaging and delivery

Selling Units
Single item
Single package size
71X40X32 cm
Single gross weight
30.000 kg

Lead time

Product descriptions from the supplier

2 - 9 pieces
£10979
>= 10 pieces
£7295

Variations

Select now

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
