Attributes
3-YearWarranty(Year)
Guangdong, ChinaPlace of Origin

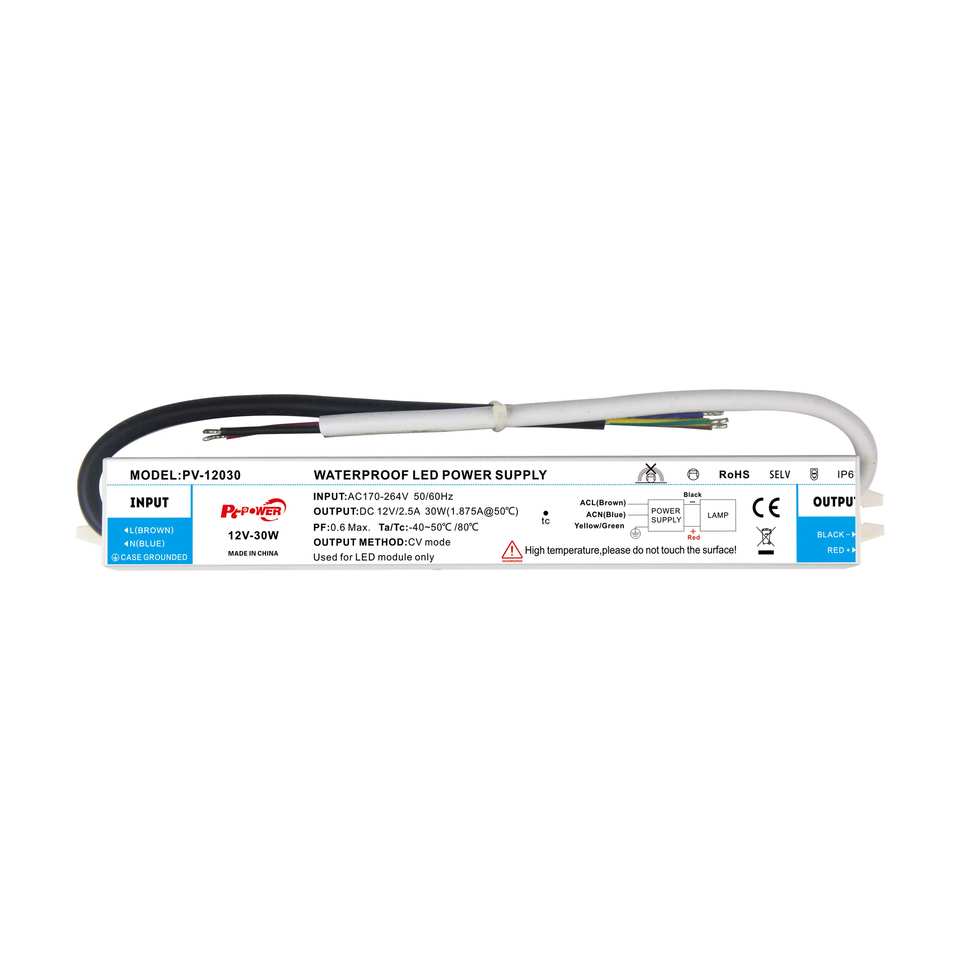

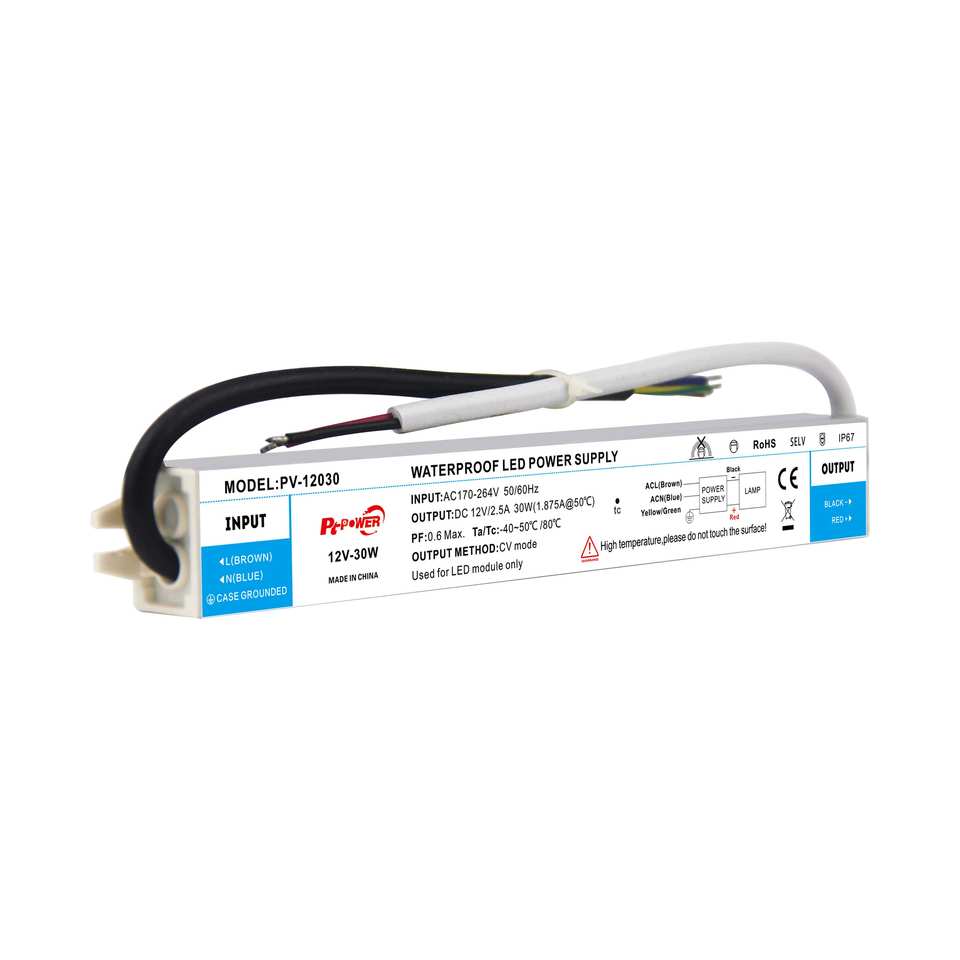

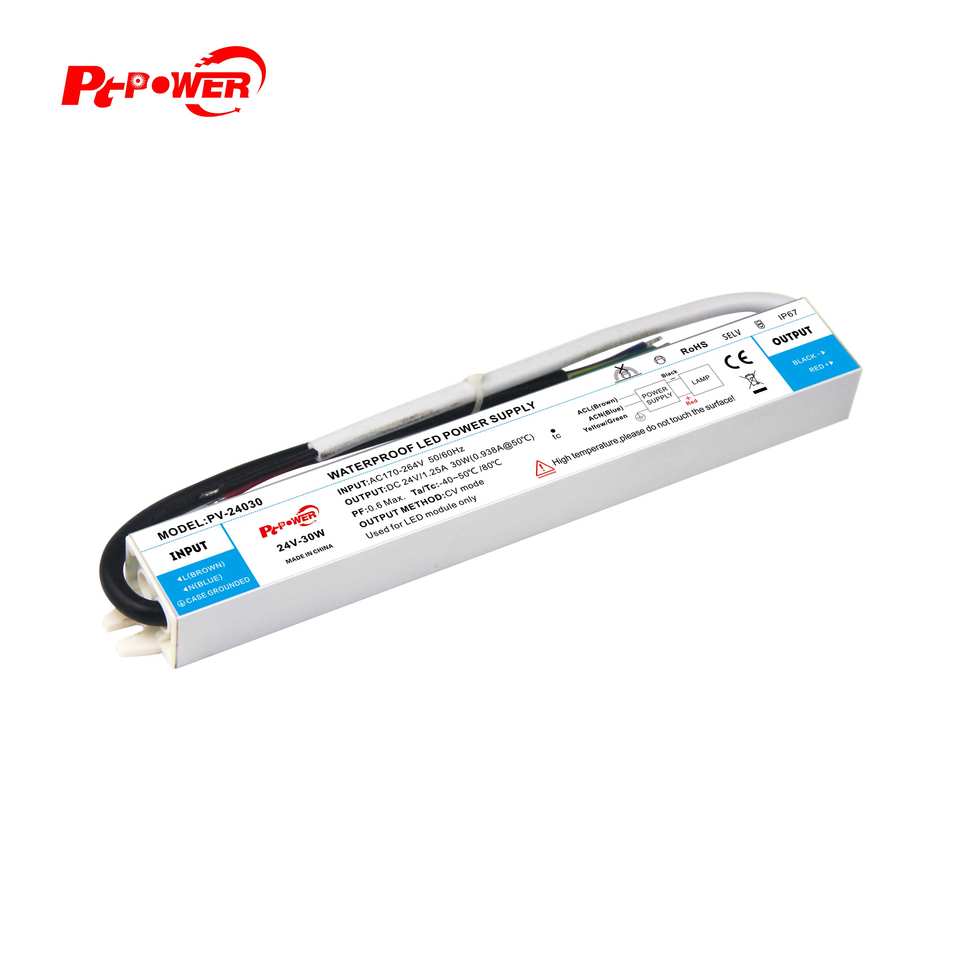

PV-12030/PV-24030Model Number
Pt POWERBrand Name
Led Lighting, Outdoor Lighting, Street LightApplication
AluminumCase Material
Dimming:None
Dimming Mode:Non-dimmable
Efficiency:≥83%
Energy Transfer:AC-DC
Input Voltage:AC170-264V
Lighting solutions service:Lighting And Circuitry Design, Other, Project Installation
Output Current:1.25A/2.5A
Output Frequency:50~60HZ
Output Power:30W
Output Type:Single
Product Weight（kg）:0.24
Topology:Ac-Dc Converter
Type:IP 67 Waterproof
Type:Constant Voltage Waterproof LED Driver
Waterproof Level:IP67
Certification:CE/FCC/RoHS
OEM/ODM:YES
Size:220*30*20mm
Working temperature:-40°C~+70°C
Withstand voltage:I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
EMC Standard:EN55032,EN61000-3-2,EN61000-3-3,EN55024
Safety standard:EN61347-1,EN61347-2-13
Protection:Short circuit, overload protection
Output Voltage:DC12V/24V
