Attributes
49D003579CQModel Number
HUAXINBrand Name
-20~+70Operating Temperature Range (°C)
±20ppmFrequency Tolerance
20pFLoad Capacitance
3.579545MHzFrequency
Type:Quartz Crystal
Place of Origin:Guangdong, China
D/C:25+
Supplier Type:Original Manufacturer, ODM
Package Type:HC-49S SMD
Cross Reference:HC-49SSMD
Media Available:Datasheet
Frequency Stability:±20ppm
ESR (Equivalent Series Resistance):40Ω
Installation:SMD
Application level:Consumer grade
Aging:±3ppm

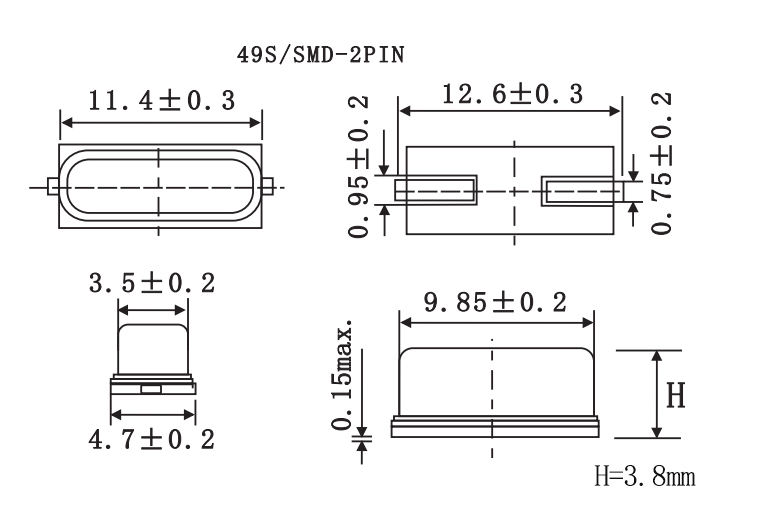

Dimension:11.3 X 4.4 X 4.0 mm
Selling Units:Multiple of 1,000
Package size per batch:32X32X7 cm
Gross weight per batch:0.250 kg
