Attributes
16:9, Otheraspect ratio
Outdoorapplication
4500 Nitsbrightness
IP54, IP65ip rating
3 mmPixels
-40℃-80℃Operating Temperature
warranty:2 Years
Screen Type:Led
function:SDK
Display Function:Animation
Content Management System:Yes

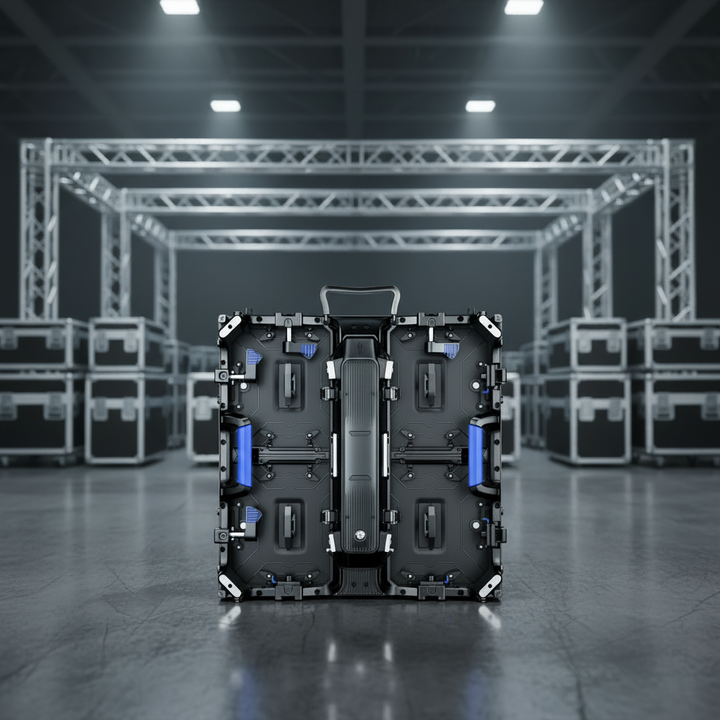

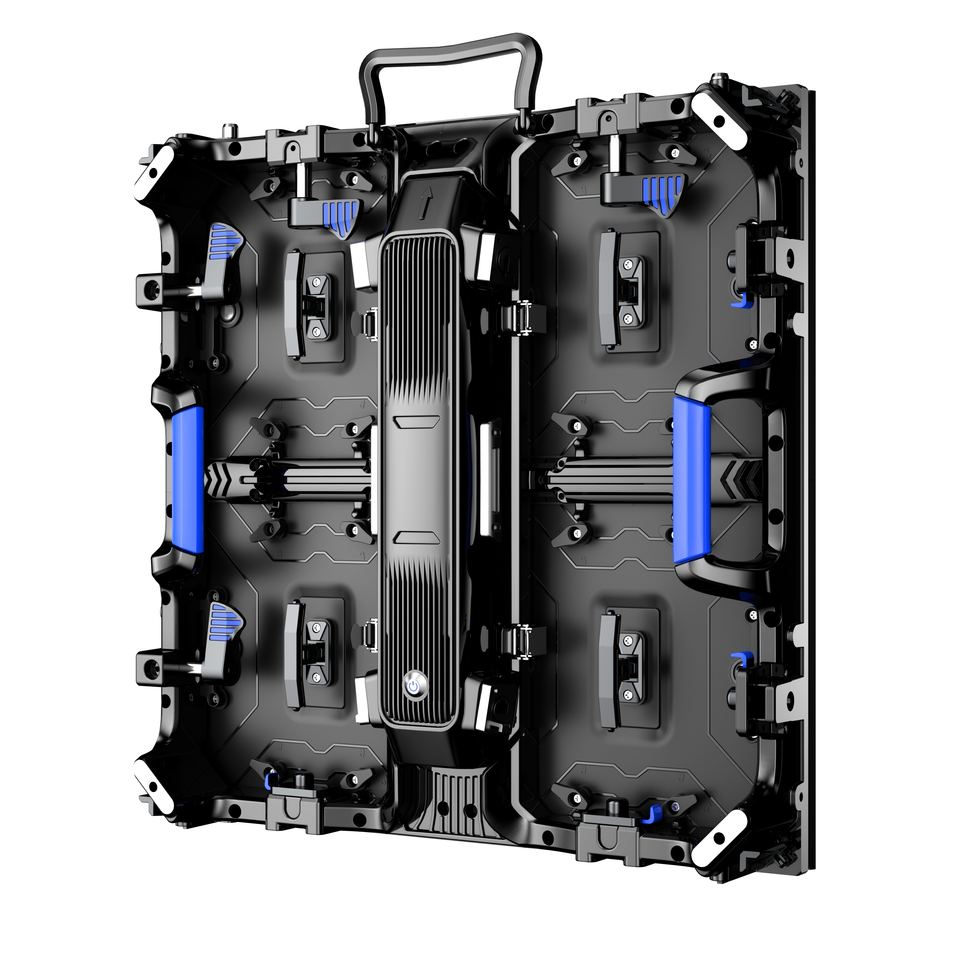

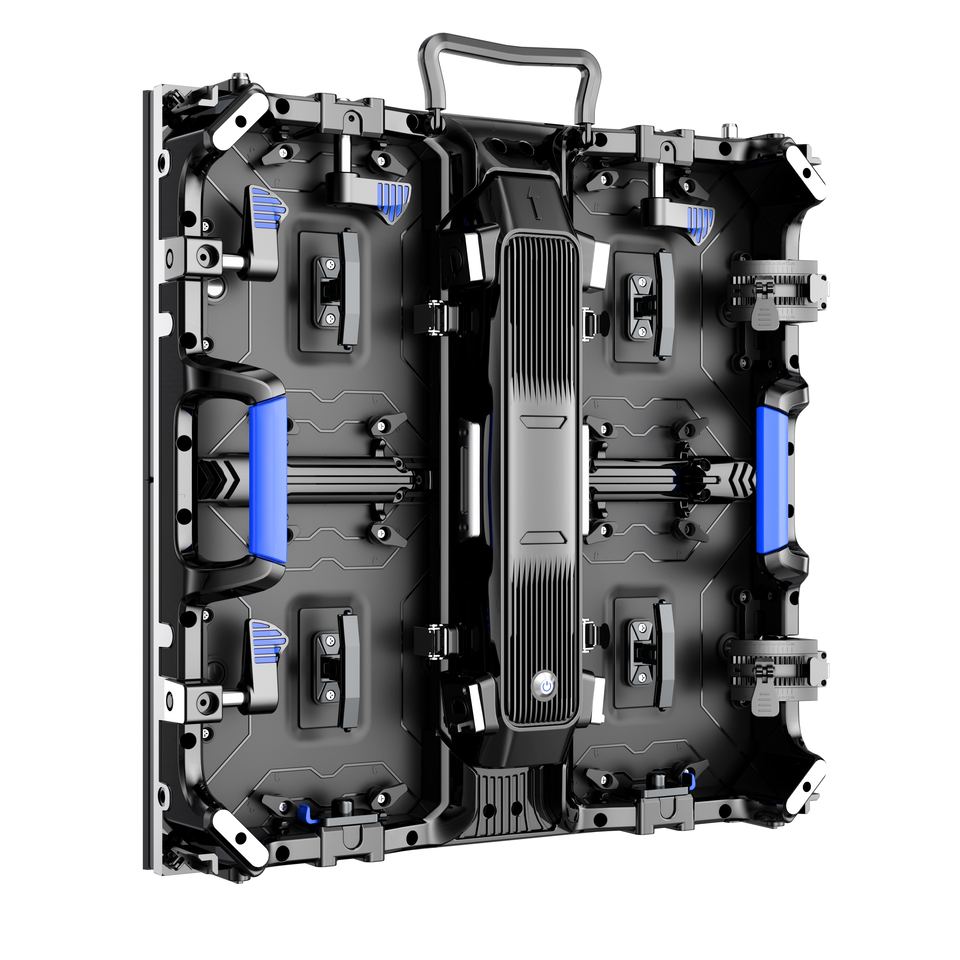

specification:LED cabinet
Remote Device Management:No
supplier type:Original Manufacturer, ODM, OEM
media available:Other
use:Exhibition Hall, Shopping Mall, Welcome Display, LED video wall
Operation System:Windows
Pixel Density:147456
response time:≤5ms
place of origin:Guangdong, China
model number:Aor 2.6 Max
brand name:Aistartech
color:Full Color
Color Depth:14~16Bit
Contrast Ratio:10000:1
Control Method:Computer
Dimensions:500*500mm
installation type:Hanging Stacking
lifespan (hours):10000
Material:Die Casting Aluminum
Mounting type:Hanging, Stacking
panel brand:Aistartech
Pixel Pitch:2.604
Touch Screen:No Touch
Usage environment:Indoor
view angle（h/v）:140°/ 120°
Voltage:100-110V, 200-240V
Pixel Structure (SMD:1515
Module resolution (W*H:72*48
Module weight (kg):2
Box module composition (W*H):2*3
Box resolution (W*H:144*144
Box size (mm:500*500
Box area (㎡):0.25
Regular weight (kg per box):24.5
Pixel density (points /㎡):147456
IP rating:IP65/IP54
Gray scale level (bit:14~16
Color temperature (K:6500-9000
Uniformity of brightness:≥97%
Chromaticity uniformity:±0.003Cx, Cy
Maximum power consumption (W/㎡:750
Average power consumption (W/㎡:248
Power supply requirements:AC100~240V
Frame change frequency (Hz:50&60
Refresh rate (Hz:3840
LED lifespan (hrs):100,000
