Attributes
5-YearWarranty(Year)
Guangdong, ChinaPlace of Origin

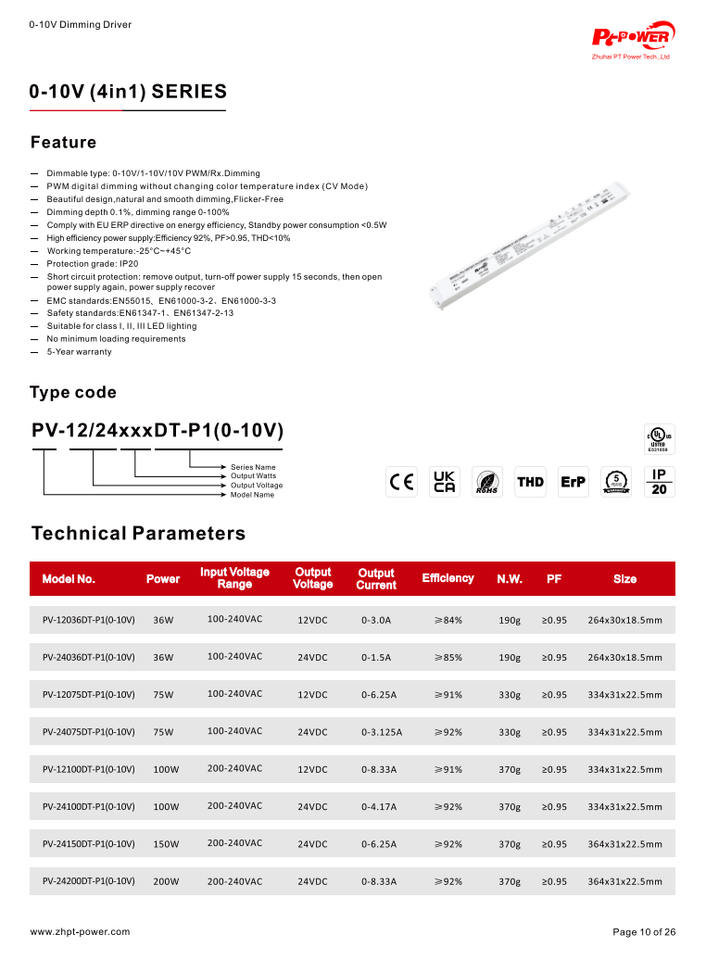

PV-12036DT-P1(0-10V)/PV-24036DT(0-10V)Model Number
Pt PowerBrand Name
Led Lighting, Indoor LightingApplication
PlasticCase Material
Dimming:0-10V/1-10V/10 PWM/Rx.(4 IN 1)
Dimming Mode:0-10V/1-10V/10 PWM/Rx.Dimming
Efficiency:≥85%
Energy Transfer:AC-DC
Input Voltage:100-240V
Lighting solutions service:Lighting And Circuitry Design, Other, Project Installation
Output Current:1.5A/3A
Output Frequency:50-60HZ
Output Power:36W
Output Type:Single
Product Weight（kg）:0.19
Topology:Ac-Dc Converter
Type:IP20 Non-waterproof
OEM/ODM:Yes
IP Rate:IP20 Non-waterproof
PF:>0.95
Working temperature:-25°C~+45°C
Unit size:264*30*18.5mm
Type:Constant Voltage LED Driver
Certification:CE/UKCA/SAA/RoHS
Other suitable application:Class 1, 2, 3 LED Lighting
Safety standard:EN61347-1,EN61347-2-13
EMC standard:EN55015,EN61000-3-2,EN61000-3-3
Protection:Short circuit protection, Overload protection
Output Voltage:DC12V/24V
