Attributes
PowerApplication
Phosphor BronzeContact Material
30 A, 45 ARated Current
Guangdong, ChinaPlace of Origin
T-typeModel Number
FangbeiBrand Name
Gender:Female
Housing Material:PPO
IP Level:IP67
Shape:cylinder
Type:Adapter

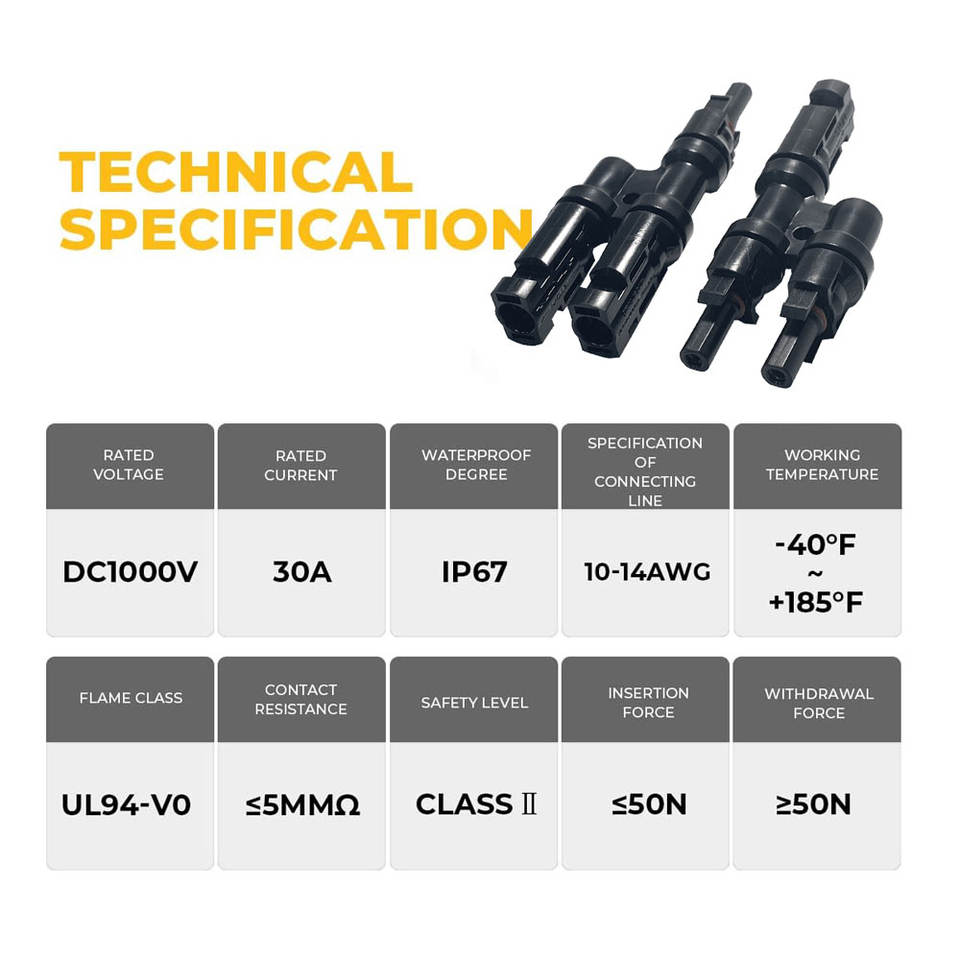

Rated current:30A
Rated voltage:1000V DC(IEC) DC(UL)
Ambient temperature range:-40℃~+90℃
Degree of protection:IP67 mated IP2X unmated
Contact resistance of plug connectors:0.5mΩ
Contact material:Copper, tin plated
Locking system plug connectors:Snap-in(nur/only)
Flame class:UL94-HB/UL94-VO
Cable Size:2.5mm2, 4mm2, 6mm2
