Attributes
±0.8%accuracy
liquidMedium
Variable Area Water Flowmeters, Electromagnetic Meterstype
Germanyplace of origin
/Connectivity
up to 750 l/minFlow Rate
material:Stainless Steel
Measurement Range:up to 750 l/min

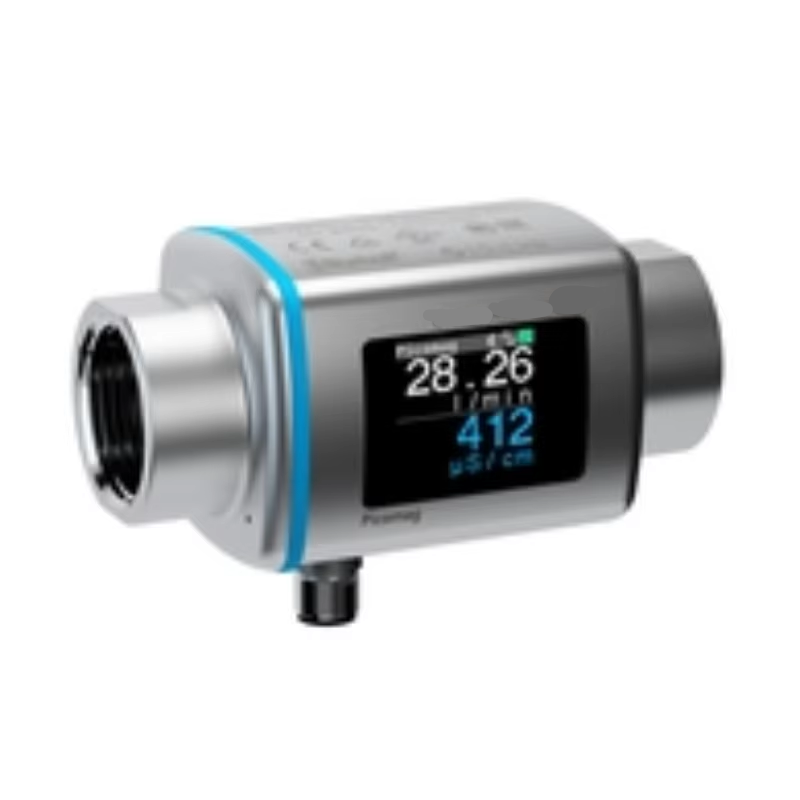

model number:Proline Promag Picomag(DMA)
customized support:OEM
warranty:1 Year
Nominal Diameter Range:DN15 to 50 (1/2 to 2")
Measuring Range:up to 750 l/min
Max. Process Pressure:16 bar
Ambient temperature range:-10 to 60 °C
Measured variables:Volume flow, Temperature, Conductivity
Max. measurement error:Volume flow: +/-0.8% o.r. +/- 0.1% o.f.s
Sensor housing material:1.4404/316L, Polycarbonate
Digital communication:IO-Link
Degree of protection:IP 65/67
Inputs:Status
Selling Units:Single item
