Plastic Pipe Quick Connector 1/4" Hose Barb Fittings Valved In-Line Shut off Female Air Water Valve Quick Disconnect Coupling
Store rating:4.8
(3 reviews)
Attributes
Not RatedPipe Class
Hose BarbConnectivity
Low PressurePressure
otherApplication
SmoothSurface Treatment
FlexiblePipe Features
Technic:Injection Molding
shape:In-Line
System of Measurement:inch
head code:Round
Mounting hole diameter:0.25 in
customized support:OEM, ODM
model number:LFD(0)17002/04/05/06
place of origin:Guangdong, China
brand name:JU
Product name:1/4" Hose Barb Valved In-Line Female Quick Connector
Material:White POM(Acetal)
Application:Analysis, medical, pharmaceutical, food and beverage, laboratory
Seal Ring Material:Buna-N/FKM/EPDM/Silicone, depends on your usage
Valve Options:Valved or Non-Valved (Open Flow)
Barbed Tube ID:1/8"(3.2mm), 1/4"(6.4mm), 5/16"(8mm), 3/8"(9.5mm)ID Tubing
Termination Options:In-Line/Panel Mount/Elbow/NPT Threaded/Push-In type
Temperature Range:32°F - 160°F (0°C - 71°C)
Pressure range:Vacuum to 120 psi, 8.3 bar
Certification:RoHS
Key attributes
Pipe Class
Not Rated
Connectivity
Hose Barb
Pressure
Low Pressure
Application
other
Surface Treatment
Smooth
Pipe Features
Flexible
Technic
Injection Molding
shape
In-Line
System of Measurement
inch
head code
Round
Mounting hole diameter
0.25 in
customized support
OEM, ODM
model number
LFD(0)17002/04/05/06
brand name
JU
place of origin
Guangdong, China
Product name
1/4" Hose Barb Valved In-Line Female Quick Connector
Material
White POM(Acetal)
Application
Analysis, medical, pharmaceutical, food and beverage, laboratory
Seal Ring Material
Buna-N/FKM/EPDM/Silicone, depends on your usage
Valve Options
Valved or Non-Valved (Open Flow)
Barbed Tube ID
1/8"(3.2mm), 1/4"(6.4mm), 5/16"(8mm), 3/8"(9.5mm)ID Tubing
Termination Options
In-Line/Panel Mount/Elbow/NPT Threaded/Push-In type
Temperature Range
32°F - 160°F (0°C - 71°C)
Pressure range
Vacuum to 120 psi, 8.3 bar
Certification
RoHS
Packaging and delivery
Selling Units
Single item
Package size per batch
25X20X10 cm
Gross weight per batch
1.500 kg
Lead time
Product descriptions from the supplier
Warning/Disclaimer
California Proposition 65 Consumer WarningView more
25 - 499 pieces
$320
500 - 999 pieces
$290
>= 1,000 pieces
$250
Variations
Select nowtype: LFD170 In-Line Valved Female Body

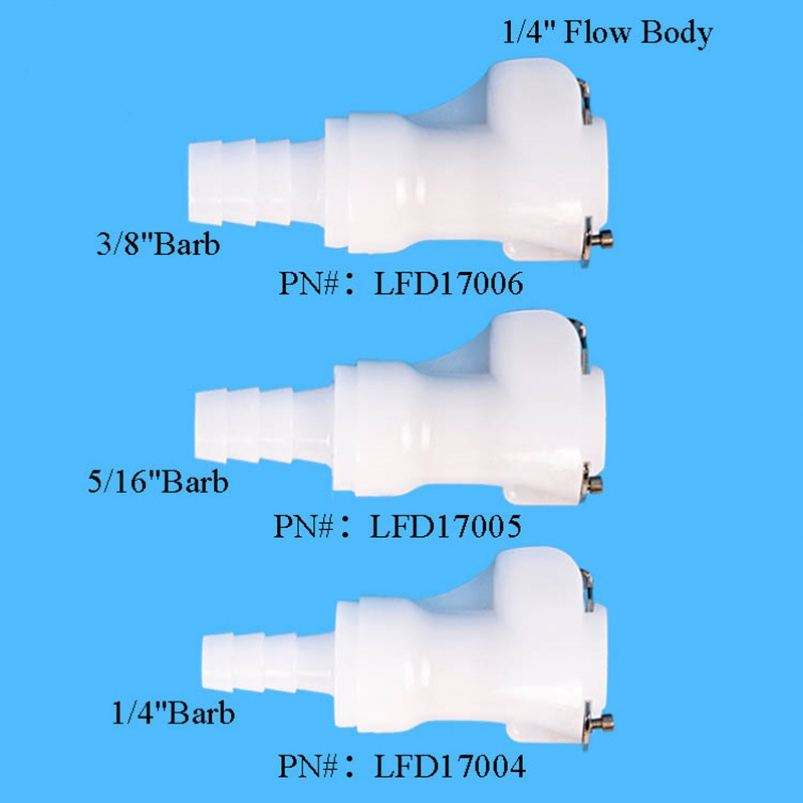

LFD170 In-Line Valved Female Body

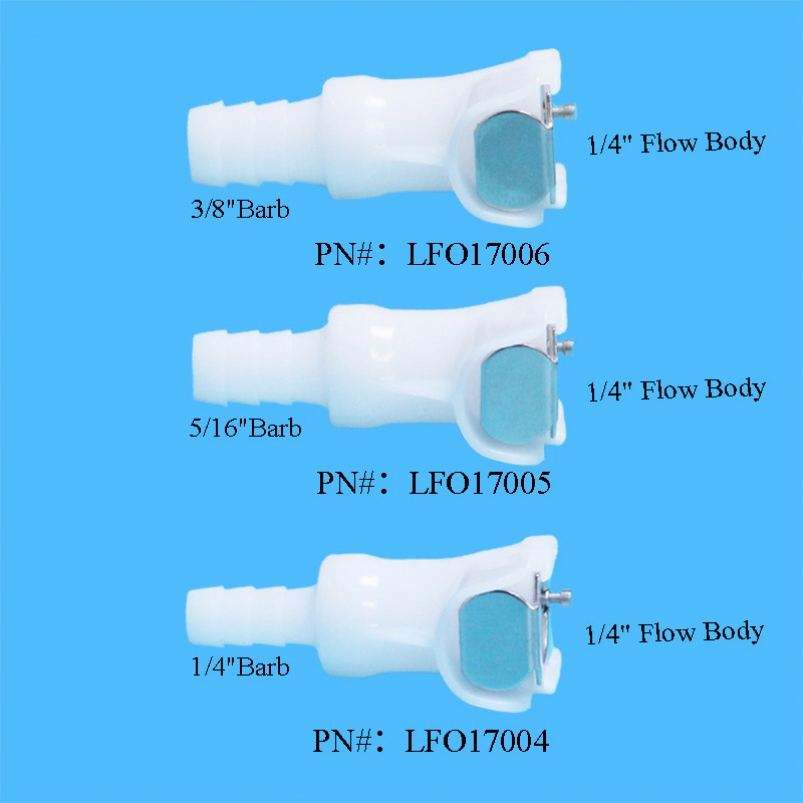

LFO170 In-Line Non-Valved Female Body
pipe size: 1/4"(6.4mm)ID Tube
1/4"(6.4mm)ID Tube
5/16"(8mm)ID Tube
3/8"(9.5mm)ID Tube
1/8"(3.2mm)ID Tube
3/16"(4.8mm)ID Tube
material
Natural POM/Buna-N O-ring
