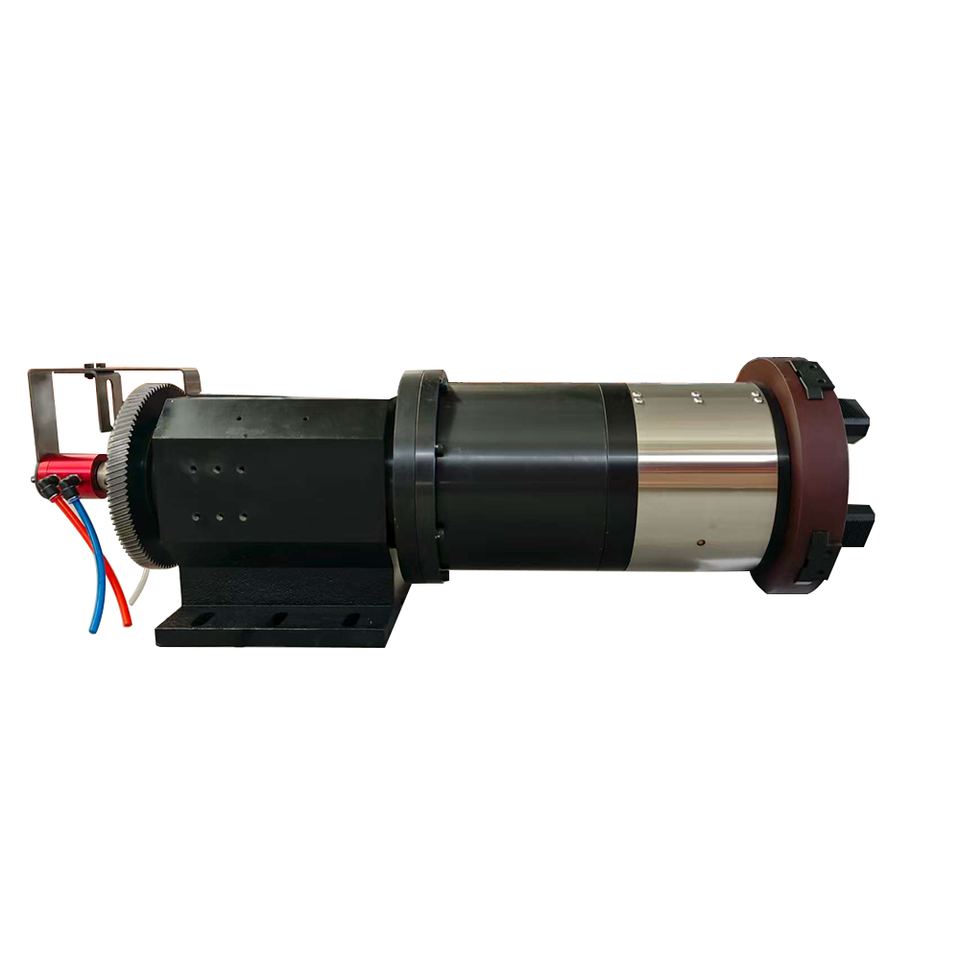

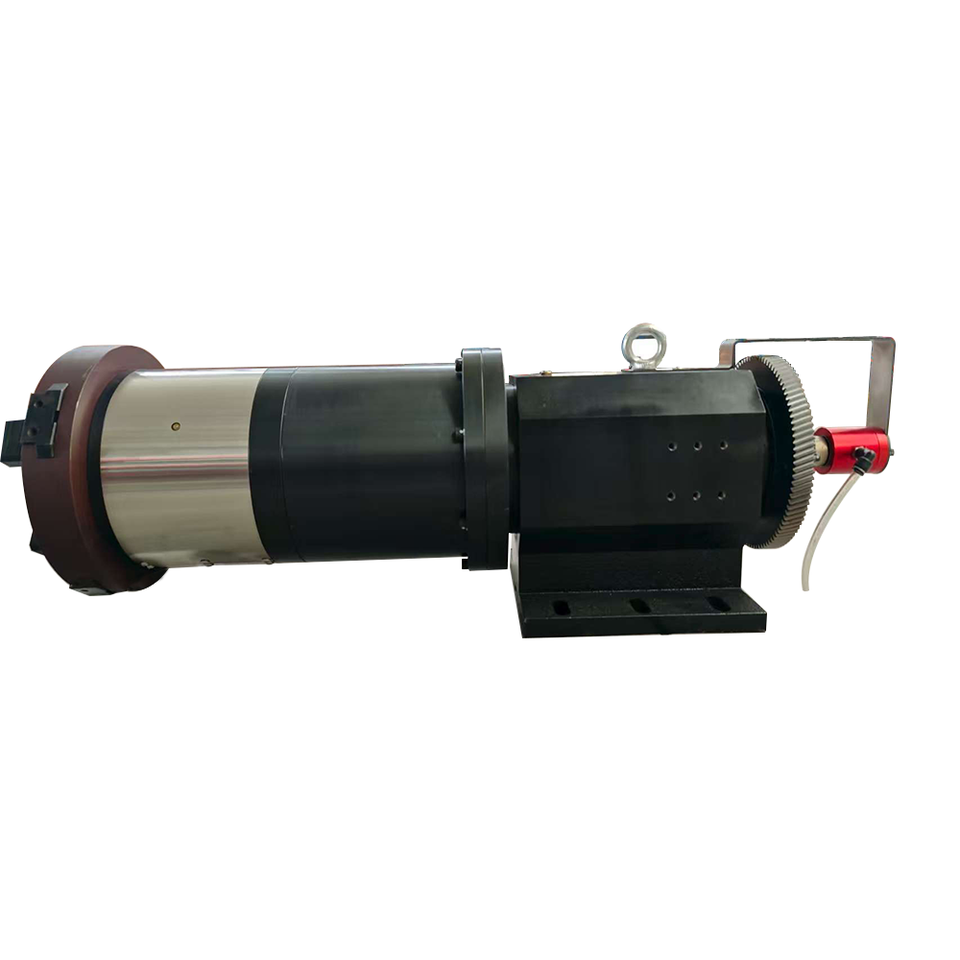

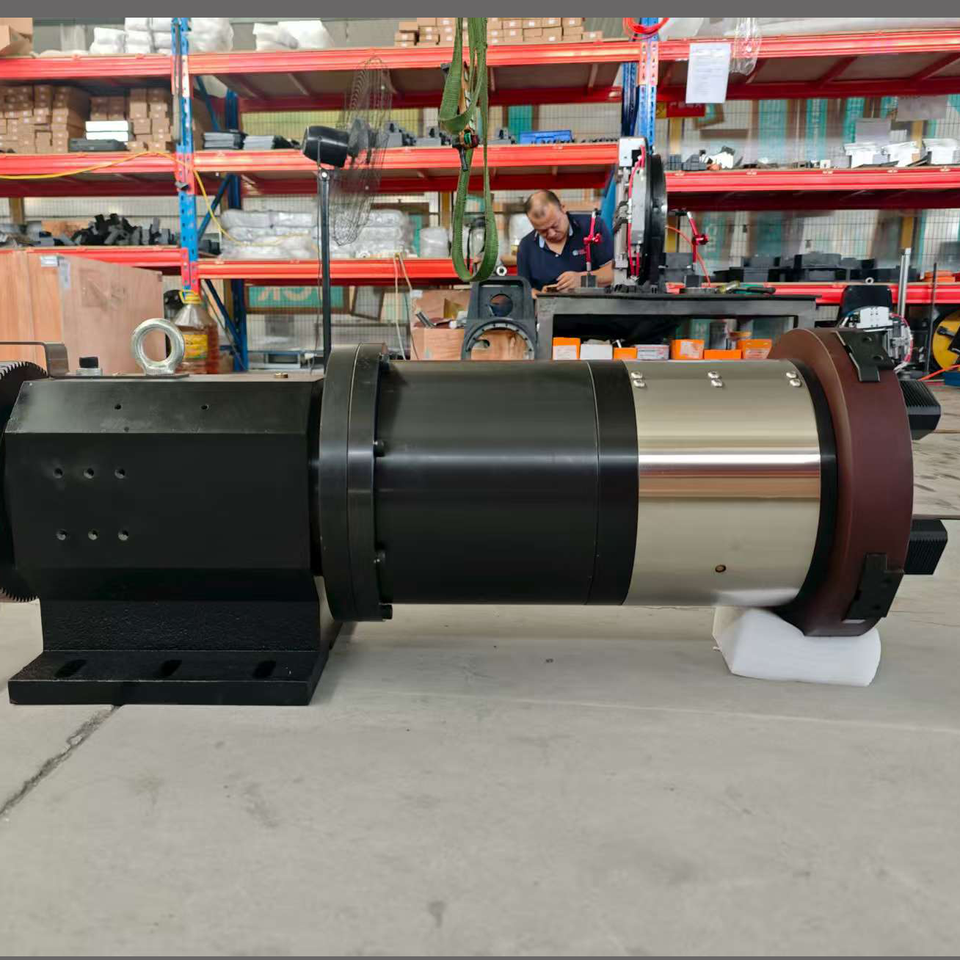

Pneumatic Powered Rear Chuck for Laser Pipe Cutting Machine Clamping Hold Quick Pneumatic Actuation Response
No reviews yet
Attributes
Laser chuckspare parts type
/Wavelength
/Operating Voltage
InterfaceAccessory Type
High-Accuracykey selling points
1 Yearwarranty
place of origin:Shandong, China
weight (kg):143
brand name:Kassel
condition:New
Recommended servo motor:2.4-3KW
Clamping range(mm):20-290
Rotation accuracy(mm):0.05
Repetitive positioning accuracy(mm):0.05
Air pressure range(Mpa):0.1-0.8
Rated speed(r/min):100
Maximum load capacit(kg):400
Transmission ratio:1:2.5
Jaw Stroke(mm):42.5
Total weight(kg):143
Key attributes
spare parts type
Laser chuck
Wavelength
/
Operating Voltage
/
Accessory Type
Interface
key selling points
High-Accuracy
warranty
1 Year
condition
New
place of origin
Shandong, China
weight (kg)
143
brand name
Kassel
Recommended servo motor
2.4-3KW
Clamping range(mm)
20-290
Rotation accuracy(mm)
0.05
Repetitive positioning accuracy(mm)
0.05
Air pressure range(Mpa)
0.1-0.8
Rated speed(r/min)
100
Maximum load capacit(kg)
400
Transmission ratio
1:2.5
Jaw Stroke(mm)
42.5
Total weight(kg)
143
Packaging and delivery
Selling Units
Single item
Lead time
Product descriptions from the supplier
1-3 sets
£1,49362
4-5 sets
£1,47255
≥6 sets
£1,44019
Variations
Select nowmodel number
XDH240
XDS240
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
