Attributes
380 V, 50HZvoltage
GSKcnc control system
Medium Dutymachining capacity
3number of axes
1no. of spindles

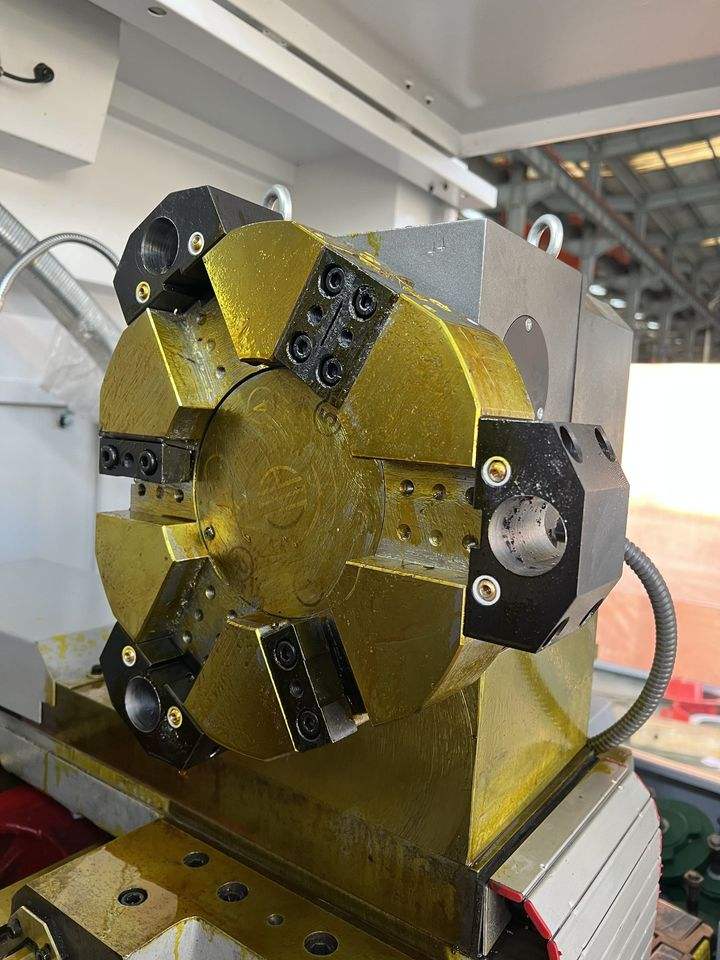

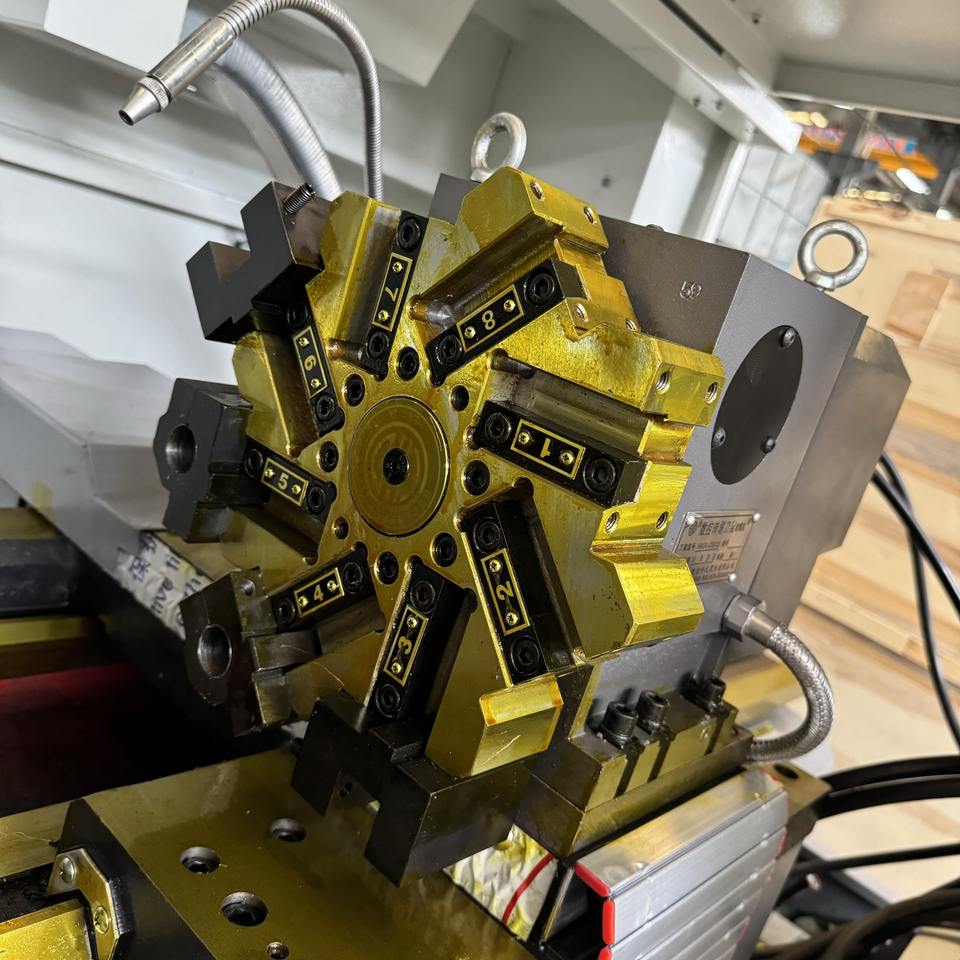

4tool post stations
max. length of workpiece (mm):1000
key selling points:High-Accuracy
repeatability (x/y/z) (mm):0.01
positioning accuracy (mm):0.015
warranty:1 Year
type:Horizontal
machinery test report:Provided
video outgoing-inspection:Provided
max. weight of workpiece(kg):1000
travel (x axis)(mm):200
travel (z axis)(mm):1000
place of origin:Guangdong, China
width of bed (mm):180 mm
dimension(l*w*h):2450*1380*1640mm
brand name:Rowdai

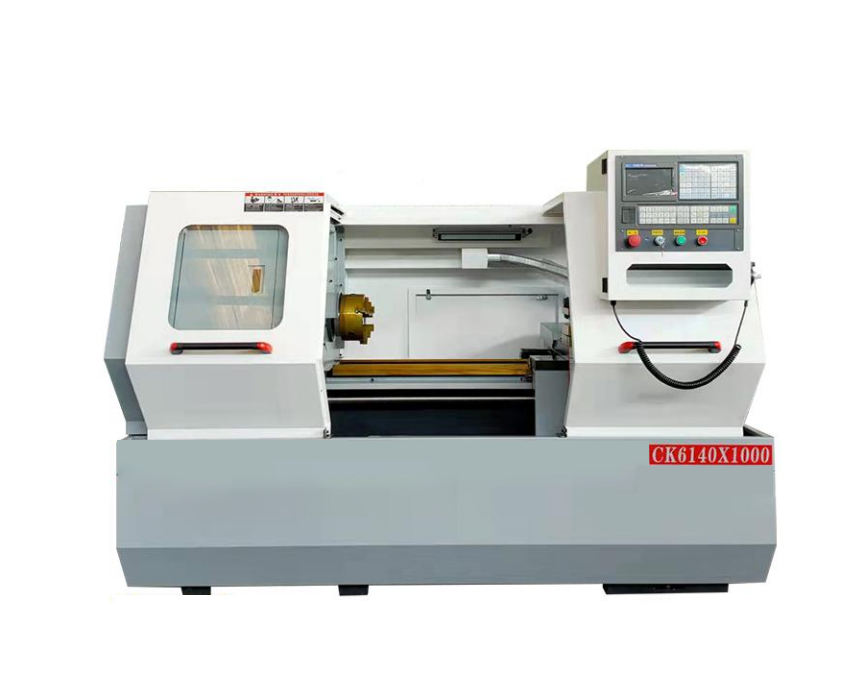

model number:CK6140
weight:1800

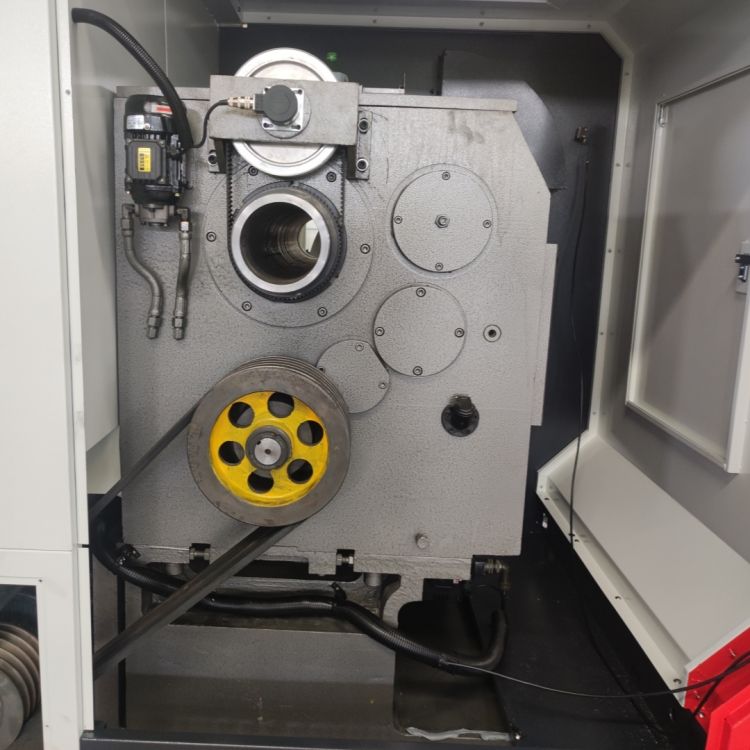

range of spindle speed:125 - 3500
cutting torque:100
Max.cutting diameter:850mm
chuck diameter:400mm
X axis speed:6m/min
Z axis speed:8m/min

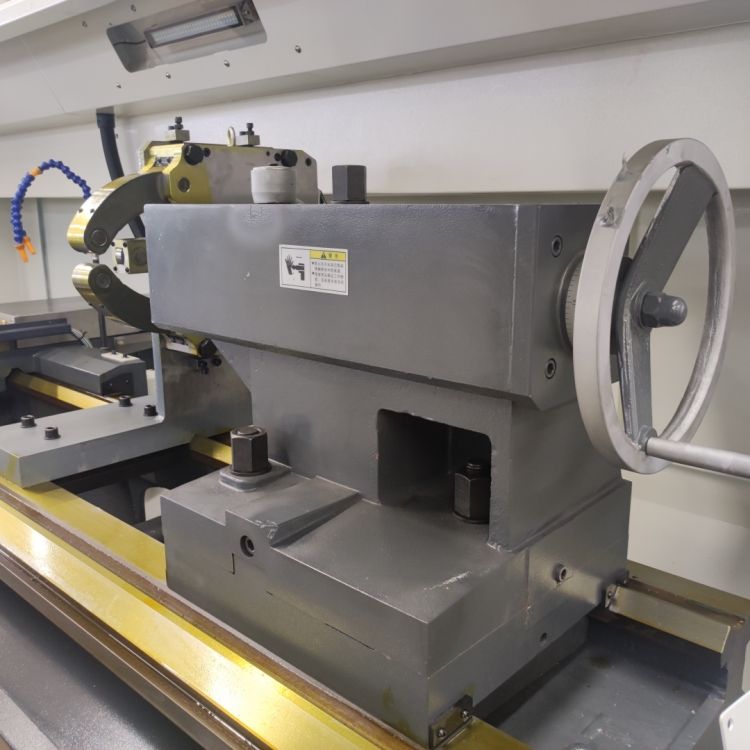

The tailstock diameter:65mm
The tailstock travel:140mm
Taper of spindle taper hole of tailstock:MT4
Knife party size:20*20mm
CNC or Not:CNC
After-sales Service Provided:Online Support
