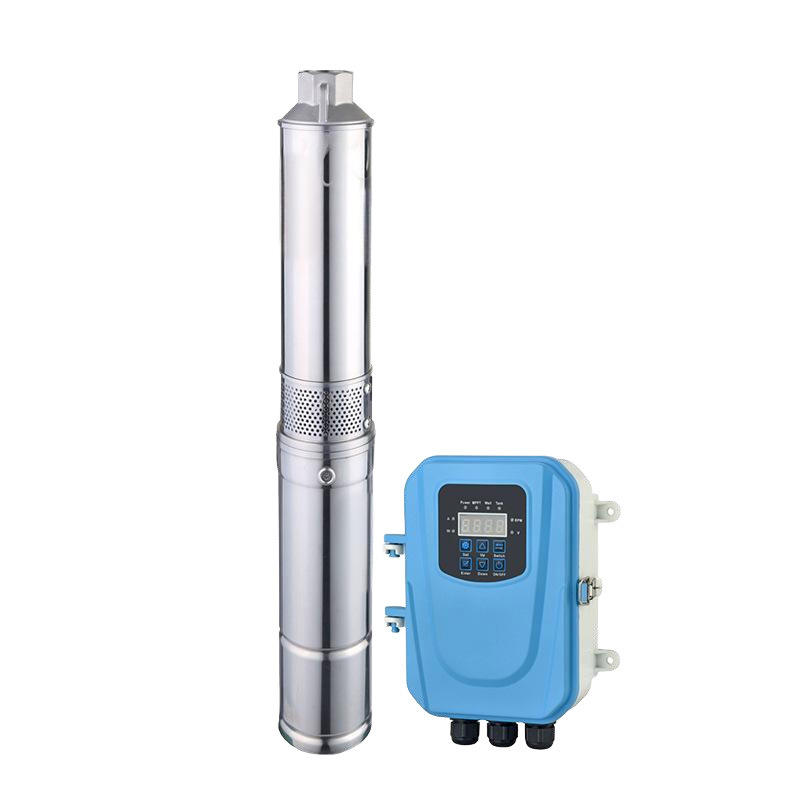

QY 3JC4.5-68-D48/550 Centrifugal Solar Pump DC 48V 825W 68m Head 4.5m/H | High Efficiency Stainless Steel Impeller | Water
Store rating:4.6
(215 reviews)
Attributes
Water Treatment Solutionsapplication
High Pressurepressure
OEM, ODM, Colorcustomized support
1 Yearswarranty
Fujian, Chinaplace of origin
Solar Poweredpower source
structure:Multistage Pump
model number:3JC4.5-68-D48/550
brand name:QY
Applicable temperature:-10℃ ~ 60℃
cable length:3 m
Chemical Compatibility:Water
Connection Type:Threaded Connection
Control Method:Solar MPPT Controller
Discharge Pipe Size:1.25"
Displacement:N/A
Dwell time:N/A
Filter material:Stainless Steel Mesh
Flow Meter Specification:N/A
Flow Rate:4.5m³/h
Hardness:Hardened Stainless Steel (HRC 40-45)
horsepower:0.5 HP
Impeller Material:Stainless Steel
Import Size:1.25"
Inlet Height:68
Max Flow Rate:4.5m³/h
Max Pressure:0.68MPa
Membrane material:N/A
motor:DC Permanent Magnet Brushless Motor
outlet size:1.25" (32mm)
Outlet Type:Male Threaded Outlet
Outlet Water Oil Content:0
Sealing Material:PTFE + Stainless Steel
suction head:68
Surface Treatment:Anti-corrosion Electroplating
Material:Stainless Steel (304/316)
Name:3JC4.5-68-D48/550
Interface type:Threaded Interface
Rated Flow:4.5m³/h
Rated Head:68m
Power:825W
voltage:DC 48V
Outlet pressure ( Mpa ):0.68MPa
Key attributes
application
Water Treatment Solutions
pressure
High Pressure
customized support
OEM, ODM, Color
warranty
1 Years
place of origin
Fujian, China
power source
Solar Powered
structure
Multistage Pump
model number
3JC4.5-68-D48/550
brand name
QY
Applicable temperature
-10℃ ~ 60℃
cable length
3 m(9.84ft)
Chemical Compatibility
Water
Connection Type
Threaded Connection
Control Method
Solar MPPT Controller
Discharge Pipe Size
1.25"
Displacement
N/A
Dwell time
N/A
Filter material
Stainless Steel Mesh
Flow Meter Specification
N/A
Flow Rate
4.5m³/h
Hardness
Hardened Stainless Steel (HRC 40-45)
horsepower
0.5 HP
Impeller Material
Stainless Steel
Import Size
1.25"
Inlet Height
68
Max Flow Rate
4.5m³/h
Max Pressure
0.68MPa
Membrane material
N/A
motor
DC Permanent Magnet Brushless Motor
outlet size
1.25" (32mm)
Outlet Type
Male Threaded Outlet
Outlet Water Oil Content
0
Sealing Material
PTFE + Stainless Steel
suction head
68
Surface Treatment
Anti-corrosion Electroplating
Material
Stainless Steel (304/316)
Name
3JC4.5-68-D48/550
Interface type
Threaded Interface
Rated Flow
4.5m³/h
Rated Head
68m
Power
825W
voltage
DC 48V
Outlet pressure ( Mpa )
0.68MPa
Packaging and delivery
Selling Units
Single item
Single package size
85X22X25 cm
Single gross weight
30.000 kg
