Attributes
Water Treatment Solutionsapplication
High Pressurepressure
OEM, ODM, Colorcustomized support
1 Yearswarranty
Fujian, Chinaplace of origin
Electricpower source
structure:Multistage Pump
model number:4SDM3/14
brand name:QY
cable length:40m
Chemical Compatibility:Water
Discharge Pipe Size:1-1/2 in
horsepower:1.5 HP
motor:Single-Phase Motor, Three-Phase Motor
outlet size:32mm
Sealing Material:Stainless Steel, PTFE

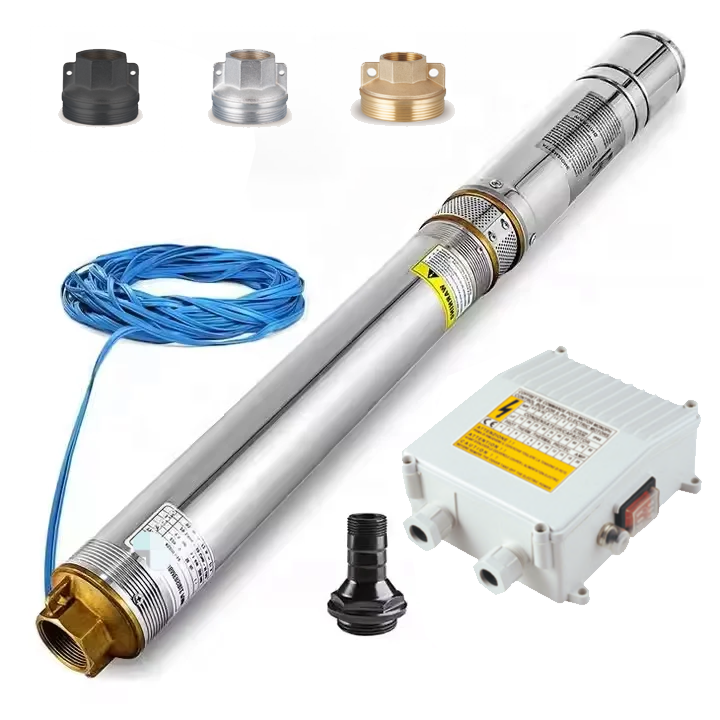

Name:Deep Well Submersible Motor Water Pump
Interface type:Wire Type
Rated Flow:6.3m³/h
Rated Head:108m
Power:1.1KW
voltage:220V50Hz
Outlet pressure ( Mpa ):10.8Mpa

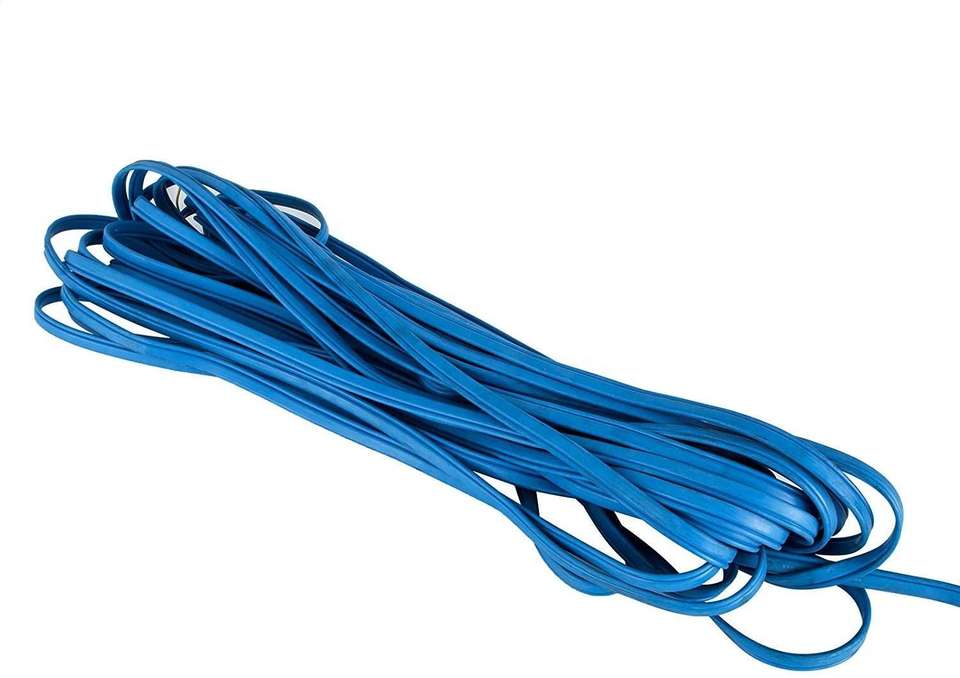

Product Specifications 2:40-meter flat blue line
Application Limits 1:Maximum fluid temperature up to +35℃
Application Limits 2:Maximum sand content:0.25%
Application Limits 3:Maximumimmersion:90m.
Application Limits 4:Maximum well diameter:4"
Motor Enclosure:totally enclosed fan cooled
Selling Units:Single item
Single package size:120X18X12 cm
Single gross weight:18.000 kg
