Attributes
Water Treatment Solutionsapplication
High Pressurepressure
OEM, ODM, Colorcustomized support
1 Yearswarranty
Fujian, Chinaplace of origin
Electricpower source
structure:Multistage Pump
model number:3SDMB1.8/14
brand name:QY
Chemical Compatibility:Water
Discharge Pipe Size:1-1/2 in
horsepower:0.5 HP
motor:Single-Phase Motor, Three-Phase Motor
outlet size:25mm
Sealing Material:Stainless Steel, PTFE

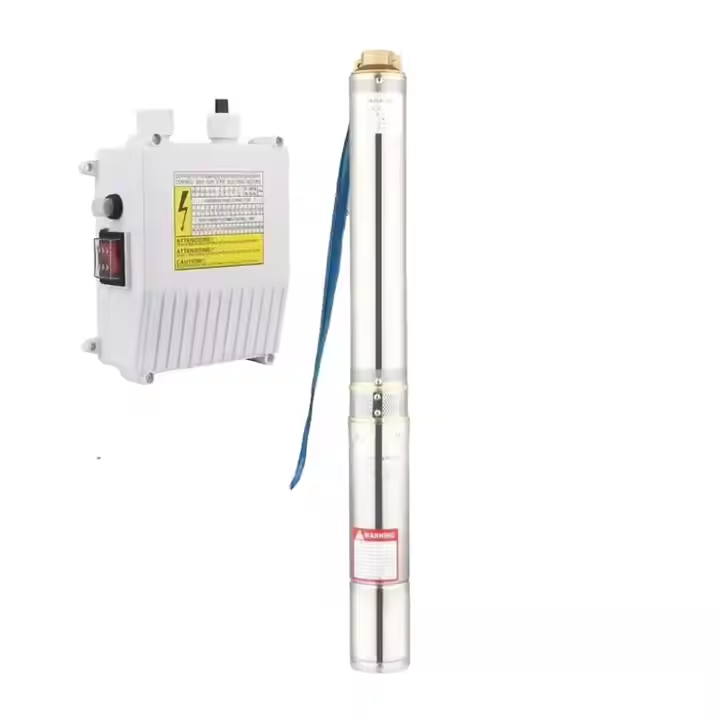

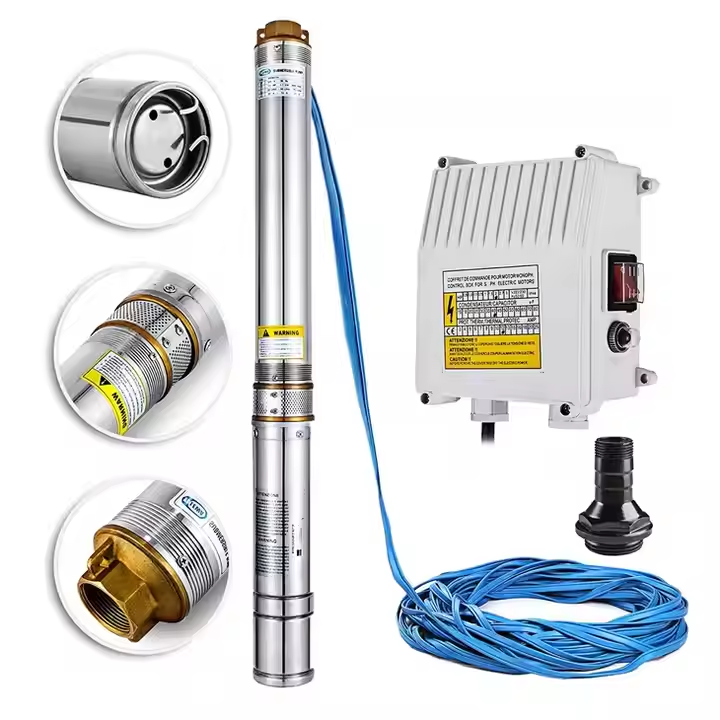

Name:Deep Well Submersible Motor Water Pump
Interface type:Wire Type
Rated Flow:3.5m³/h
Rated Head:63M
Power:0.37KW
voltage:230/50Hz
Outlet pressure ( Mpa ):5.0Mpa
Application Limits 1:Maximum fluid temperature up to +35℃
Application Limits 2:Maximum sand content:0.25%
Application Limits 3:Maximumimmersion:90m.
Application Limits 4:Maximum well diameter:4"
Motor Enclosure:totally enclosed fan cooled
