Attributes
Water Treatment Solutionsapplication
High Pressurepressure
ODMcustomized support
1 Yearswarranty
Fujian, Chinaplace of origin
Electricpower source
structure:Single-stage Pump
model number:MQ400L INOX2
brand name:QY
Applicable temperature:35°C
cable length:8m
Chemical Compatibility:Water
Connection Type:Flexible Hose Connection
Control Method:Semi-Automatic Control, Fully Automatic Control

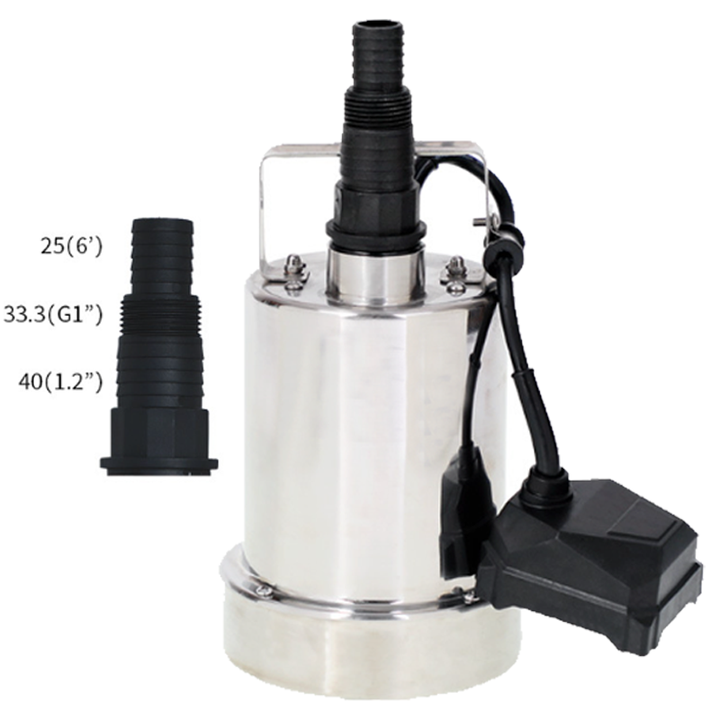

Discharge Pipe Size:40mm 33mm
Displacement:7m³/h
Filter material:Polyester + Non-woven Fabric
Flow Meter Specification:1-10m³/h
Flow Rate:>10,000 L/min
Hardness:40Shorea
horsepower:400w
Impeller Material:Engineering Plastic
Import Size:Dn25
Inlet Height:500mm
Max Flow Rate:0.1 - 10 m³/h
Max Pressure:0.1 -2 Bar
motor:SUS304
outlet size:40mm, 33mm
Outlet Type:Universal Style
Surface Treatment:Spraying
Name:MQ400L INOX2
Rated Flow:7m³/h
Rated Head:8.8m
Power:400W
voltage:220v/50HZ
Application Limits 1:Maximum liquid temperature +35'℃
