Attributes
Water Treatment Solutionsapplication
High Pressurepressure
ODMcustomized support
1 Yearswarranty
Fujian, Chinaplace of origin
Electricpower source
structure:Single-stage Pump
model number:QDD10-9-1100
brand name:QY
cable length:10.3
Chemical Compatibility:Water
Connection Type:Flexible Hose Connection
Control Method:Semi-Automatic Control, Fully Automatic Control
Discharge Pipe Size:1 in, 1",3/4"
Displacement:10m³/h
Filter material:Polyester + Non-woven Fabric
Flow Meter Specification:1-10m³/h
Flow Rate:>10,000 L/min
Hardness:40Shorea
horsepower:1100
Impeller Material:Engineering Plastic
Import Size:Dn25
Inlet Height:500mm
Max Flow Rate:0.1 - 10 m³/h
Max Pressure:0.1 -2 Bar
motor:SUS304
outlet size:25MM
Outlet Type:Universal Style
Surface Treatment:Spraying

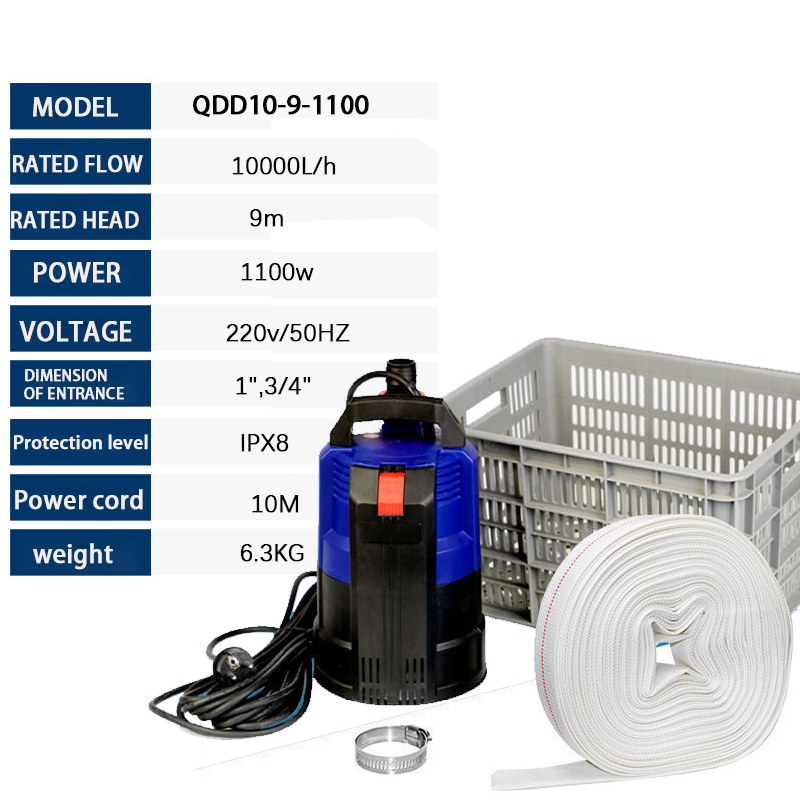

Name:QDD10-9-1100
Rated Flow:10m³/h
Rated Head:9m
Power:1100W
voltage:220v/50HZ
Application Limits 1:Maximum liquid temperature +35'℃
