RFID UHF Integrated Reader/Chief of the watch, raise the UHF antenna/Design optimization of UHF antenna sensors
No reviews yet
Attributes
wiredConnection
UHF RFID Integrated readerBrand Name
UHF RFID Integrated readerType
VI-Q047Model Number
Guangdong, ChinaPlace of Origin
Korea PR9200 or Fudan Micro dedicated RF chipRF Chips
Air Port Protocol:EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
Operating Frequency:902~928MHz or 865~868MHz
RF Output Power:13~30dBm±1dBm
Receiving sensitivity:<-70dBm
Peak speed of inventory tag:>200 times/sec
Read distance:300~400cm (depending on tag)
Tag RSSI:Support
Antenna:6dbi circularly polarized antenna
Communication Interface:RJ45, RS232, RS485
Communication Protocol:ModbusTCP, ModbusRTU, TCP/UDP protocols
WiFi (optional):Support IEEE 802.11 n/b/g
Reliable firmware upgrade:Expandable upgrade mechanism
General purpose inputs/outputs (GPIO):2 inputs and 2 outputs

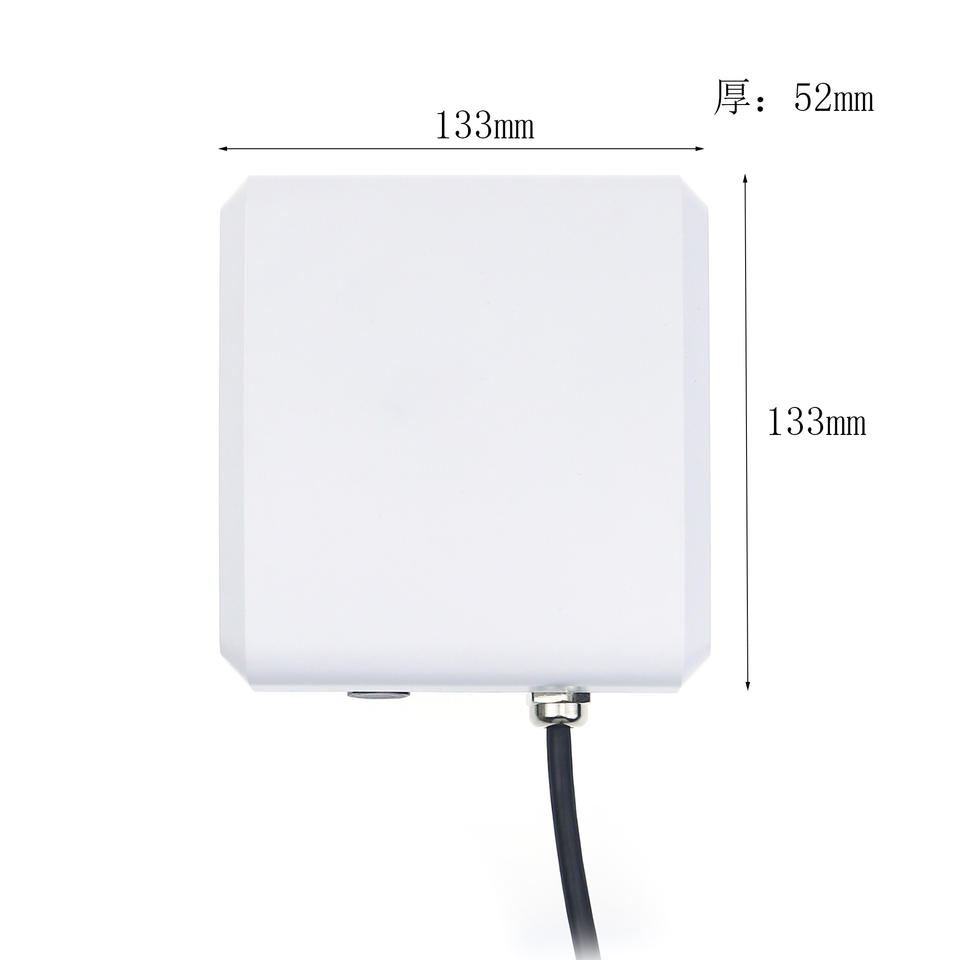

Dimension:133(L)*133 (W)*51.8(H)mm
Power supply:Operating voltage DC9~24V
Communication Harness:ndustrial connection tail line one tow five
Weight:Approx. 1.5 kg (complete set)
Protection Rating:IEC IP67
Key attributes
Connection
wired
Brand Name
UHF RFID Integrated reader
Type
UHF RFID Integrated reader
Model Number
VI-Q047
Place of Origin
Guangdong, China
RF Chips
Korea PR9200 or Fudan Micro dedicated RF chip
Air Port Protocol
EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
Operating Frequency
902~928MHz or 865~868MHz
RF Output Power
13~30dBm±1dBm
Receiving sensitivity
<-70dBm
Peak speed of inventory tag
>200 times/sec
Read distance
300~400cm (depending on tag)
Tag RSSI
Support
Antenna
6dbi circularly polarized antenna
Communication Interface
RJ45, RS232, RS485
Communication Protocol
ModbusTCP, ModbusRTU, TCP/UDP protocols
WiFi (optional)
Support IEEE 802.11 n/b/g
Reliable firmware upgrade
Expandable upgrade mechanism
General purpose inputs/outputs (GPIO)
2 inputs and 2 outputs
Dimension
133(L)*133 (W)*51.8(H)mm
Power supply
Operating voltage DC9~24V
Communication Harness
ndustrial connection tail line one tow five
Weight
Approx. 1.5 kg (complete set)
Protection Rating
IEC IP67

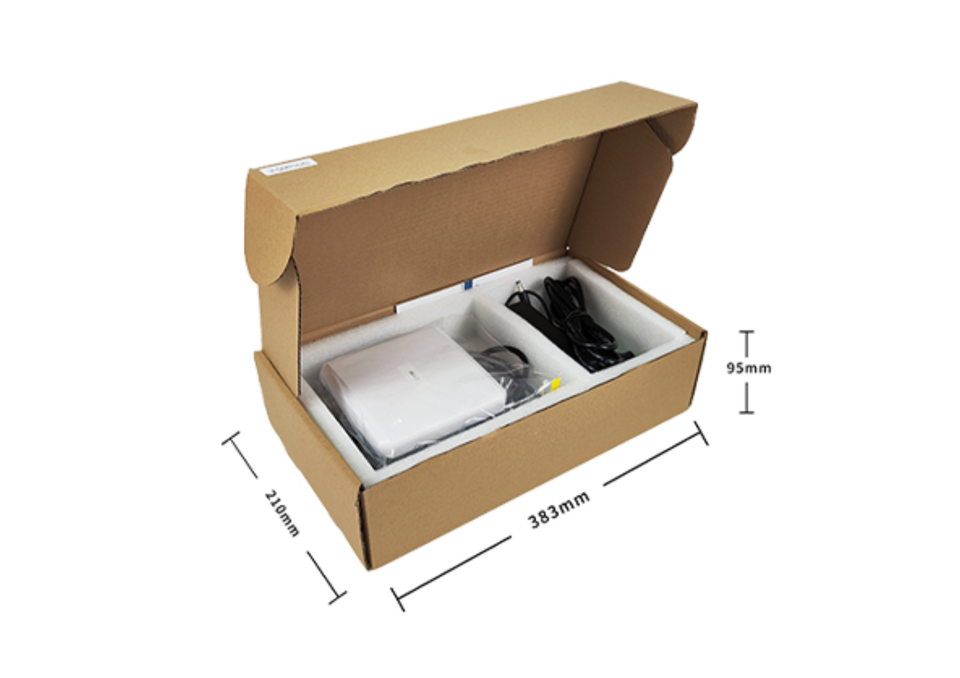

Packaging and delivery
Selling Units
Single item
Lead time
Product descriptions from the supplier
Minimum order quantity: 1 piece
$140
Variations
Select nowSpecification
UHF RFID Integrated reader
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
