Attributes
AMounting Type
By Actual Production DateManufacturing Date Code
FRS-10B14C3Model Number
SZFASTBrand Name
used in sensor and switchUsage
Sense Position With Magnet/Counting/Anti theftDescription
Type:Reed Switch
Place of Origin:Hubei, China
Series:Glass Tube/Plastic Housing, Metal Leads, 2 Pins
Features:Sense Position With Magnet/Counting/Anti theft
Theory:Reed Contact
Output:Switching Signal ON/OFF
Model No.:FRS-10B14C3
Contact Rating-max.-Max:1W
Switching Voltage-Max:24V
Switching Current-Max:0.3A
Contact Resistance-Max:200 mOhms Max.
Break Down Voltage-Min:150VDC/110VAC
Contact Form:A

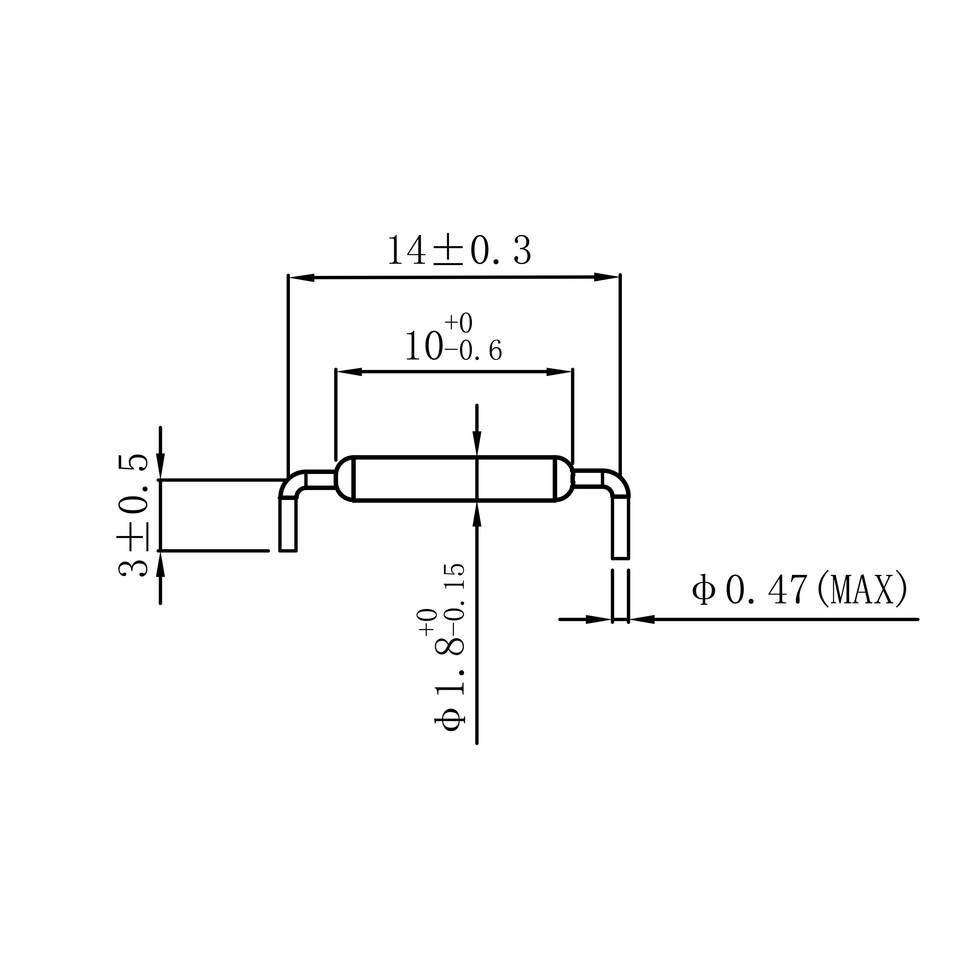

Size:1.8X10/14mm
Package:2500pcs/reel

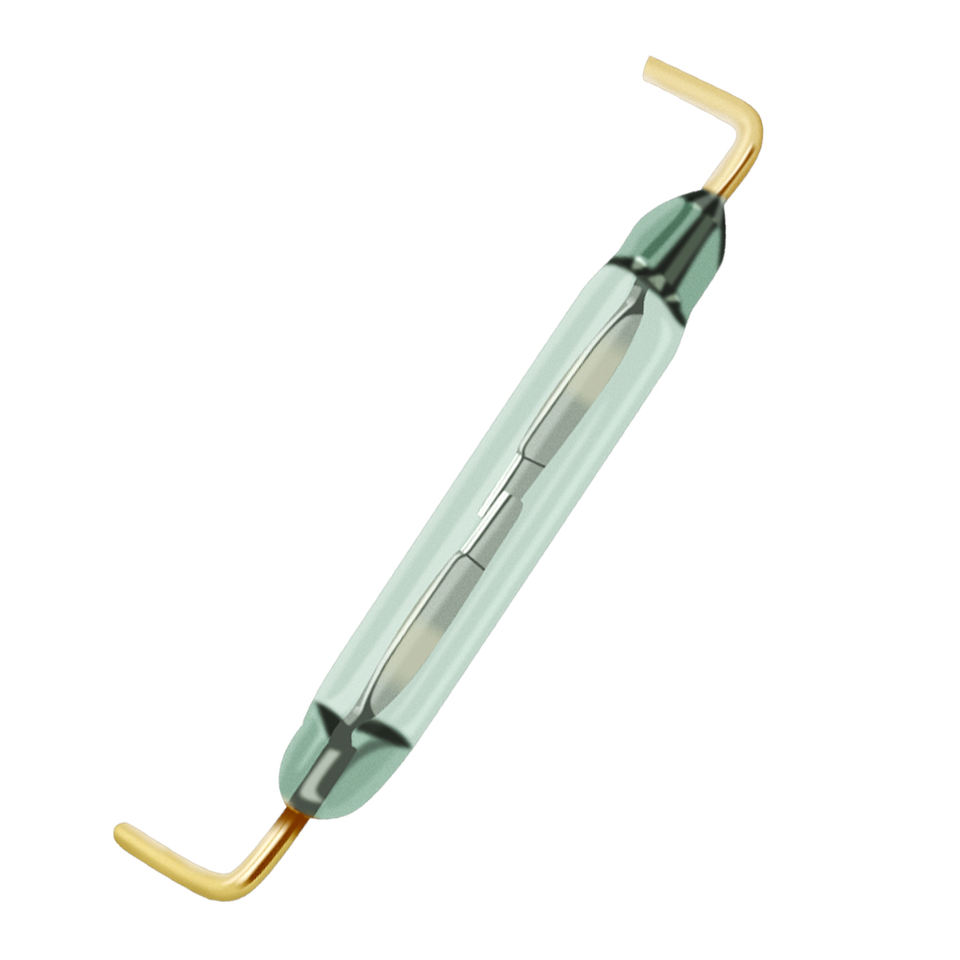

Product name:Bend glass reed switch
