Ridge Capping Rollforming Equipment/ Ridge Cap Tile Forming Machine/ridge Cap Colour Coated Tile Machine Baffle Ceiling
No reviews yet
Attributes
Tile Forming MachineType
Colored Glaze SteelTile Type
419mmFeeding width
0.3-0.6mmRolling thinckness
380V 50Hz 3phasesVoltage
Motor, BearingCore Components
Use:ROOF
Warranty:1 Year
Video outgoing-inspection:Provided
Machinery Test Report:Provided
Key Selling Points:Easy To Operate
Place of Origin:Henan, China
Weight:3500
Brand Name:Wadley
Dimension(L*W*H):7.8*1*1.5M

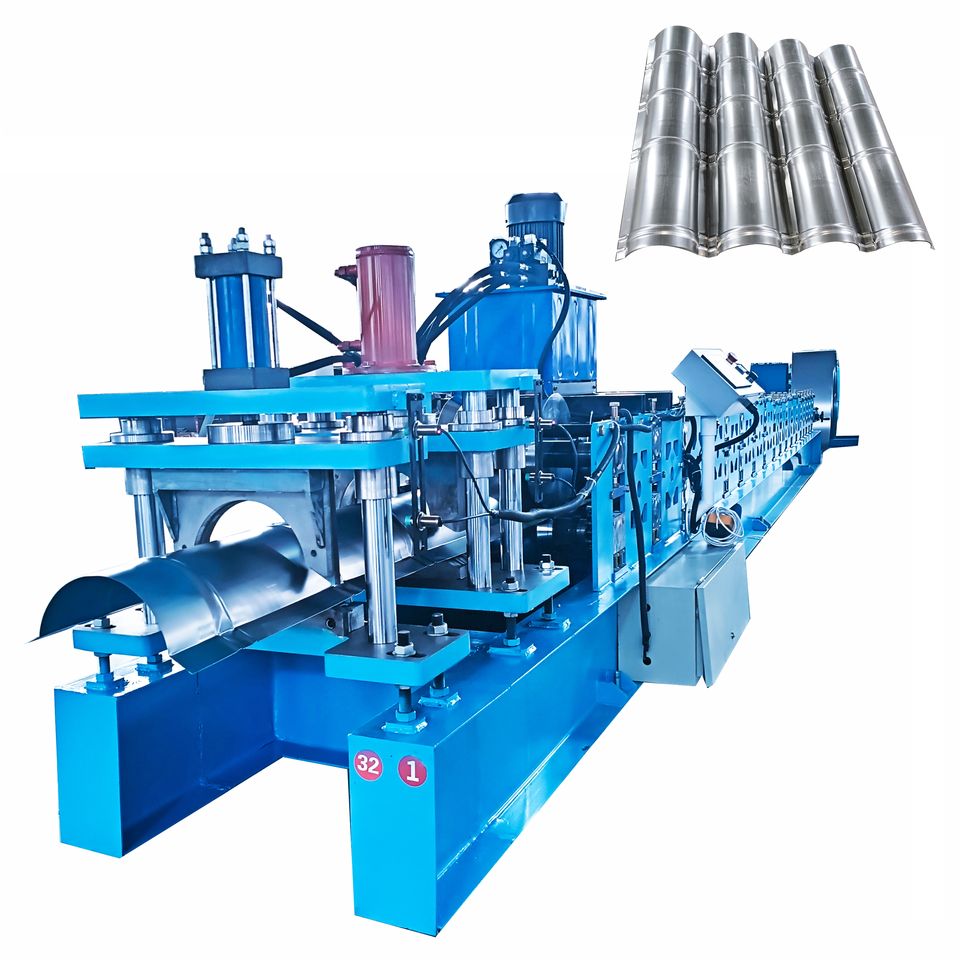

Name:Ridge cap forming machine
Application:Roof Sheet Production
Raw material:Color Steel Sheet
Thickness:0.3--0.6mm
Frame:350H Steel Welding
Roller material:Cr 12
Shaft material:High Grade No.45 Forged
Cutting blade material:DC53
Control system:PLC(imported Brand)
Decoiler:Manual Decoiler
Key attributes
Type
Tile Forming Machine
Tile Type
Colored Glaze Steel
Feeding width
419mm(16.50in)
Rolling thinckness
0.3-0.6mm(0.01-0.02in)
Voltage
380V 50Hz 3phases
Core Components
Motor, Bearing
Use
ROOF
Warranty
1 Year
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Key Selling Points
Easy To Operate
Place of Origin
Henan, China
Weight
3500
Brand Name
Wadley
Dimension(L*W*H)
7.8*1*1.5M(25.59*3.28*4.92ft)
Name
Ridge cap forming machine
Application
Roof Sheet Production
Raw material
Color Steel Sheet
Thickness
0.3--0.6mm
Frame
350H Steel Welding
Roller material
Cr 12
Shaft material
High Grade No.45 Forged
Cutting blade material
DC53
Control system
PLC(imported Brand)
Decoiler
Manual Decoiler
Packaging and delivery
Selling Units
Single item
Lead time
Customization options
Name plate(+ from /Min. order: 5 sets)
View details
Product descriptions from the supplier
Customizable
Minimum order quantity: 1 set
£6,80502
Variations
Select nowProduction Capacity: 15 m/min(49.21ft/min)
15 m/min(49.21ft/min)
Model Number: 312 round ridge cap machine
312 round ridge cap machine
Power(W)
4 KW(5.36hp)
Customization options
Name plate (Min. order: 5 sets)
