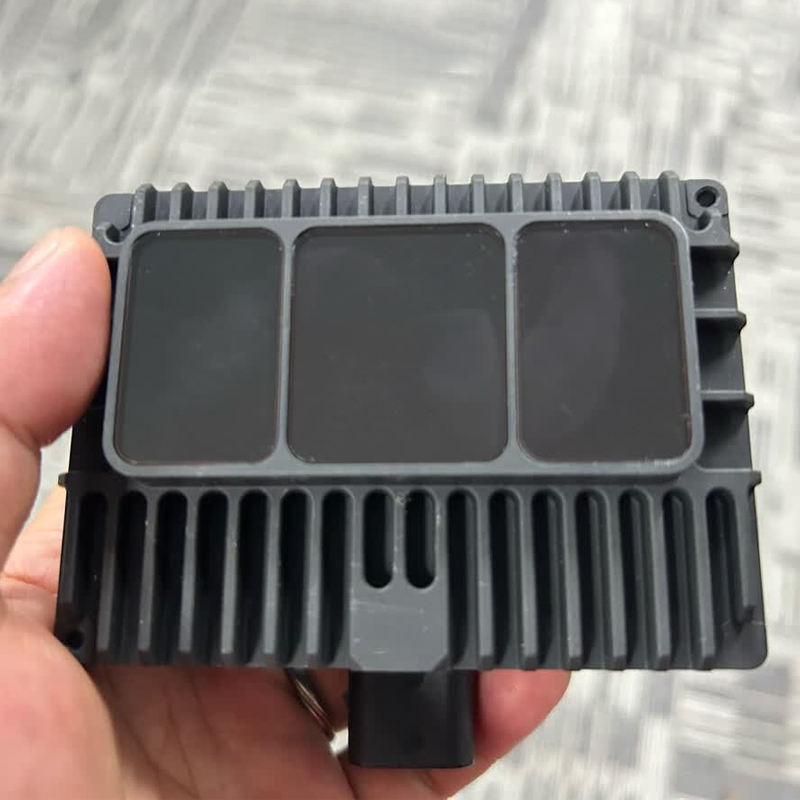

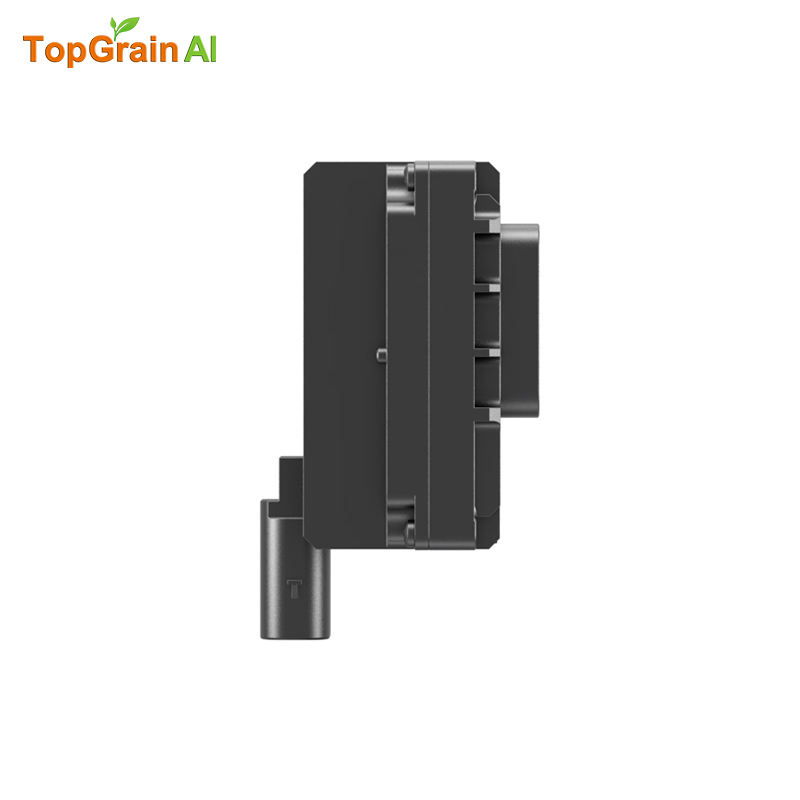

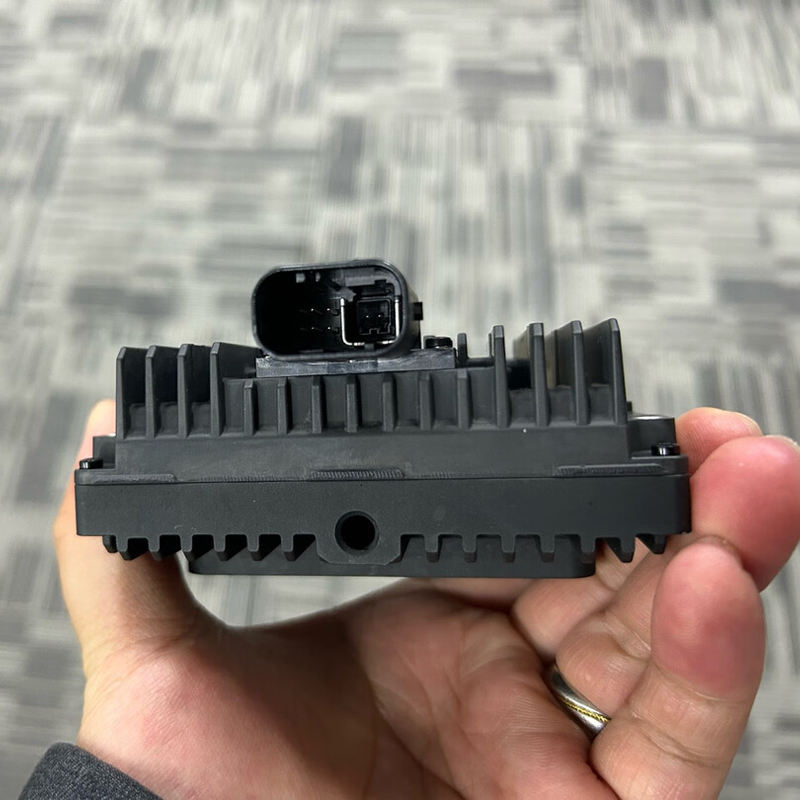

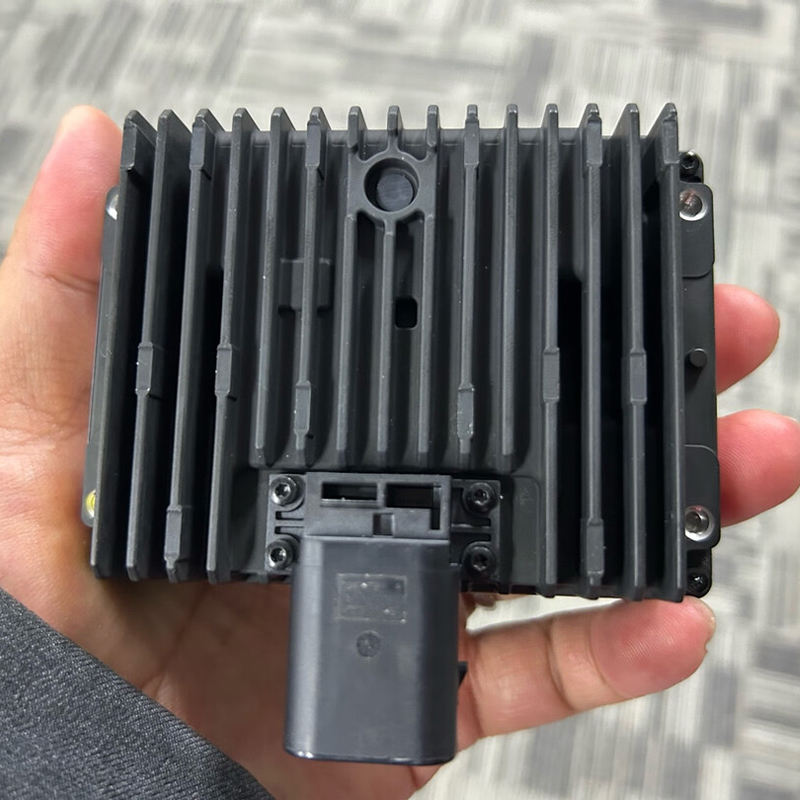

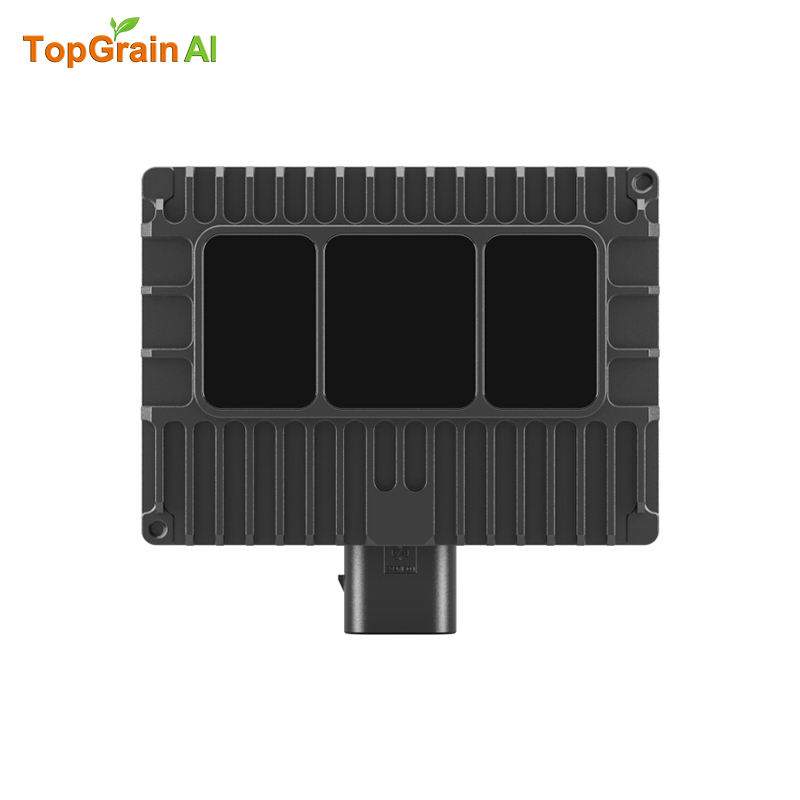

RoboSense E1R Solid State LiDAR 120°x90° Ultra-Wide FOV Flash LiDAR Sensor 75m Range for Blind Spot Detection & Robot Navigation

No reviews yet
£73661-81929
Minimum order quantity: 1 piece
Sample price: £736.61-819.29
Select now

Specification

E1R (Device Only)

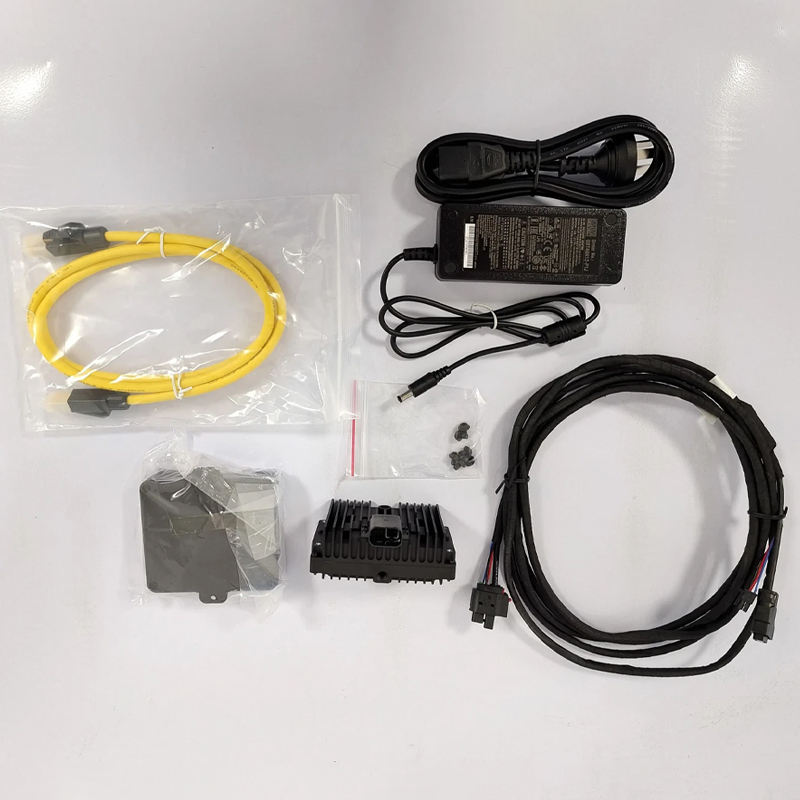

E1R+3.5m Accessory Kit
E1R+8m Accessory Kit
Customization options
Customized packaging (Min. order: 200 pieces)

Key attributes

Mounting Type

Embedded installation

Manufacturer Part Number

E1R

Brand Name

Robosense

Usage

Automatic Driving,ADAS,Robot,Train,Vehicle

Output

10W

Description

Original Robosense 144 beam LiDAR

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Easy Return

Make free local returns for defects on qualifying purchases

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Finance Service

4 interest-free payments with

Key attributes

Usage
Automatic Driving,ADAS,Robot,Train,Vehicle
Theory
Launch laser beam and receive its reflected signal
Output
10W
Interface
Other
Resolution (Bits)
Other
Application
Other
Technology
Other
Function
Other
Output Function
Other
Amplifier Type
940nm laser transceiver scheme
Manufacturer Part Number
E1R
Operating Temperature
-40°C ~ +85°C
Description
Original Robosense 144 beam LiDAR
Mounting Type
Embedded installation
Brand Name
Robosense
Place of Origin
Guangdong, China
Series
E1R
Brand
Robosense LiDAR
Voltage - Supply
9V - 16V
Output Type
10W
Current - Supply
Other
Features
High precision, high resolution, etc.
Current - Supply (Max)
Other
Packaging
Other
Frequency
Other
Output Configuration
Other
Current
Other
Voltage Rating
Other
Operating Force
Other
Oxygen Range
Other
Humidity Range
Other
Size
Other
Size / Dimension
35*75*7mm
Measuring Range
30m@10%
Resolution
0.625°
Sensing Range
30m@10%
Current - Output (Max)
Other
Bandwidth
Other
Acceleration Range
Other
Sensitivity (LSB/g)
Other
Sensitivity (mV/g)
Other
Sensitivity (LSB/(°/s))
Other
Sensitivity (mV/°/s)
Other
Sensing Distance
30m@10%
Current - Output
Other
Power - Rated
10 W
Voltage - Output Difference (Typ) @ Distance
Other
Voltage - Output (Typ) @ Distance
Other
Voltage - Max
Other
Voltage - DC Reverse (Vr) (Max)
Other
Power - Max
10 W
Sensing Object
People,vehicles,obstacles,traffic signs etc.
Sensing Light
Other
Resistance
Other
Resistance Tolerance
Other
Sensing Temperature - Local
Other
Sensing Temperature - Remote
Other
Current Rating - AC
Other
Current Rating - DC
Other
Tolerance
Other
Voltage - Rated
Other
Flow Sensor Type
Other
Voltage - Input
Other
Mfg Date Code
Other
Cross Reference
Other
Ranging principle
Time of Flight
safety class
Class1eye safe
Ranging distance
30m @10% NIS, 100kluxdirect sunlight
Blind area
0.1m
Count of the points
~260,000points/second
FOV(horizontal)
120°(-60.0°~+60.0°)
FOV(vertical)
90°(-45°~+45°)
Angular resolution(horizontal)
average 0.625°
Angular resolution(vertical)
average 0.625°2
Ranging Precision
±5cm@1 sigma
Time Synchronization
gPTP(IEEE-802.1AS) PTP E2EL2(IEEE-1588)
Frame rate
10Hz
Power Consumption
<10 W

Packaging and delivery

Selling Units
Single item
Single package size
40X30X25 cm
Single gross weight
5.000 kg

Lead time

Customization options

Customized packaging(+ from /Min. order: 200 pieces)
