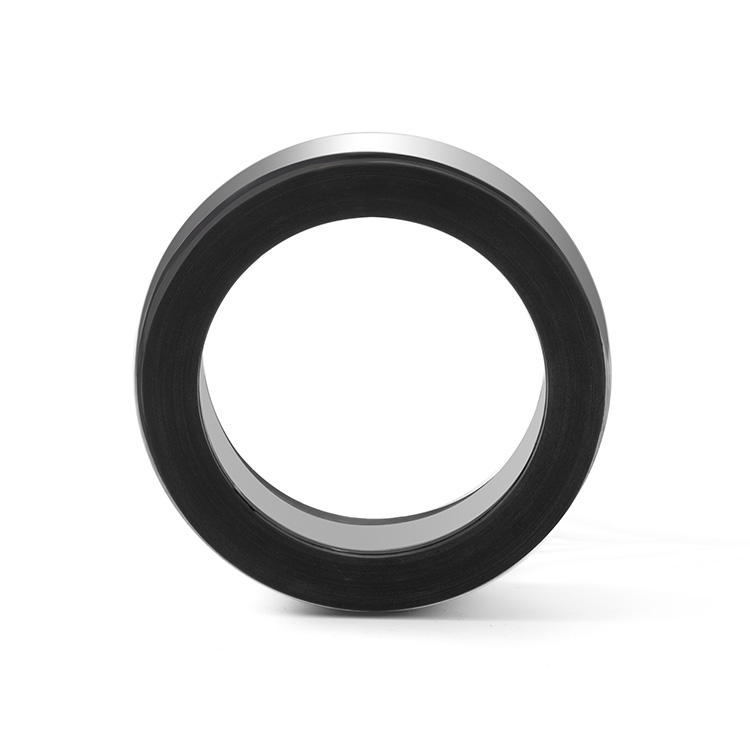

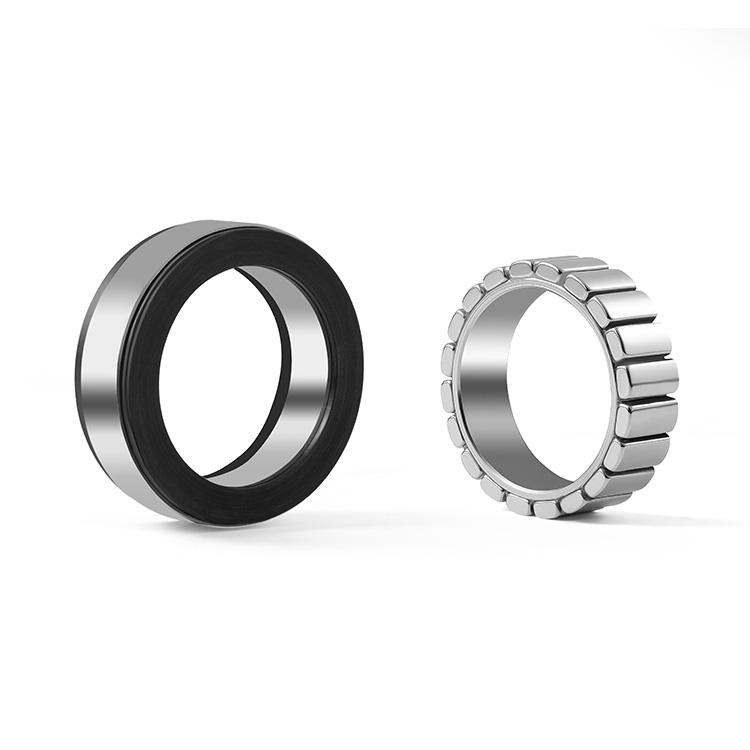

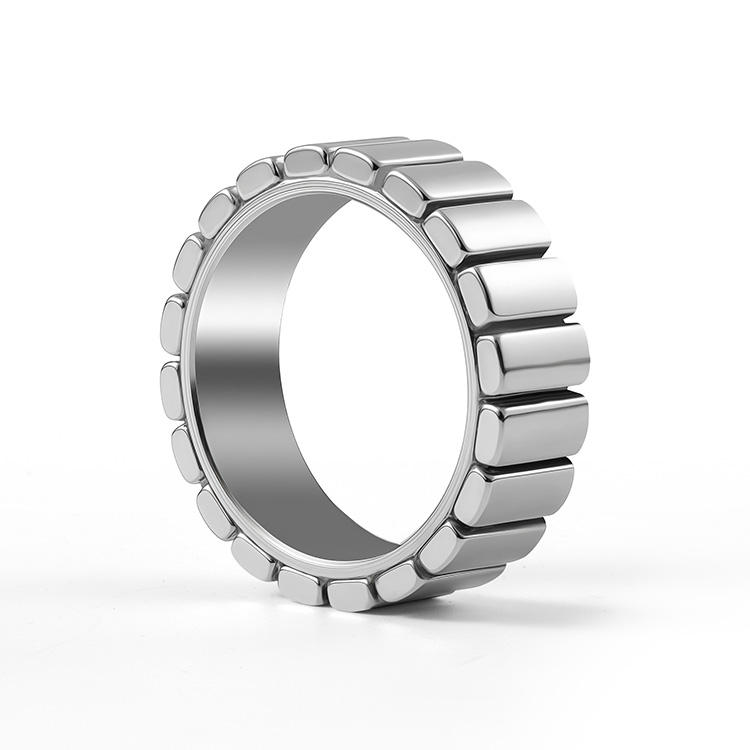

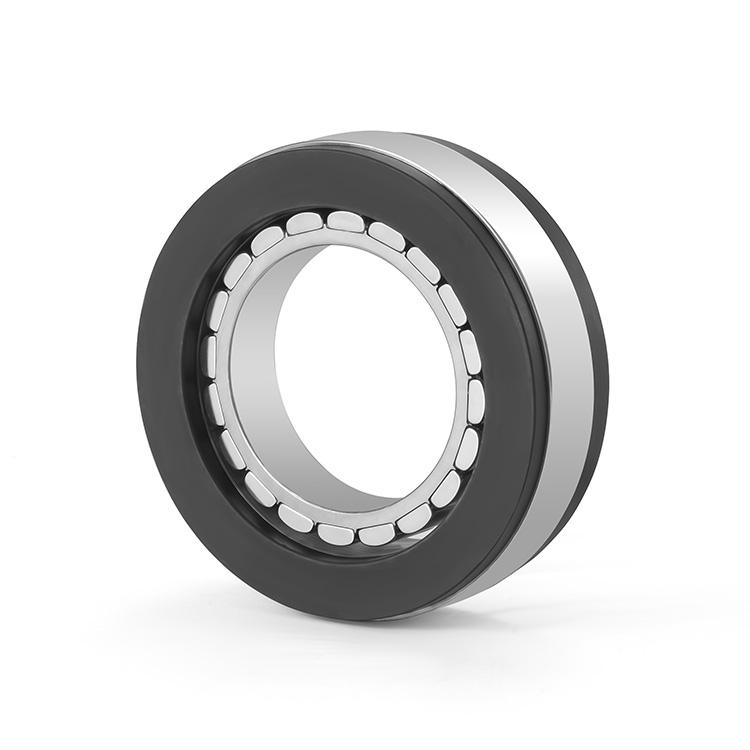

Robot Joint Motor OD68mm Torque1.54NM Direct Drive Frameless Torque Rotary Robot Arm Motor for Medical Surgery Robot
Store rating:4.6
(14 reviews)
Attributes
13AContinuous Current(A)
IE 4Efficiency
3000Speed(RPM)
Guangdong, ChinaPlace of Origin
NOFrame
Glue typeMotor Mounting Type
Rated Power:484W
Model Number:U6836
Brand Name:other
Commutation:Brushless
Construction:Permanent Magnet
IP Rating:other
Protect Feature:Totally Enclosed
Speed Rpm:3000
Torque:1.54NM
Type:Brushless Motor
Usage:Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home, Semiconductor chip installation
Warranty:Other
OD(mm):68
Height(mm):36.6
Voltage( VDC):48
Rated Output*1 (W):484
Rated torque*1 (Nm):1.54
Instant Max Torque*1 (Nm):4
Rated Current*1 (Arms):13
Instant Max Current (Arms):40
Rated Speed*1 (Rpm):3000
Max Speed*1 (Rpm):5000
Key attributes
Continuous Current(A)
13A
Efficiency
IE 4
Speed(RPM)
3000
Place of Origin
Guangdong, China
Frame
NO
Motor Mounting Type
Glue type
Rated Power
484W
Model Number
U6836
Brand Name
other
Commutation
Brushless
Construction
Permanent Magnet
IP Rating
other
Protect Feature
Totally Enclosed
Speed Rpm
3000
Torque
1.54NM
Type
Brushless Motor
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home, Semiconductor chip installation
Warranty
Other
OD(mm)
68
Height(mm)
36.6
Voltage( VDC)
48
Rated Output*1 (W)
484
Rated torque*1 (Nm)
1.54
Instant Max Torque*1 (Nm)
4
Rated Current*1 (Arms)
13
Instant Max Current (Arms)
40
Rated Speed*1 (Rpm)
3000
Max Speed*1 (Rpm)
5000
Packaging and delivery
Selling Units
Single item
Single package size
12X12X12 cm
Single gross weight
30.000 kg
Lead time
Product descriptions from the supplier
2 - 299 pieces
$98
>= 300 pieces
$58
