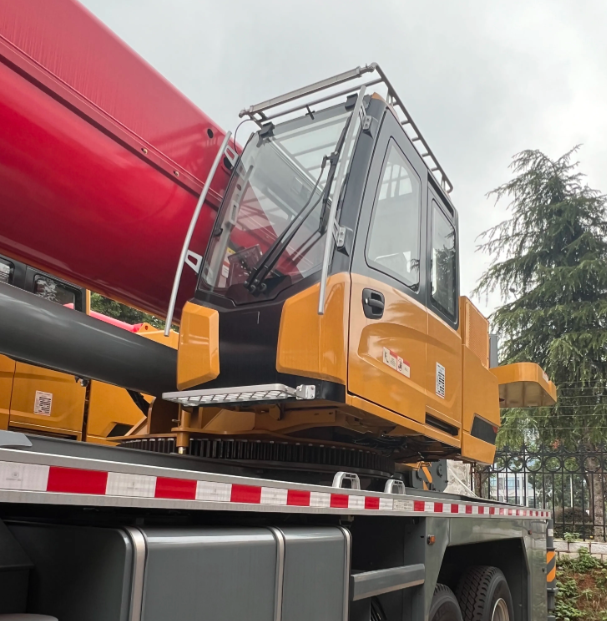

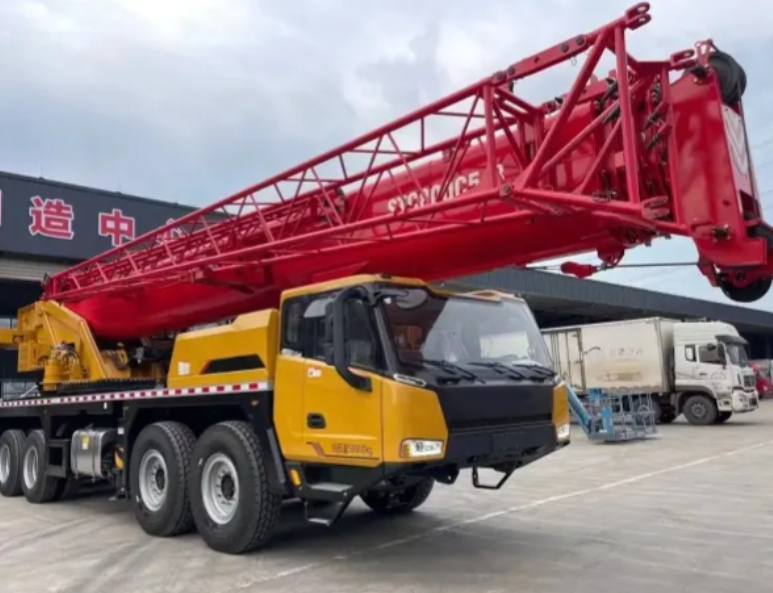

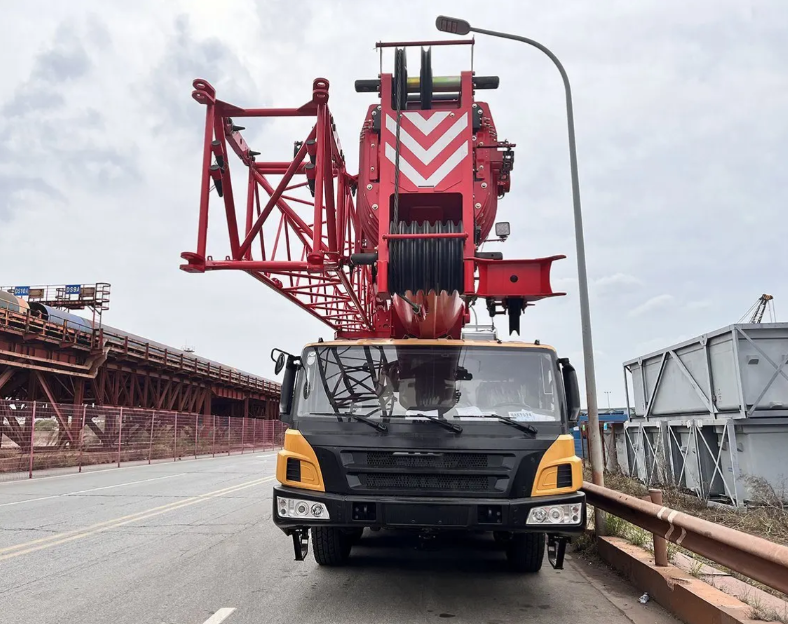

STC800C5-8 80 Ton Truck Crane with Multiple Boom Configurations up to 78m
No reviews yet
Attributes
1550 N.m/1200 rpmRated Lifting Moment
66.5/67.5/78mMax. Lifting Height
EVANGELBrand Name
Top BrandEngine Brand
Hunan, ChinaPlace of Origin
1 YearWarranty
Hydraulic Cylinder Brand:Top Brand
Hydraulic Pump Brand:Top Brand
Hydraulic Valve Brand:Top Brand
Color:Red
Application:Construction sites
Span:6.1 m
Make:EVANGEL
UNIQUE SELLING POINT:High operating efficiency
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Core Components:Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC, Other
Weight (KG):46000
Max. lifting capacity:80t
Overall weight:46000 kg
Unit dimensions (LxWxH):14100*2750*3850 mm
Rated power:275 kW/2100 rpm
Rated torque:1550 N.m/1200 rpm
Max. traveling speed:80 km/h
Min.turning radius of boom head:15.6 m
Min. ground clearance:230 mm
Max. gradeability:230%
Outrigger span:6.1 * 7.6 m
Key attributes
Rated Lifting Moment
1550 N.m/1200 rpm
Max. Lifting Height
66.5/67.5/78m
Brand Name
EVANGEL
Engine Brand
Top Brand
Place of Origin
Hunan, China
Warranty
1 Year
Hydraulic Cylinder Brand
Top Brand
Hydraulic Pump Brand
Top Brand
Hydraulic Valve Brand
Top Brand
Color
Red
Application
Construction sites
Span
6.1 m
Make
EVANGEL
UNIQUE SELLING POINT
High operating efficiency
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Core Components
Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC, Other
Weight (KG)
46000
Max. lifting capacity
80t
Overall weight
46000 kg
Unit dimensions (LxWxH)
14100*2750*3850 mm
Rated power
275 kW/2100 rpm
Rated torque
1550 N.m/1200 rpm
Max. traveling speed
80 km/h
Min.turning radius of boom head
15.6 m
Min. ground clearance
230 mm
Max. gradeability
230%
Outrigger span
6.1 * 7.6 m
Packaging and delivery
Selling Units
Single item
Lead time
Product descriptions from the supplier
Warning/Disclaimer
California Proposition 65 Consumer WarningView more
1 - 4 units
$87,500
>= 5 units
$86,100
