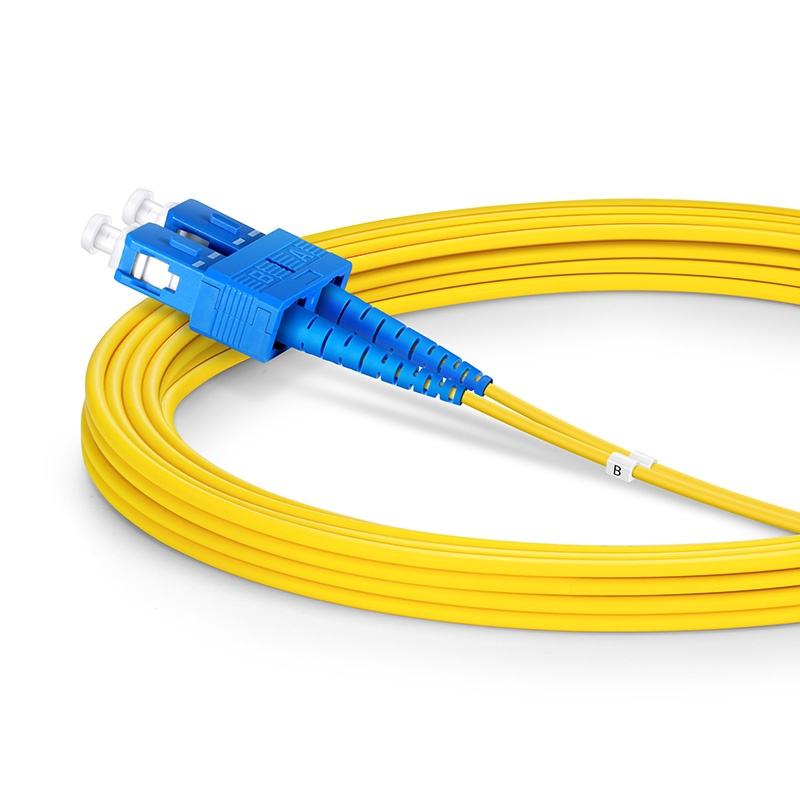

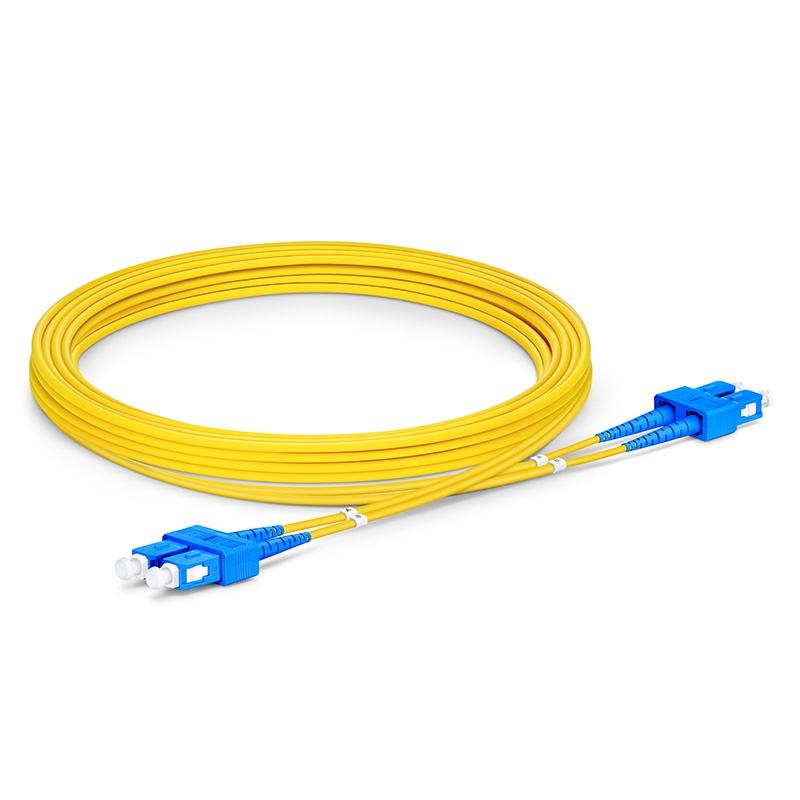

Sc/Sc Duplex 2 Fibers 9/125um Riser (OFNR) 3.0mm SMF G.652.D Fiber Optic Patch Cord 1310/1550nm 0.36/0.22dB Attenuation
Store rating:5.0
(1 review)
Attributes
Superlink / OEMBrand Name
fiber optic patch cordModel Number
Fiber Optic CableType
Zhejiang, ChinaPlace of Origin
2Number of Conductors
SC-SCConnection Structure
Material Shape:Round Wire
Allowed Lateral Pressure:>1000(N/100mm)
Allowed Tensile Strength:90/150n
Sheath Material:PVC, LSZH, Ofnp, Ofnr,PE,TPU
Connector A:Sc Upc Duplex
Connector B:Sc Upc Duplex
Fiber Count:2 Fibers
Fiber Grade:G.652.D
Fiber Mode:OS2 9/125μm
Wavelength:1310/1550nm
Polarity:a (Tx) to B (Rx)
Min. Bend Radius (Optical Fiber):10mm
Min. Bend Radius (Fiber Cable):10/5D (Dynamic/Static)
Connector Durability:1000 Times
Insertion Loss:≤0.3dB
Return Loss:≥50dB
Attenuation at 1310 Nm:0.36dB/Km
Attenuation at 1550 Nm:0.22dB/Km
Operating Temperature:-40 to 75℃
Key attributes
Brand Name
Superlink / OEM
Model Number
fiber optic patch cord
Type
Fiber Optic Cable
Place of Origin
Zhejiang, China
Number of Conductors
2
Connection Structure
SC-SC
Material Shape
Round Wire
Allowed Lateral Pressure
>1000(N/100mm)
Allowed Tensile Strength
90/150n
Sheath Material
PVC, LSZH, Ofnp, Ofnr,PE,TPU
Connector A
Sc Upc Duplex
Connector B
Sc Upc Duplex
Fiber Count
2 Fibers
Fiber Grade
G.652.D
Fiber Mode
OS2 9/125μm
Wavelength
1310/1550nm
Polarity
a (Tx) to B (Rx)
Min. Bend Radius (Optical Fiber)
10mm
Min. Bend Radius (Fiber Cable)
10/5D (Dynamic/Static)
Connector Durability
1000 Times
Insertion Loss
≤0.3dB
Return Loss
≥50dB
Attenuation at 1310 Nm
0.36dB/Km
Attenuation at 1550 Nm
0.22dB/Km
Operating Temperature
-40 to 75℃
Packaging and delivery
Selling Units
Single item
Lead time
Customization options
Customized logo (Min. order: 30,000 meters)
Customized packaging (Min. order: 30,000 meters)
Graphic customization (Min. order: 30,000 meters)
View details
Product descriptions from the supplier
Customizable
Minimum order quantity: 100 meters
£0.3731-1.50Variations
Select nowCustomization options
Customized logo (Min. order: 30000 meters)
Customized packaging (Min. order: 30000 meters)
Graphic customization (Min. order: 30000 meters)
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
