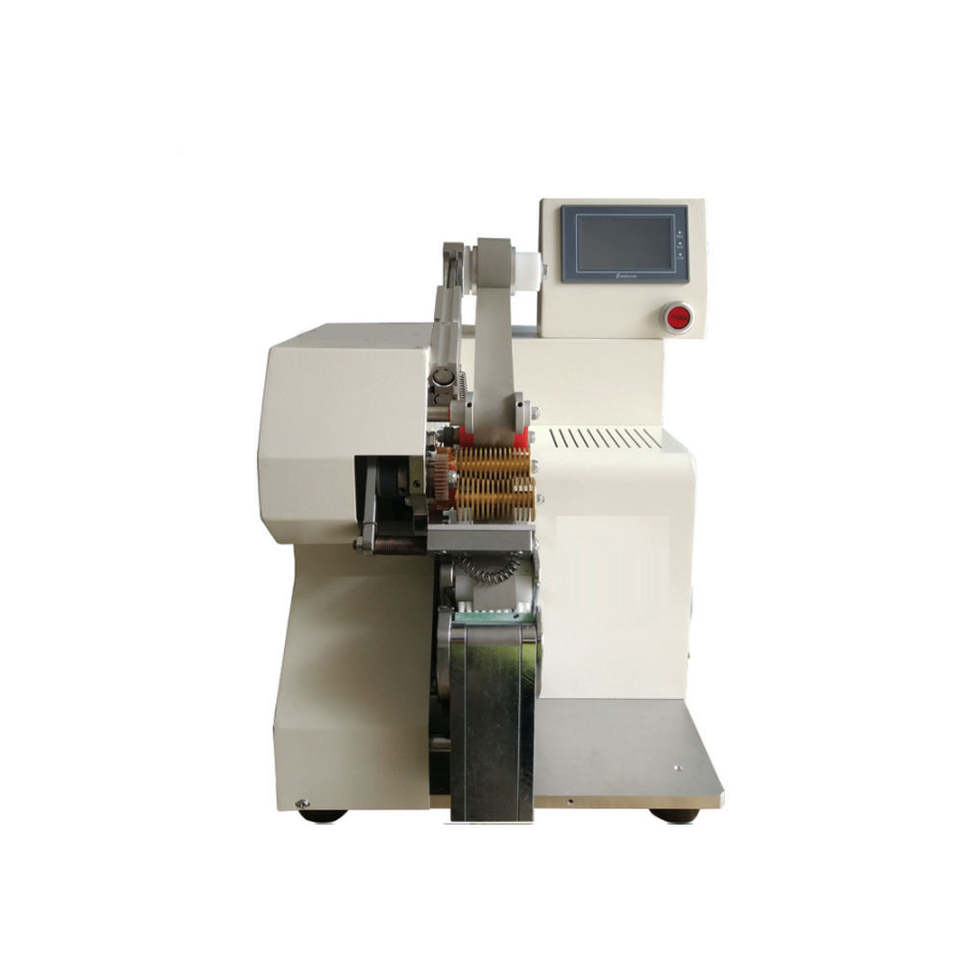

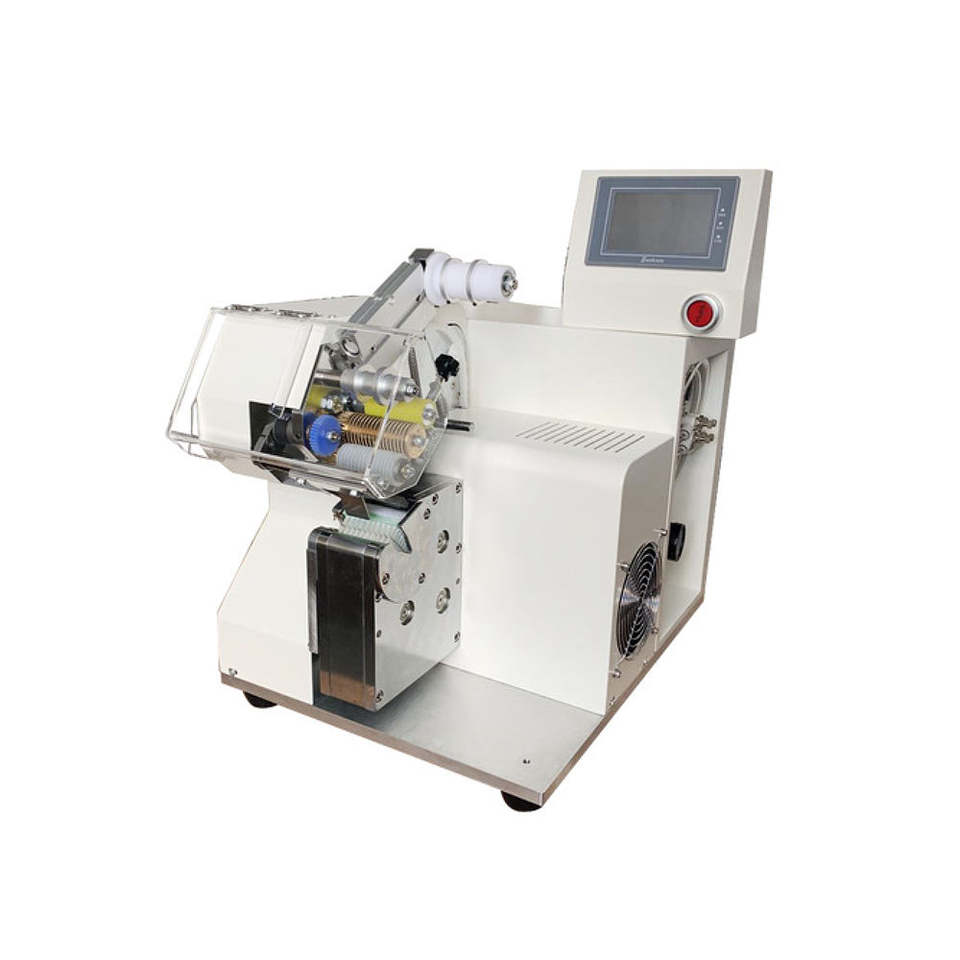

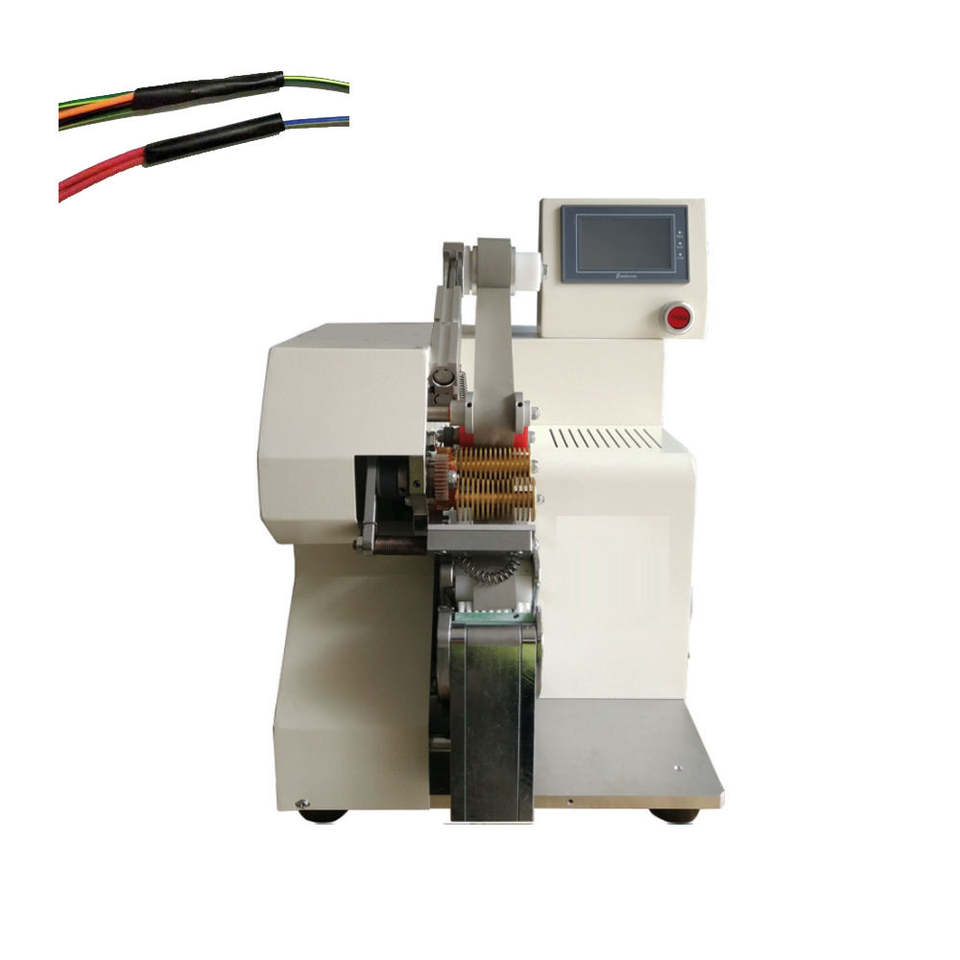

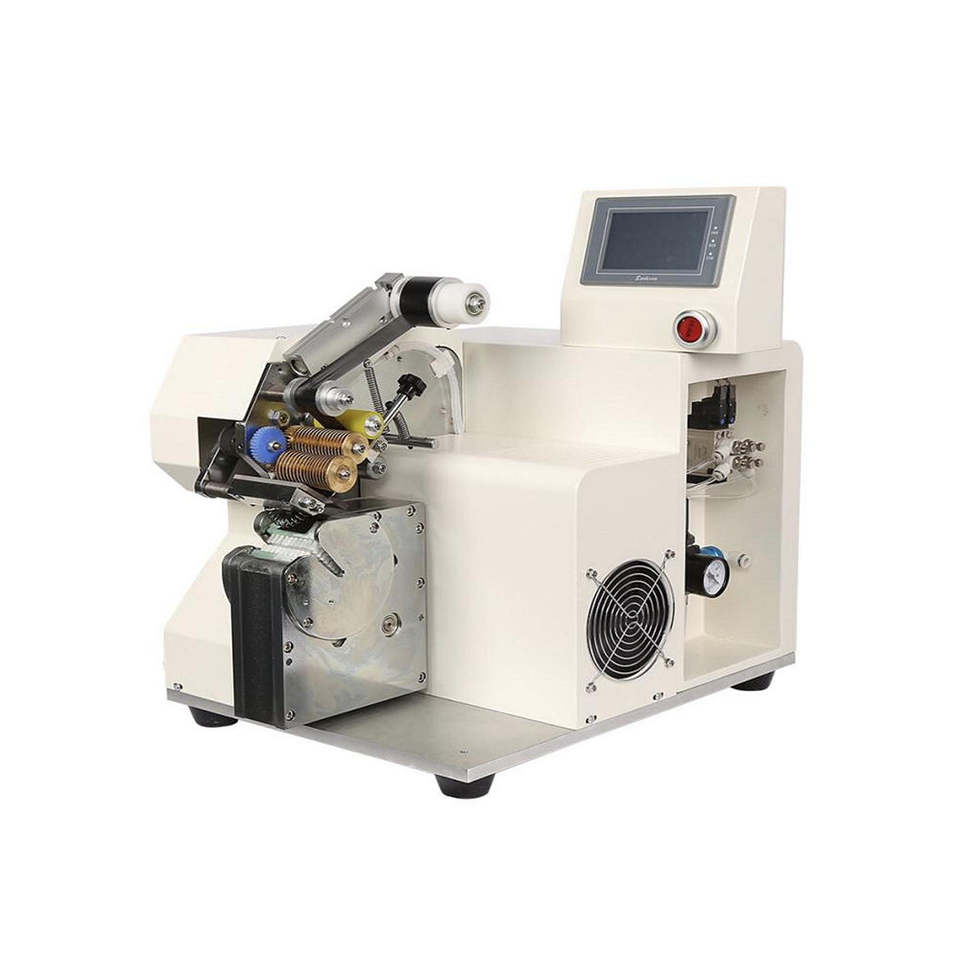

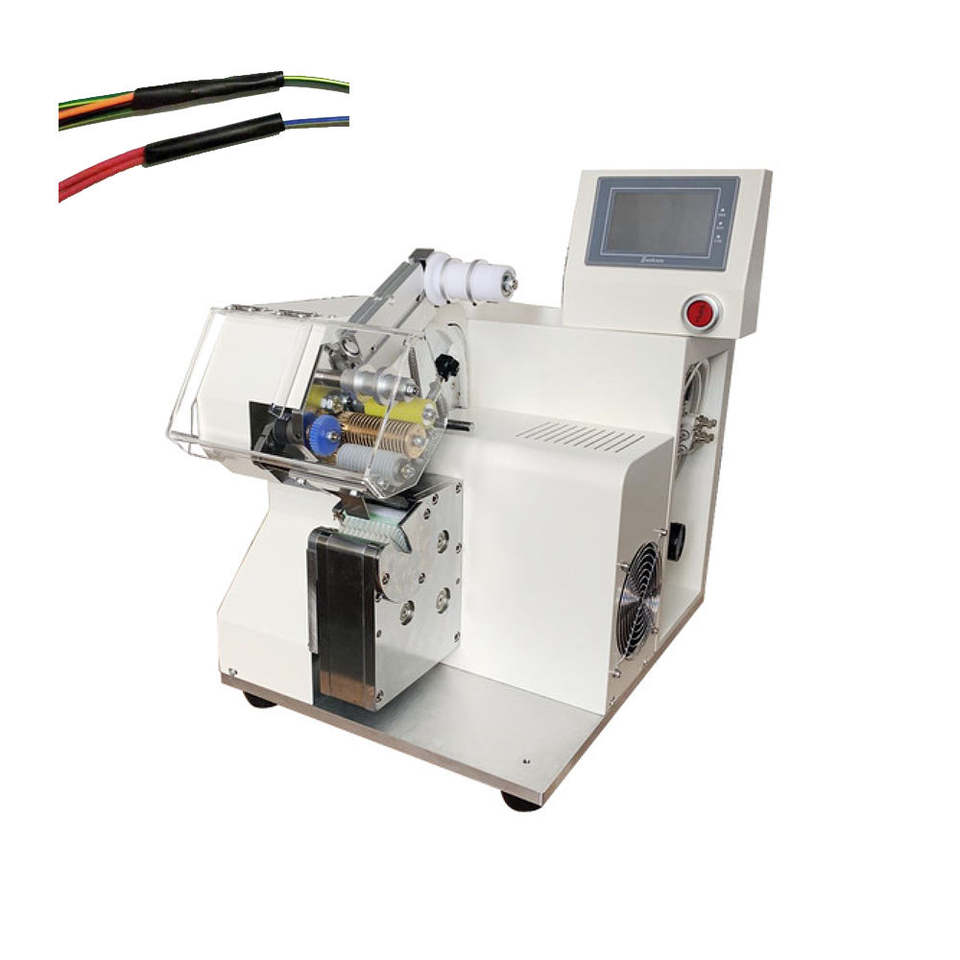

Semi Automatic Tape Wrapping Machine PVC / Velvet / Acetic Acid Tape Wire Spot Winding Machine with Factory Price
Store rating:5.0
(7 reviews)
Attributes
Winding,Wrappingusage
Semi-AutomaticOperating Mode
48Weight (KG)
Guangdong, Chinaplace of origin
Sinradbrand name
SR-5790model number
Dimension(L*W*H):450*350*500mm
Air pressure:0.4-0.6MPa

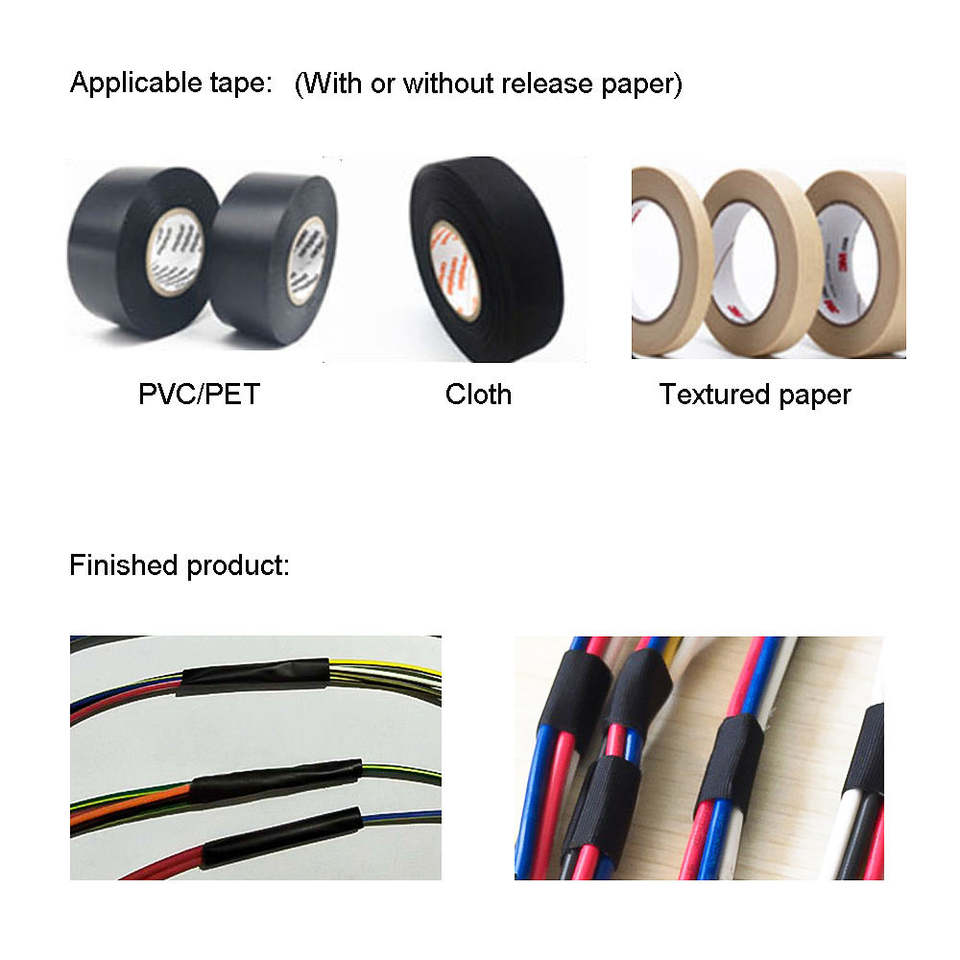

Tape type:PVC / velvet / acetic acid tape (without release paper)
Cable type:Single wire or multiple wire bundles after intermediate point crimping
Work efficiency:24/min
Winding position accuracy:±3mm
Winding overlap accuracy:±2mm, depends on product
Cable length required:≥100mm
Cable diameter:6-14mm
Tape width:10-45mm
Tape length:50-55mm
Structure:Drum diameter 90mm, brush width 57mm.
Key attributes
usage
Winding,Wrapping
Operating Mode
Semi-Automatic
Weight (KG)
48
place of origin
Guangdong, China
brand name
Sinrad
model number
SR-5790
Dimension(L*W*H)
450*350*500mm
Air pressure
0.4-0.6MPa
Tape type
PVC / velvet / acetic acid tape (without release paper)
Cable type
Single wire or multiple wire bundles after intermediate point crimping
Work efficiency
24/min
Winding position accuracy
±3mm
Winding overlap accuracy
±2mm, depends on product
Cable length required
≥100mm
Cable diameter
6-14mm
Tape width
10-45mm
Tape length
50-55mm
Structure
Drum diameter 90mm, brush width 57mm.
Packaging and delivery
Selling Units
Single item
Lead time
Customization options
Customized logo(+ from /Min. order: 10 sets)
Customized packaging(+ from /Min. order: 10 sets)
Graphic custoomization(+ from /Min. order: 10 sets)
View details
Product descriptions from the supplier
Customizable
Minimum order quantity: 1 set
£1,19714-1,42160
Variations
Select nowCapacity (kg/h): /
/
Power(W)
200W
Customization options
Customized logo (Min. order: 10 sets)
Customized packaging (Min. order: 10 sets)
Graphic custoomization (Min. order: 10 sets)
