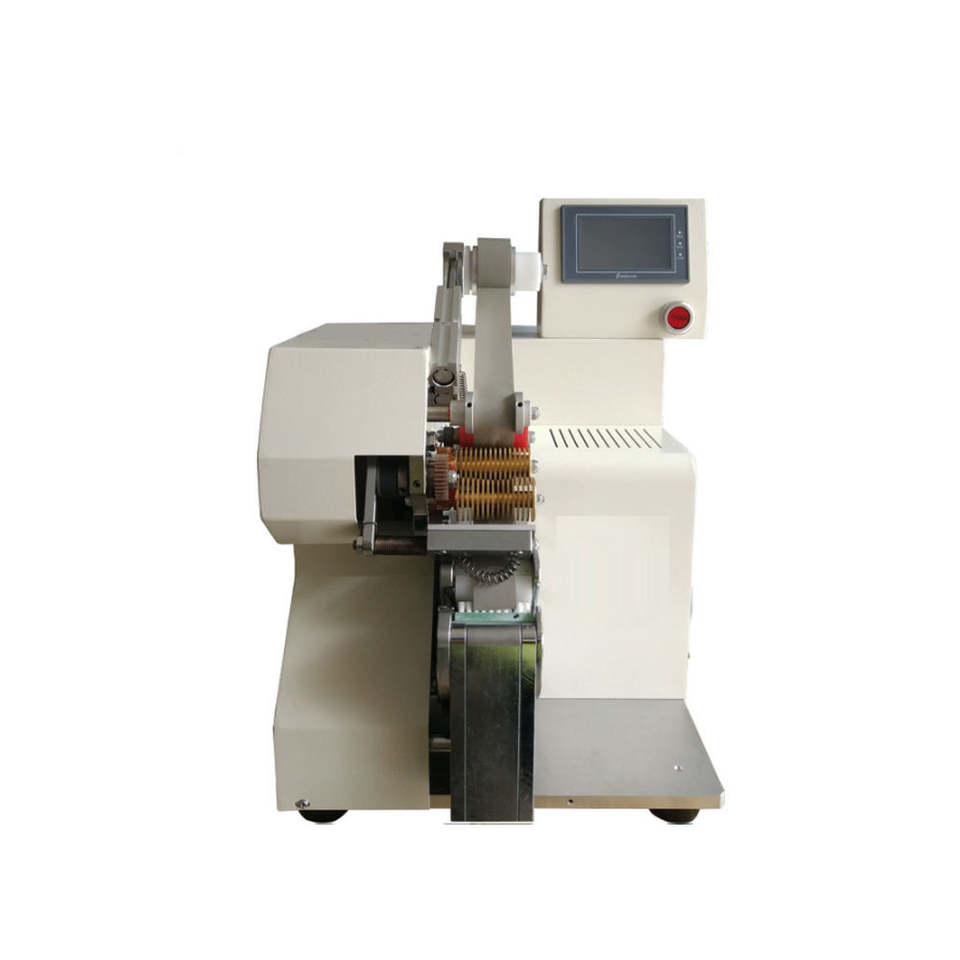

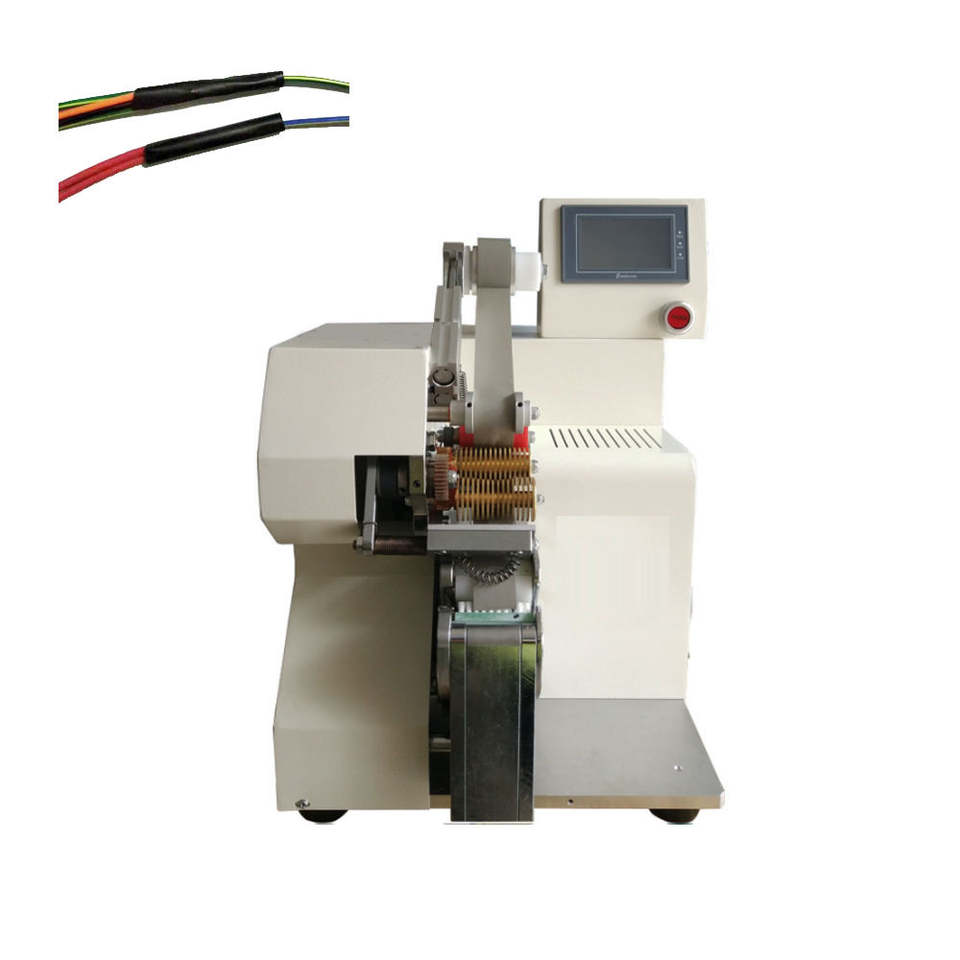

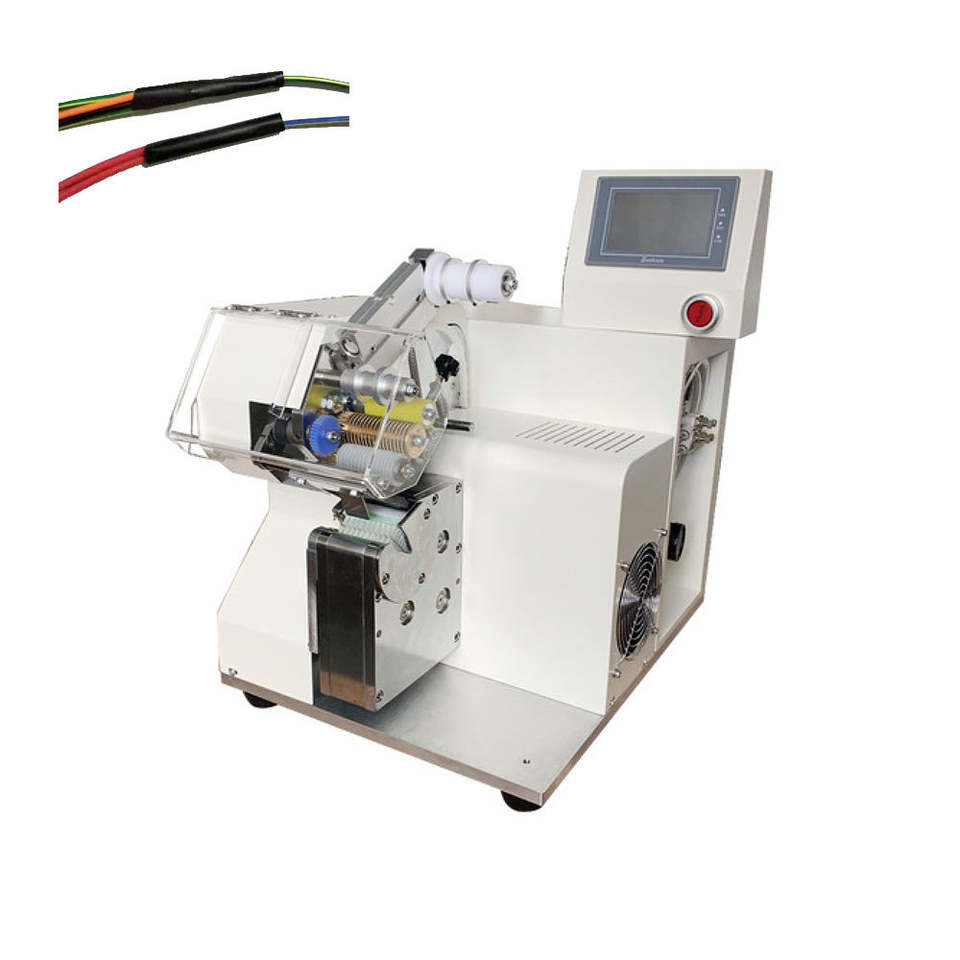

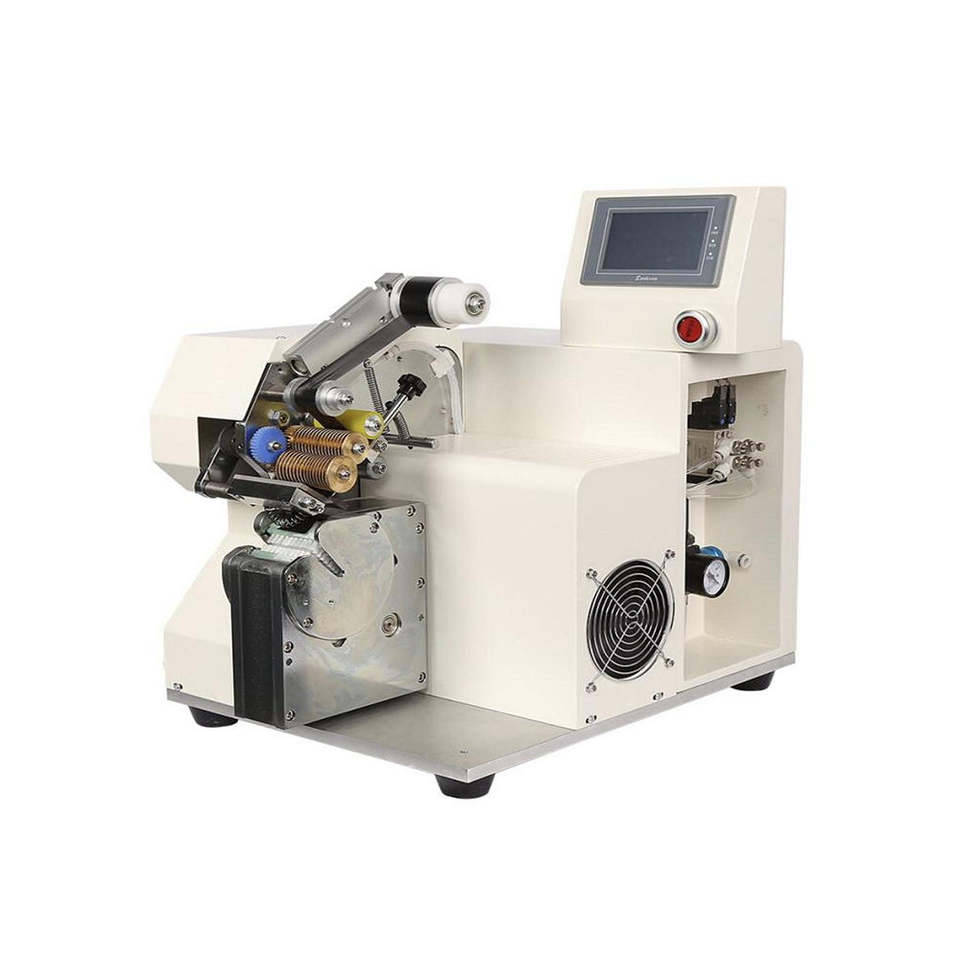

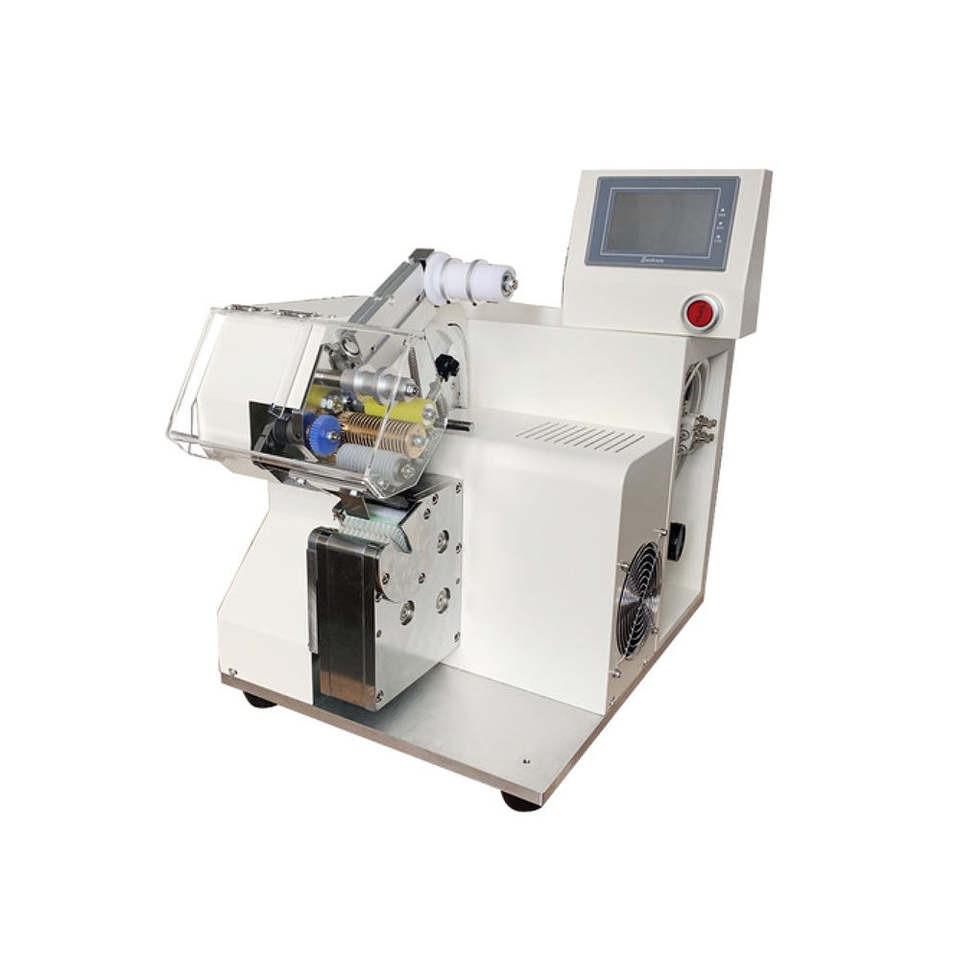

Semi Automatic Wire Wrap Machine 3-6mm OD Insulation Cable Spot Winding Tool
Store rating:5.0
(7 reviews)
Attributes
Winding,Wrappingusage
Semi-AutomaticOperating Mode
48Weight (KG)
Guangdong, Chinaplace of origin
Sinradbrand name
SR-5760model number
Dimension(L*W*H):450*350*500mm
Air pressure:0.4-0.6MPa

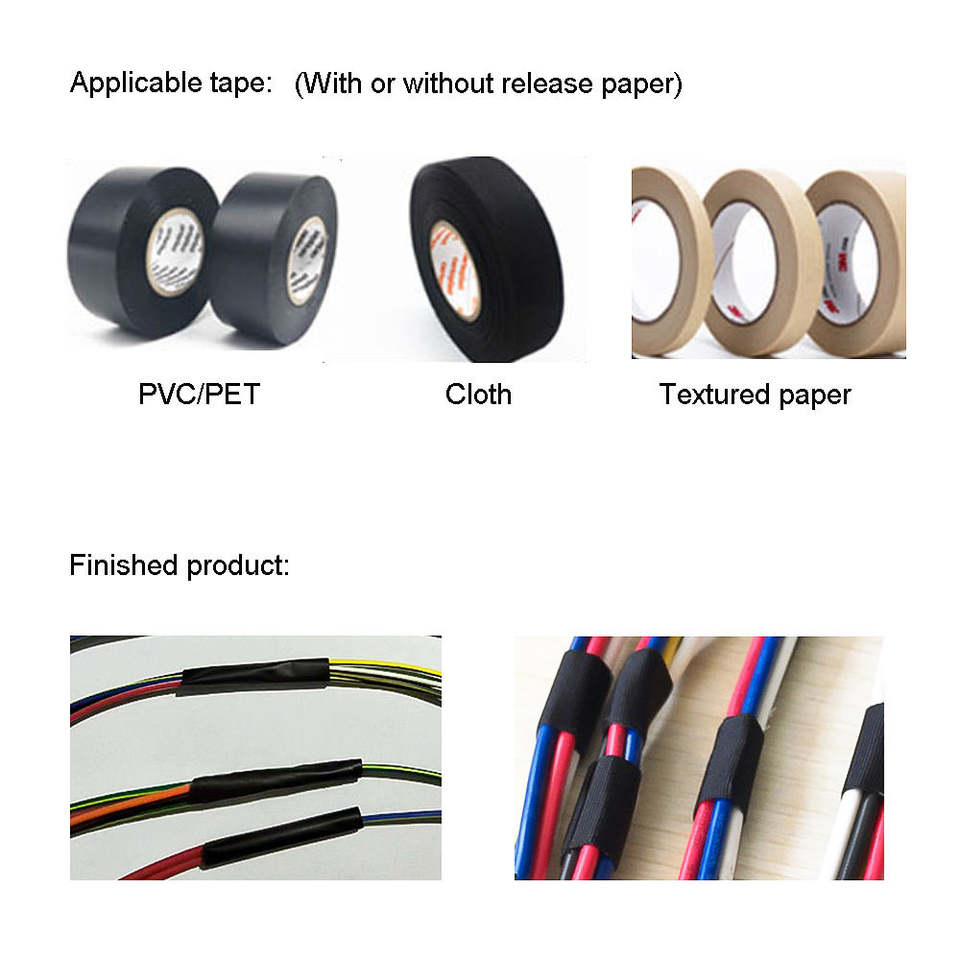

Tape type:PVC / velvet / acetic acid tape (without release paper)
Cable type:Single wire or multiple wire bundles after intermediate point crimping
Work efficiency:24/min
Winding position accuracy:±3mm
Winding overlap accuracy:±2mm, depends on product
Cable length required:≥100mm
Cable diameter:3-6mm
Tape width:10-45mm
Tape length:30-35mm
Structure:Drum diameter 65mm, brush width 57mm.
Key attributes
usage
Winding,Wrapping
Operating Mode
Semi-Automatic
Weight (KG)
48
place of origin
Guangdong, China
brand name
Sinrad
model number
SR-5760
Dimension(L*W*H)
450*350*500mm
Air pressure
0.4-0.6MPa
Tape type
PVC / velvet / acetic acid tape (without release paper)
Cable type
Single wire or multiple wire bundles after intermediate point crimping
Work efficiency
24/min
Winding position accuracy
±3mm
Winding overlap accuracy
±2mm, depends on product
Cable length required
≥100mm
Cable diameter
3-6mm
Tape width
10-45mm
Tape length
30-35mm
Structure
Drum diameter 65mm, brush width 57mm.
Packaging and delivery
Selling Units
Single item
Single package size
51X42X63 cm
Single gross weight
60.000 kg
Lead time
Customization options
Customized logo(+ from /Min. order: 10 sets)
Customized packaging(+ from /Min. order: 10 sets)
Graphic custoomization(+ from /Min. order: 10 sets)
View details
Product descriptions from the supplier
Customizable
Minimum order quantity: 1 set
£1,48446
Variations
Select nowCapacity (kg/h): /
/
Power(W)
200W
Customization options
Customized logo (Min. order: 10 sets)
Customized packaging (Min. order: 10 sets)
Graphic custoomization (Min. order: 10 sets)
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
