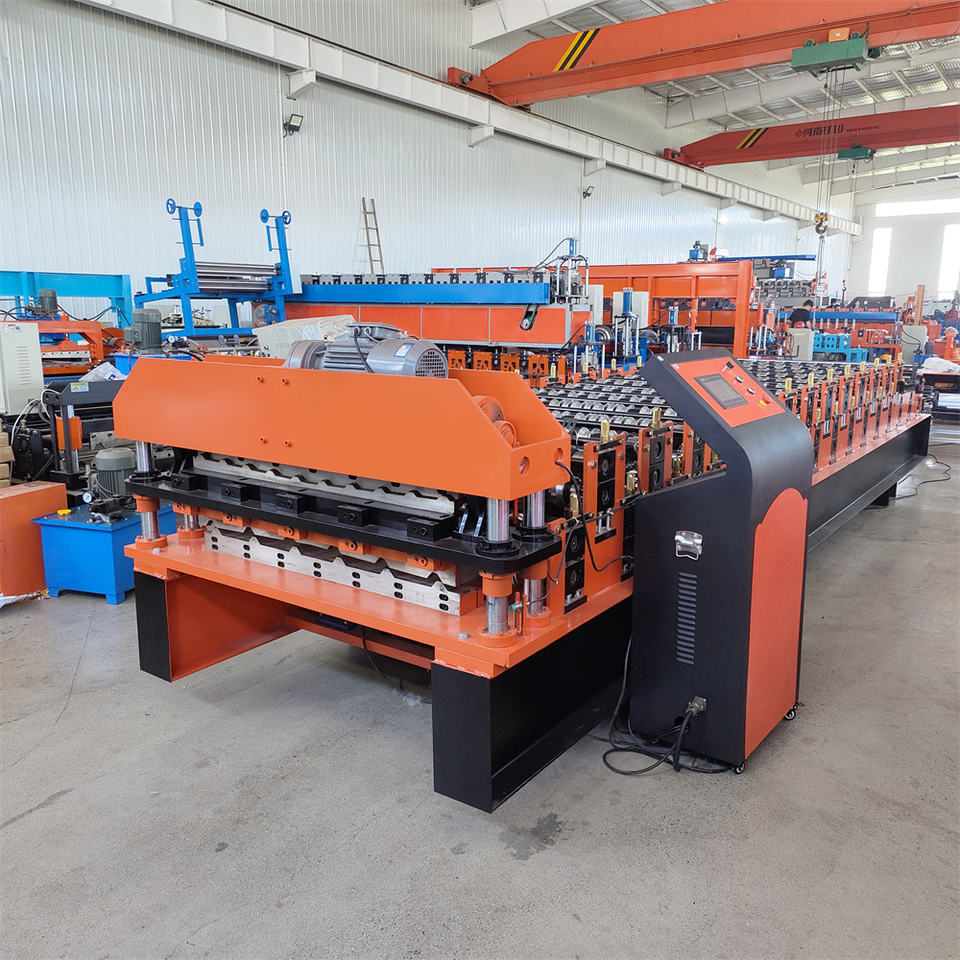

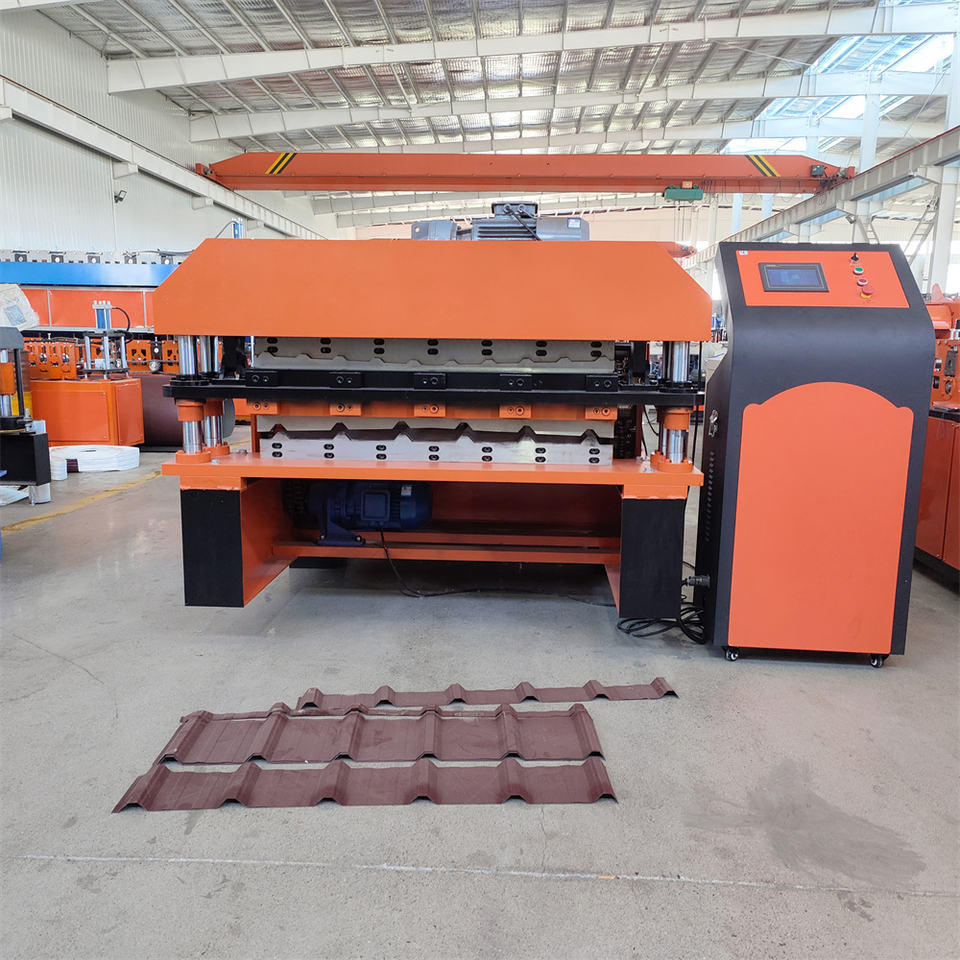

Sheet Tile Cold Roll Forming Machinery with High Quality Double Layer Trapezoidal Panel Rolling Roof Making Machines

No reviews yet
Henan Wadley Cnc Machinery Inc
1 yr
US

Attributes

Metal Tile Making MachineType
Colored Glaze SteelTile Type
Wall PanelUse
380/220/415vVoltage
0.3-0.8mmRolling thinckness
1250Feeding width
Place of Origin:China
Weight:6300
Warranty:2 Years
Key Selling Points:Long Service Life
Core Components:Gear, PLC
Brand Name:Wadley
Dimension(L*W*H):7500*1500*1500
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Product name:Trapezoid Roof Sheet Forming machine
Roller material:Cr12 or 45# steel forged
Shaft material:45# Steel Outer Diameter: 75mm
Main frame:350mm/400mm H-Beam
Cutting type:Automatic Hydraulic Cutting
Cut Material:CR12MOV
Driven motor:7.5KW
Driving mode:single chain 1-1.5 inch
Heat treatment:HRC58-60℃
Keywords:Roof Sheet Glazed Tiles Roll Forming Machine
Selling Units:Single item

Key attributes

Type
Metal Tile Making Machine
Tile Type
Colored Glaze Steel
Use
Wall Panel
Voltage
380/220/415v
Rolling thinckness
0.3-0.8mm
Feeding width
1250
Place of Origin
China
Weight
6300
Warranty
2 Years
Key Selling Points
Long Service Life
Core Components
Gear, PLC
Brand Name
Wadley
Dimension(L*W*H)
7500*1500*1500
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Product name
Trapezoid Roof Sheet Forming machine
Roller material
Cr12 or 45# steel forged
Shaft material
45# Steel Outer Diameter: 75mm
Main frame
350mm/400mm H-Beam
Cutting type
Automatic Hydraulic Cutting
Cut Material
CR12MOV
Driven motor
7.5KW
Driving mode
single chain 1-1.5 inch
Heat treatment
HRC58-60℃
Keywords
Roof Sheet Glazed Tiles Roll Forming Machine

Packaging and delivery

Selling Units
Single item
Show more

Lead time

Product descriptions from the supplier

1 - 2 sets
£9,275.02
>= 3 sets
£8,671.76

Variations

Select now

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
