Attributes
0.2 % ±1 mm/s 0.4 % ±1 mm/s (PFA)accuracy
liquid, WaterMedium
Electromagnetic Meterstype
Germanyplace of origin
FlangeConnectivity
0 to 10 m/sFlow Rate
material:Stainless steel AISI 316L (1.4404)
Measurement Range:0 to 10 m/s

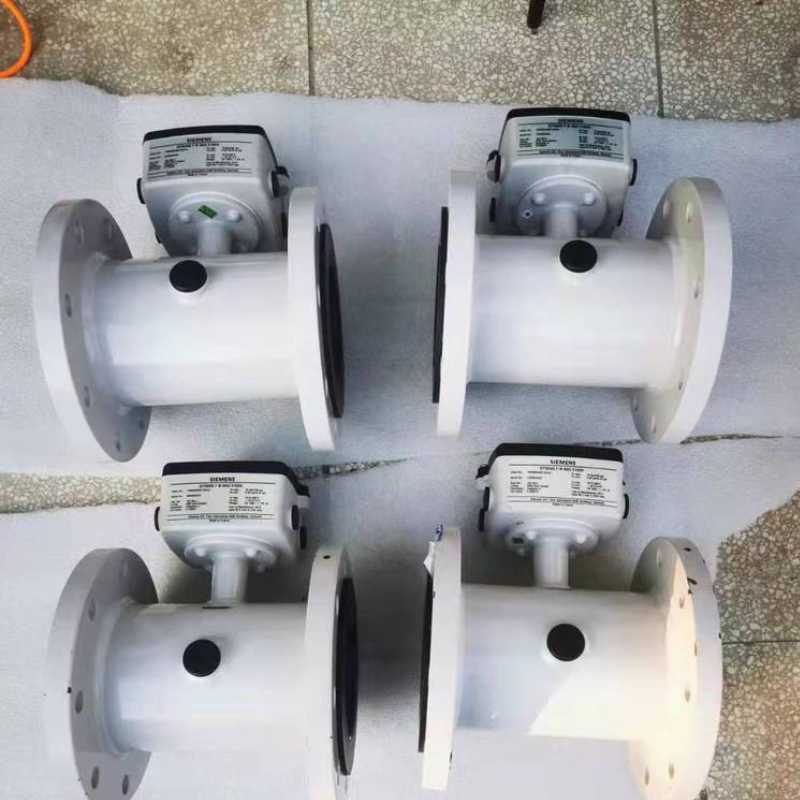

model number:SITRANS FM MAG 1100 F
brand name:SIEMENS
customized support:OEM, ODM, OBM
warranty:1 Year
Meassuring range:0 to 10 m/s
Nominal sizes:From DN 10 to DN 100 (3/8" to 4")
Accuracy:0.2 % ±1 mm/s 0.4 % ±1 mm/s (PFA)
Operating pressure:Max. 40 bar (Max. 580 psi)
Ambient temperature:From -40 to 100 °C (-40 to 212 °F)
Medium temperature:From -30 to 150 °C (-20 to 300 °F)
Liners:Ceramics PFA
Electrodes:Platinum Hastelloy
Material:Stainless steel AISI 316L (1.4404)
Approvals:ATEX - 2 GD Zone 1, FM Class 1 div 2
