Attributes
Horizontaltype
220Vvoltage
400mm (16")max. length of workpiece (mm)
Light Dutymachining capacity
8tool post stations
ISO30spindle taper
key selling points:Easy To Operate
warranty:1 Year
machinery test report:Provided
video outgoing-inspection:Provided
range of spindle speed(r.p.m):50 - 2500
place of origin:Guangdong, China
weight (kg):70
max. weight of workpiece(kg):30
width of bed (mm):/
brand name:sihao
model number:JSMNCC210850W000V2

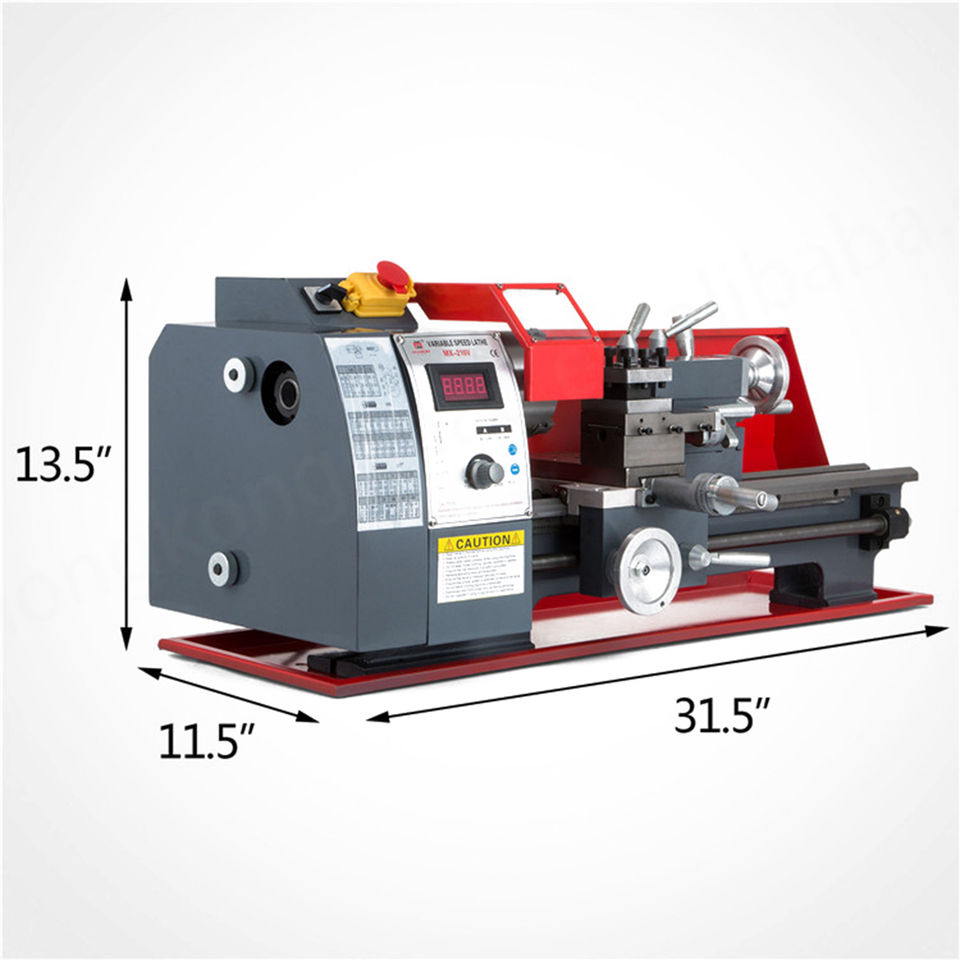

dimension(l*w*h):920*480*460mm
cutting torque:2.5
Voltage:220V
Motor Power:850W
Spindle Taper:MT3
Tail Stock Taper:MT2
Range of Spindle Speeds:50-2500RPM
Distance Between Centers:400mm (16")
Swing Over Bed:210mm (8")
Chuck Diameter:125mm (5")
Hole Thru Spindle:21mm (0.83")
Maximum Compound Slide Travel:55mm (2")
