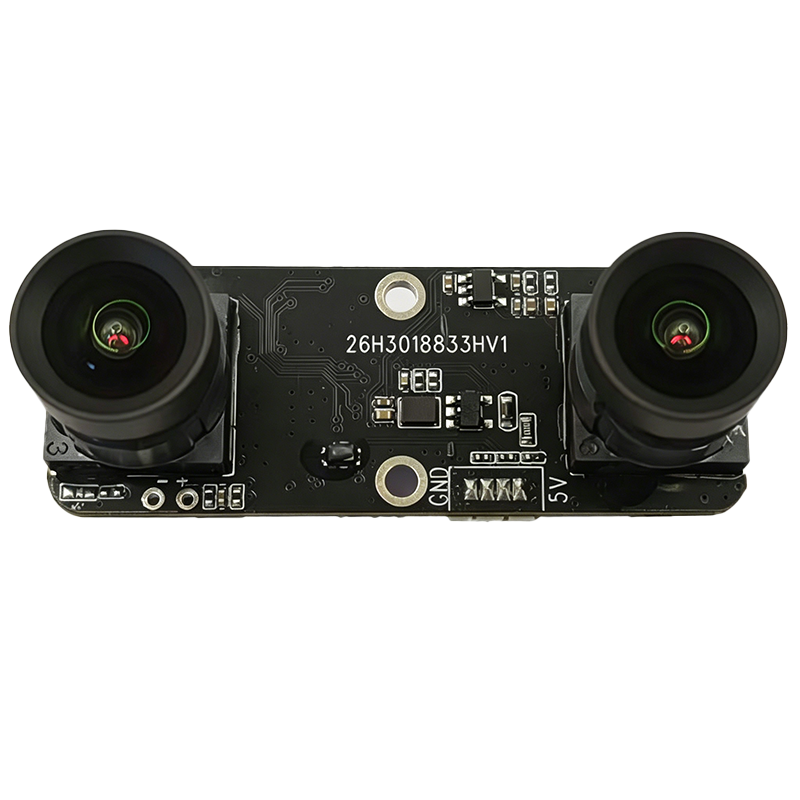

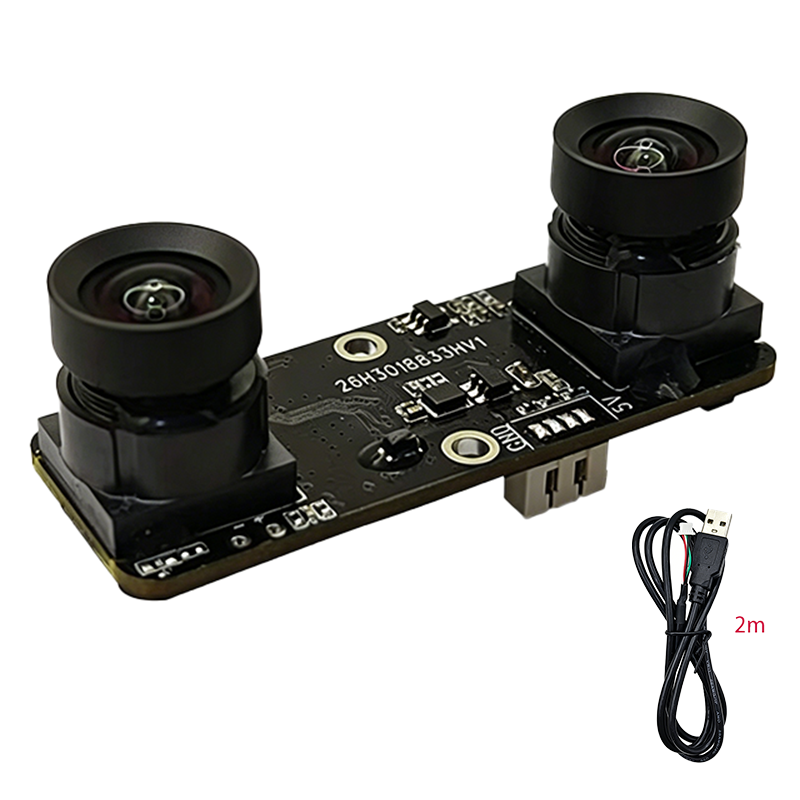

Synchronized Dual Cameras Same Frame Camera Module SC233 Chip 4MP 190° FOV High Speed USB2.0 Module for 3D vision applications

No reviews yet
£6277
1-499 pieces
£6124
500-999 pieces
£5971
≥1,000 pieces
Select now

Specification

4MP 190° Global Shutter(2m cable included by default)

Key attributes

Brand Name

LLGCAM

Model Number

26H301 4MP 190° Global Shutter

Place of Origin

Guangdong, China

Mounting Type

USB

Description

4MP USB2.0 Camera Module

Application

Dual Vision/3D vision applications

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Finance Service

4 interest-free payments with

Key attributes

Resolution
3840 H x 1080 V
Connectivity
USB
Storage
USB
network
USB
Video Compression Format
MJPEG, YUV2
Model Number
26H301 4MP 190° Global Shutter
Brand Name
LLGCAM
Place of Origin
Guangdong, China
Mounting Type
USB
Description
4MP USB2.0 Camera Module
Application
Dual Vision/3D vision applications
Series
USB
Features
SC233 Global Shutter Chip

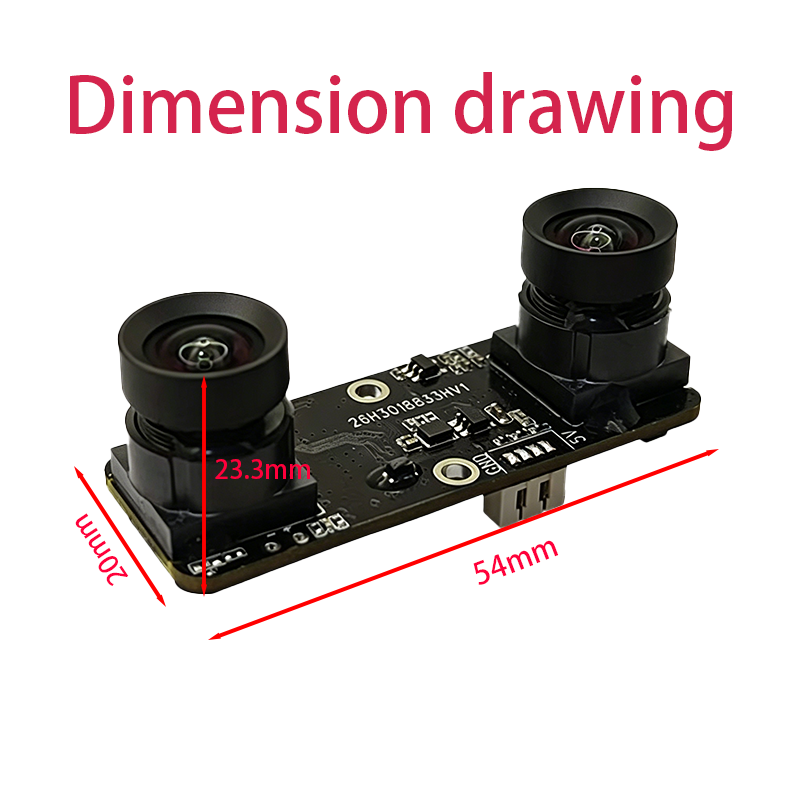

Size / Dimension
54 * 20 * 23.3mm
Sensor
NO
Technology
High Speed USB2.0
Feature
Synchronized Dual Cameras Same Frame
Interface
4PIN 1.25 MM Socket
FOV
D:190° H:155° V:94°
Sensor
1/2.6-Inch CMOS Sensor
Lens
FEL:2.2 mm F/NO:2.0
Shutter Type
Global Shutter
Scanning Speed
0.1S
Focus Type
FF/ MF
Controllable Parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
Supported OS
Windows, Android, Linux, Wince, Mac OS
Dynamic Range
91.5dB
Cable Length
TBD
Operating Current
<200mA
Operating Temperature
-20℃ ~ 60℃
Storage Temperature
-20℃ ~ 85℃

Packaging and delivery

Selling Units
Single item
Single package size
16.5X11.5X6.5 cm
Single gross weight
0.500 kg

Lead time

Customization options

OEMODM(+ from /Min. order: 500 pieces)
Customized on demand(+ from /Min. order: 200 pieces)
