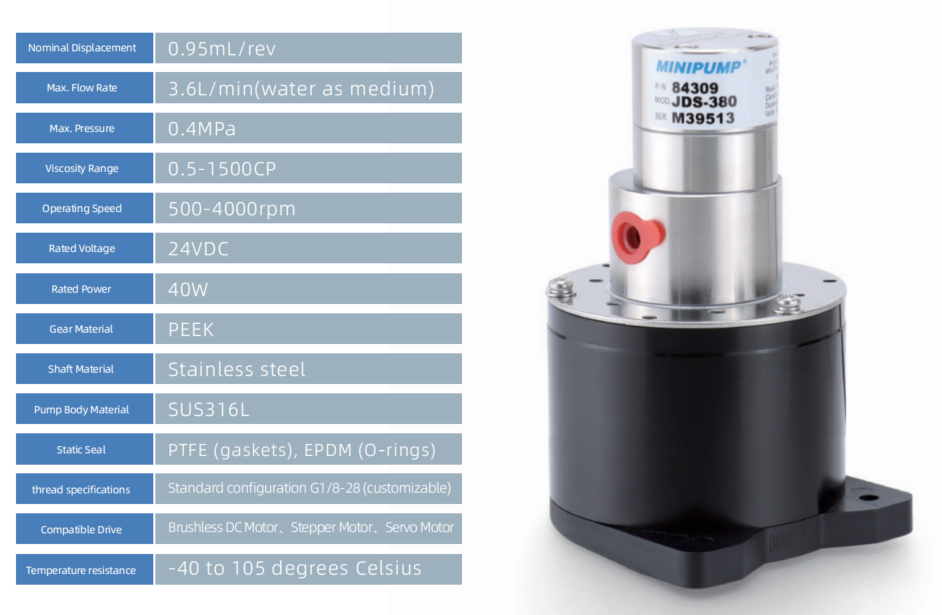

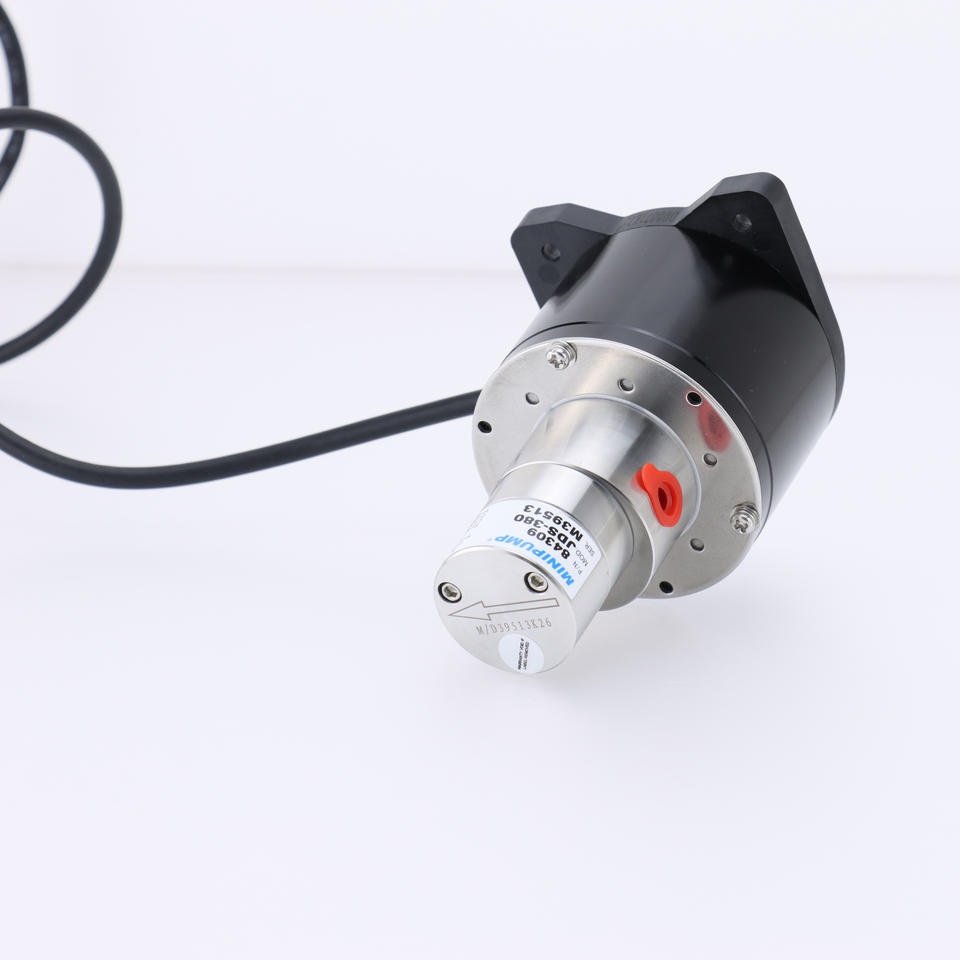

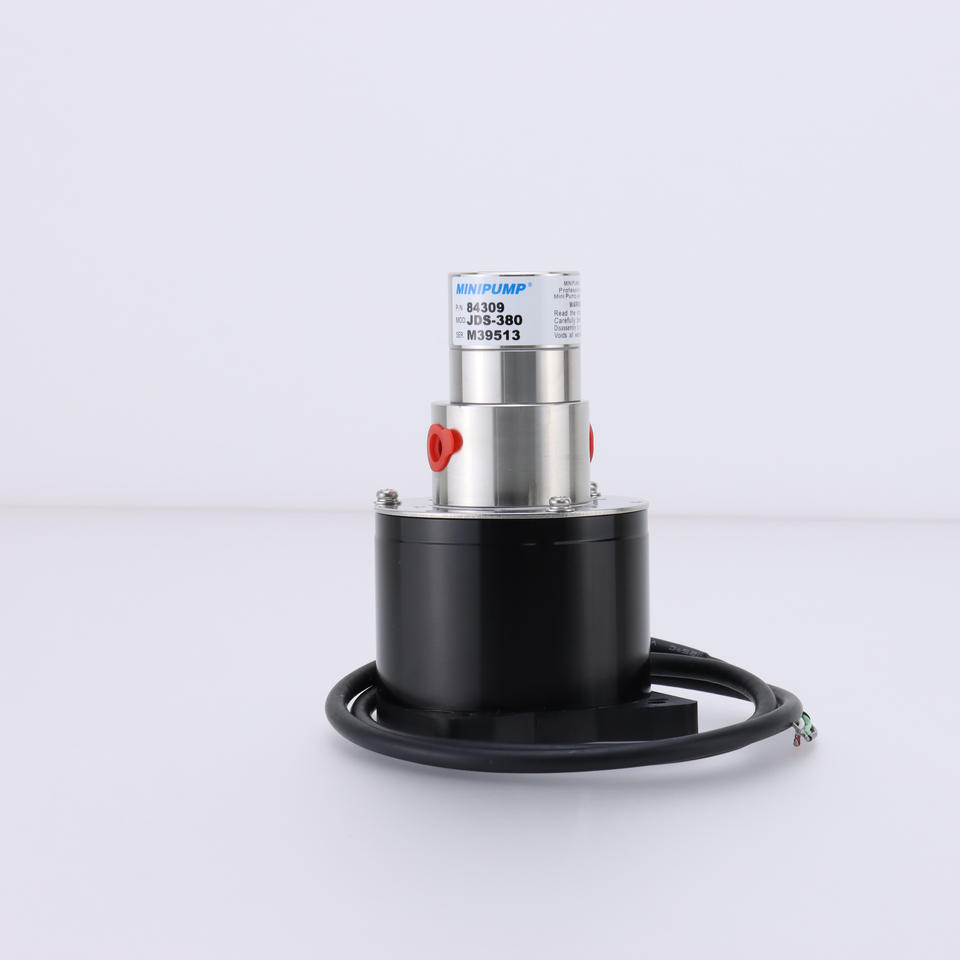

T213 Black Ink Filling Pump CIJ Inkjet Printer Spare Parts for Videoj Domino Linx

Attributes

Otherapplication
0.05-1.2Mpapressure
OEM, ODM, OBMcustomized support
1 Yearwarranty
Chinaplace of origin
Electricpower source
structure:ink pump
model number:GQA095ESLB01
Applicable temperature:-40 to 105 degrees Celsius
Max Flow Rate:3.6L/min
Max Pressure:0.4MPa
motor:Servo Motor, Brushless DC Motor, Stepper Motor
Material:Stainless Steel
Nominal Displacement:0.95mL/rev
Viscosity Range:0.5-1500CP
Operating Speeds:500-4500rpm
Rated Voltage:24VDC
Rated Power:40W
Gear Material:PEEK
Pump Body Material:SUS316L
Static Seal:PTFE (gaskets), EPDM (O-rings)
thread specifications:G1/8-28
Max. Flow Rate:3.6L/min(water as medium)
Max. Pressure:0.4MPa
Compatible Drive:Brushless DC Motor, Stepper Motor, Servo Motor
Temperature resistance:-40 to 105 degrees Celsius

Key attributes

application
Other
pressure
0.05-1.2Mpa
customized support
OEM, ODM, OBM
warranty
1 Year
place of origin
China
power source
Electric
structure
ink pump
model number
GQA095ESLB01
Applicable temperature
-40 to 105 degrees Celsius
Max Flow Rate
3.6L/min
Max Pressure
0.4MPa
motor
Servo Motor, Brushless DC Motor, Stepper Motor
Material
Stainless Steel
Nominal Displacement
0.95mL/rev
Viscosity Range
0.5-1500CP
Operating Speeds
500-4500rpm
Rated Voltage
24VDC
Rated Power
40W
Gear Material
PEEK
Pump Body Material
SUS316L
Static Seal
PTFE (gaskets), EPDM (O-rings)
thread specifications
G1/8-28
Max. Flow Rate
3.6L/min(water as medium)
Max. Pressure
0.4MPa
Compatible Drive
Brushless DC Motor, Stepper Motor, Servo Motor
Temperature resistance
-40 to 105 degrees Celsius
