Attributes
±(0.01% + 1)Accuracy Class
0.01μA ~ 10A ±(0.5%+4)Measuring Current Range
0.1mA~1000V DC, 0.001V~750V ACMeasuring Voltage Range
Low Input Impedance, DC Current, AC Voltage, Frequency, AC Current, Capacitance, DC Voltage, Diode, Resistance, TemperatureParameters Measured
Guangdong, ChinaPlace of Origin
TA803CModel Number
Brand Name:TASI
Application:Industrial Use, Household Use
Digits Displayed:5 Digits
Dimensions:184*88*46mm
Feature:Standard, Dustproof, Intrinsically Safe
Low Battery Indicator:Yes
Material:ABS, Plastic, PVC
Max. AC Current:10A
Max. AC Voltage:750 V
Max. DC Current:10A
Max. DC Voltage:1000 V
Measuring Capacitance Range:1nF ~ 2000μF ±(3.5%+20)
Measuring Inductance Range:10Hz ~ 20MHz ±(0.01%+3)
Measuring Resistance Range:0.01Ω ~ 20MΩ ±(0.3%+5)
Operating Temperature:0~40℃

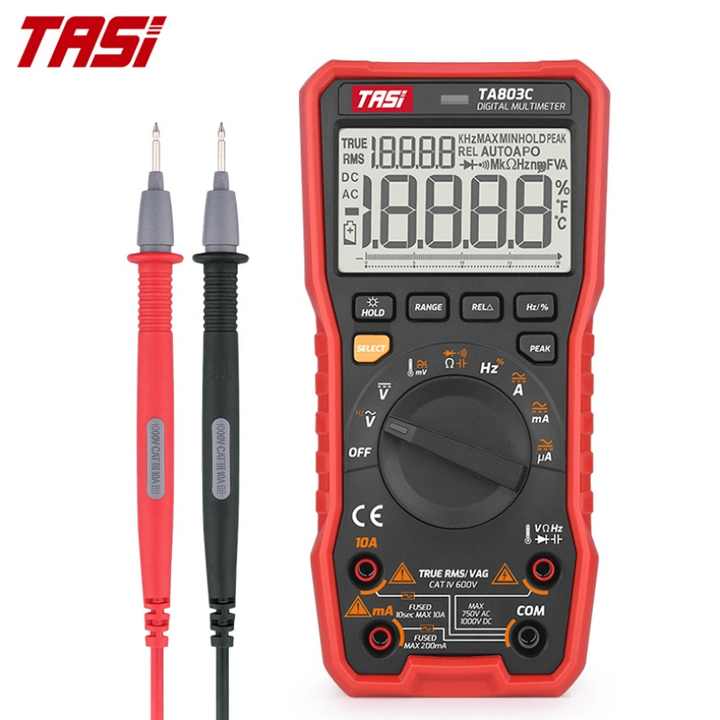

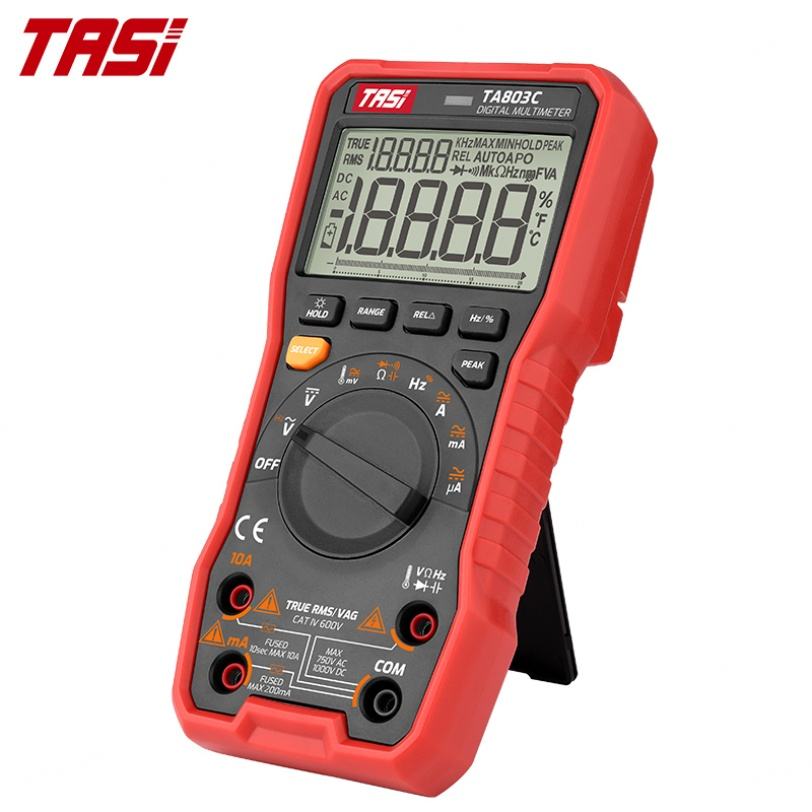

Product Name:Professional Digital Multimeter
Temperature:-20~1000℃

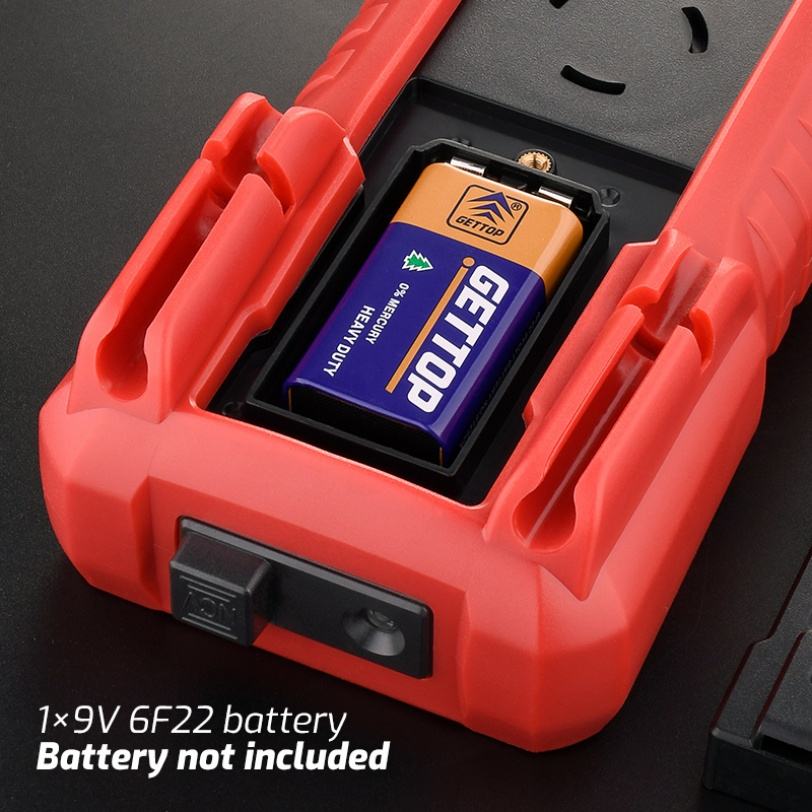

Power:6F22 9V Battery*1
Display Count:19999; HD backlight

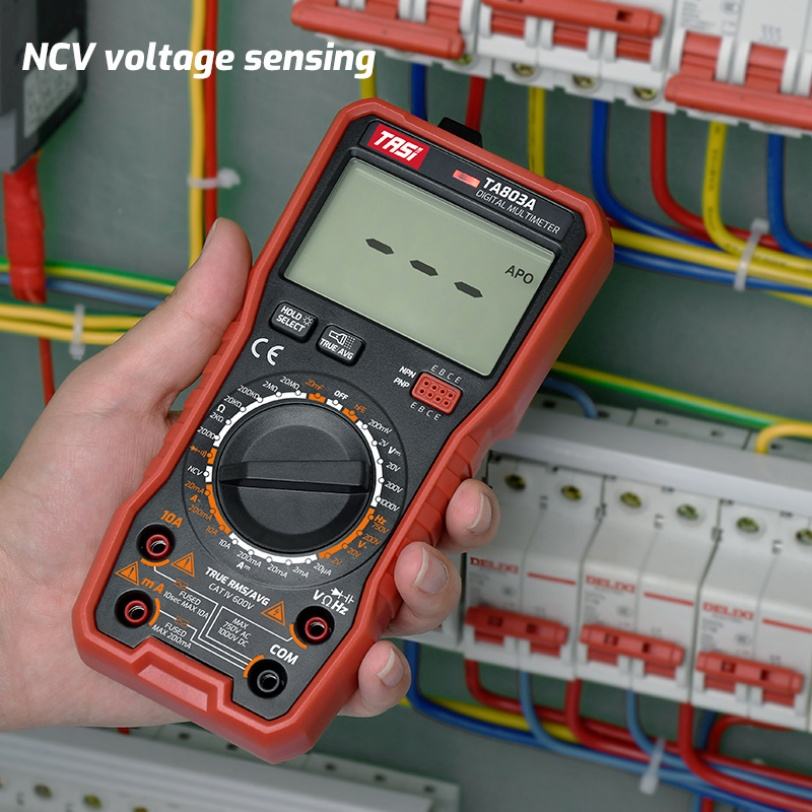

Function:Non contact voltage sensing
Range:Auto/Manual
Analog bar:Yes
Input impedance:10MΩ
Packing size / weight / quantity:43.5 * 33.5 * 42.5cm / 17.5KG / 30pcs

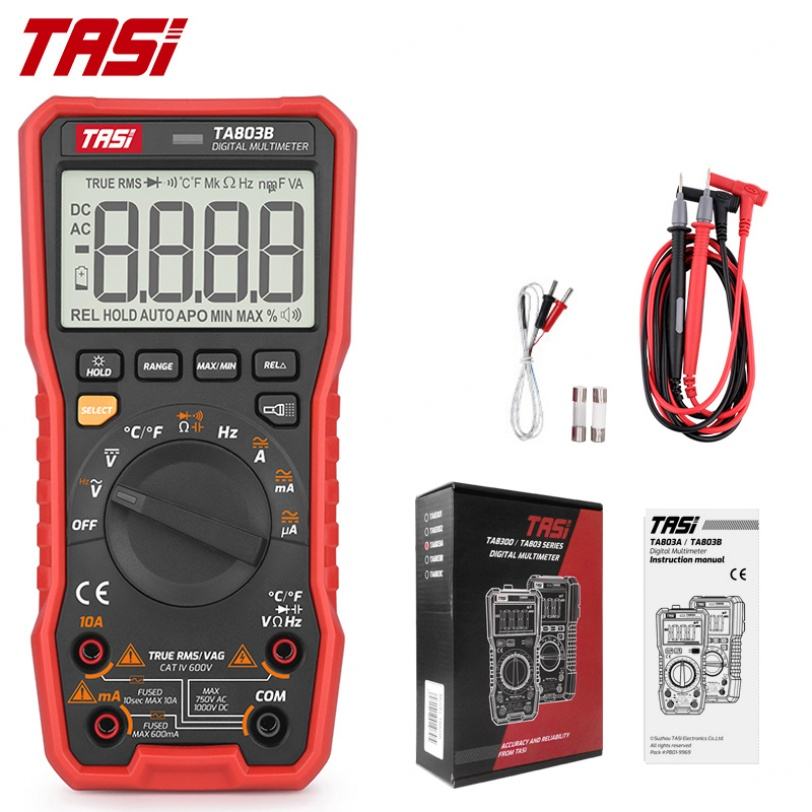

Delivery contents:Meter, box, manual, test leads *1 pair
