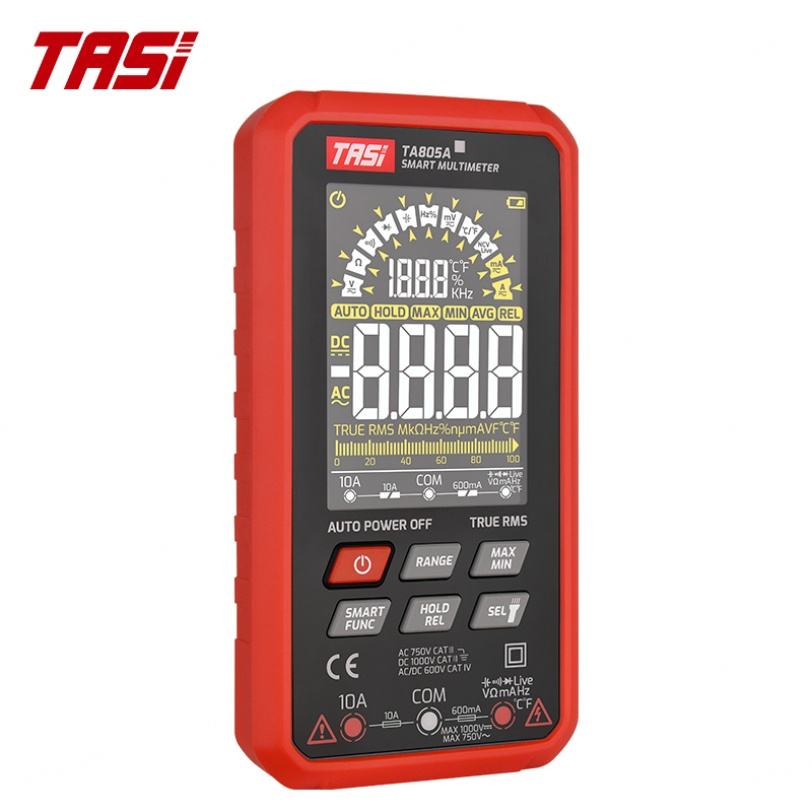

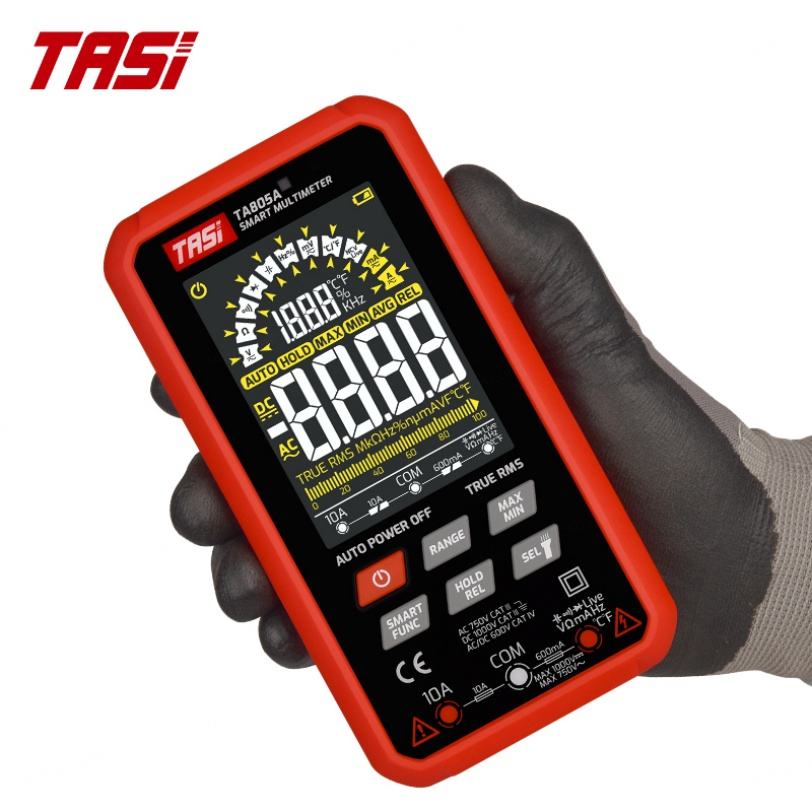

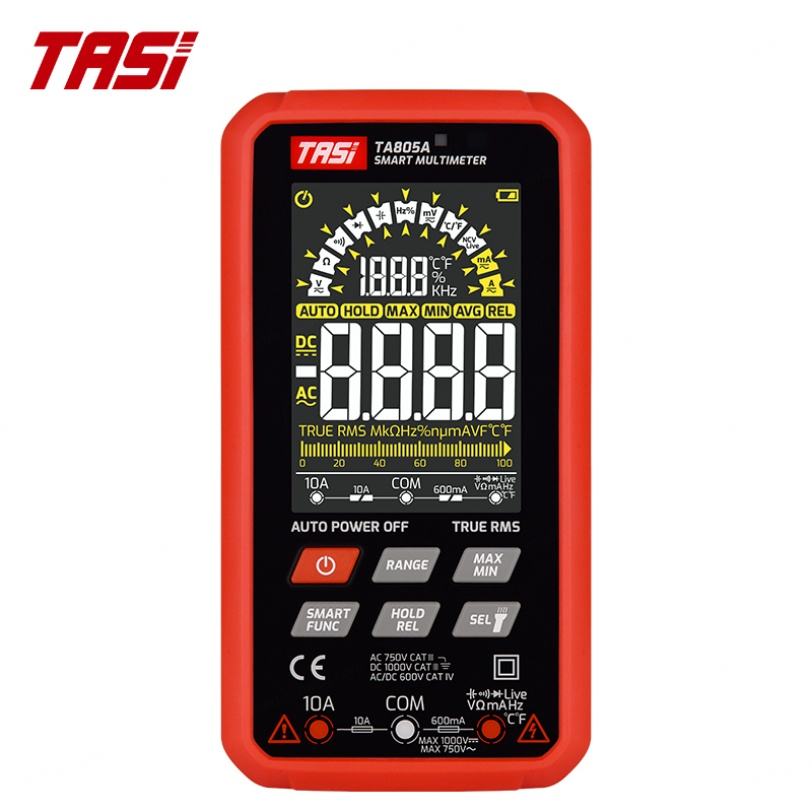

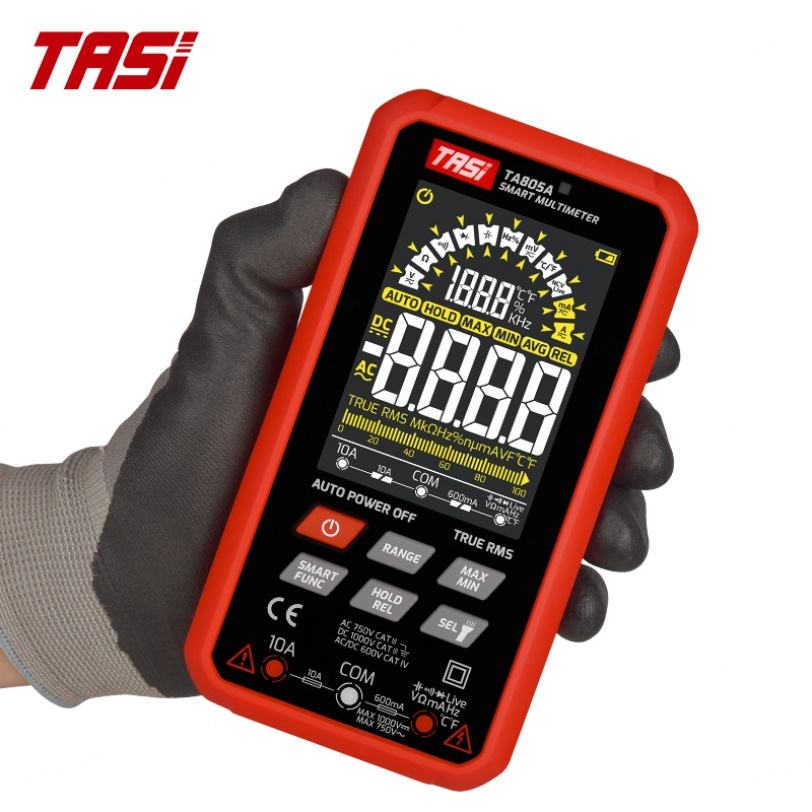

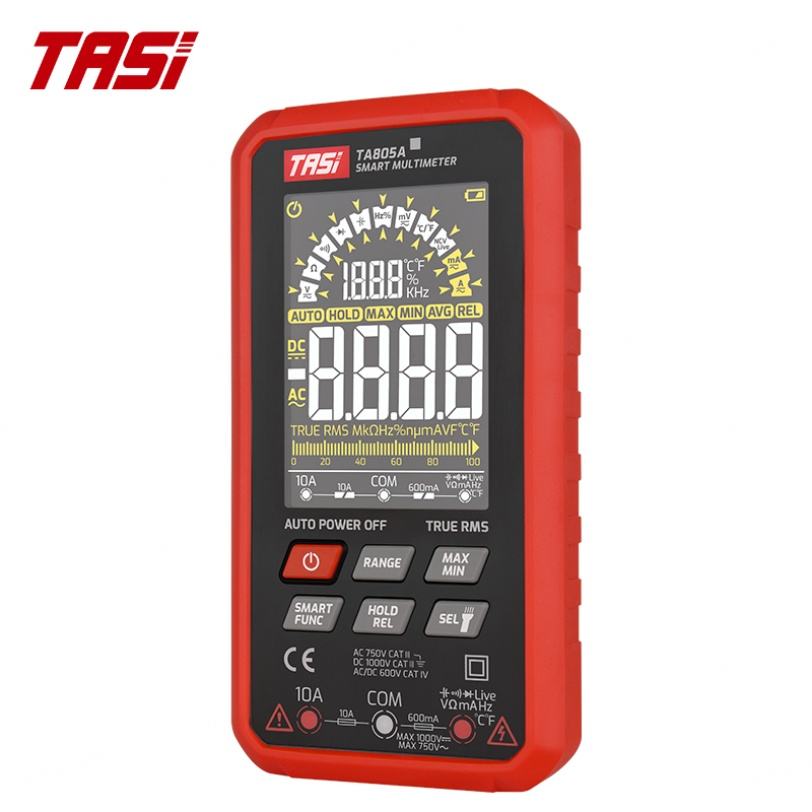

TASI TA805A High Precision Fully Automatic Auto Range Multi Meter Digital Multimeter Tester
No reviews yet
Attributes
±(0.01% + 1)Accuracy Class
0.001mA~10AMeasuring Current Range
0.01mV~1000VMeasuring Voltage Range
DC Current, AC Voltage, Frequency, DC Voltage, Capacitance, Resistance, AC Current, Diode, Duty Cycle, Low Input Impedance, TemperatureParameters Measured
Guangdong, ChinaPlace of Origin
TA805AModel Number
Brand Name:TASI
Application:Industrial Use, Household Use
Digits Displayed:4 Digits
Dimensions:153*81*27mm
Feature:Standard
Low Battery Indicator:Yes
Material:Plastic, PC, PVC
Max. AC Current:10A
Max. AC Voltage:750 V
Max. DC Current:10A
Max. DC Voltage:1000 V
Measuring Capacitance Range:0.1nF~100,000uF
Measuring Inductance Range:NA
Measuring Resistance Range:0.1Ω~100MΩ
Operating Temperature:0-40℃
Model:TA805A
Range:Auto Identification / Manual
DC voltage:0.01mV~1000V±(0.5%+8)
AC voltage:0.01mV~750V±(0.8%+5)
AC/DC current:0.001mA~10A±(1%+2)
Resistance:0.1Ω~100MΩ±(0.8%+3)
Frequency:1Hz~10MHz(1.0%+5)

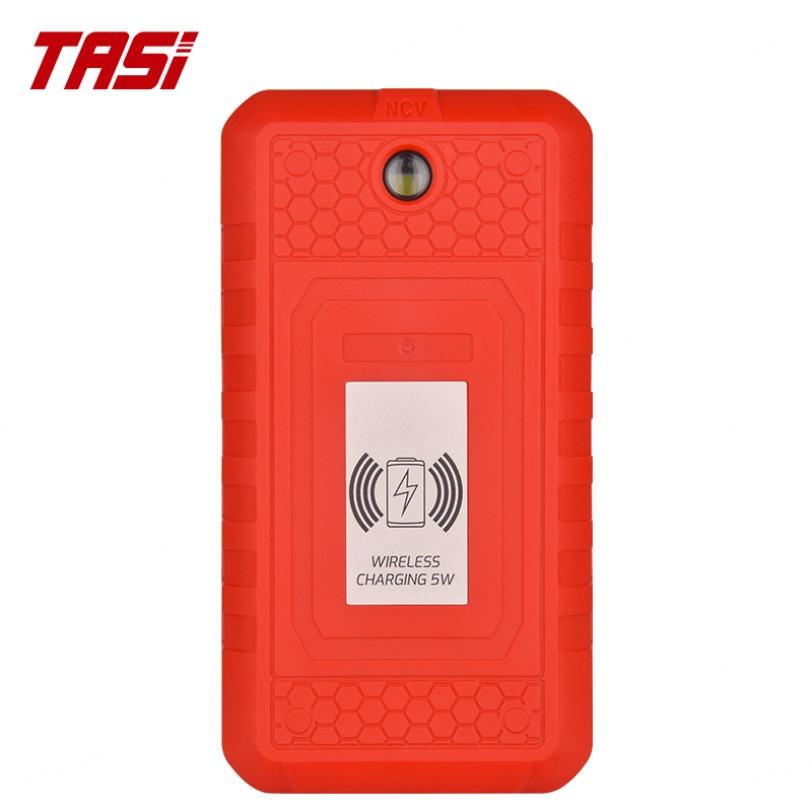

Power:3.7V 1000mAH lithium battery (wireless charging)
Size:153*81*27mm
Weight:240g (including battery)
Key attributes
Accuracy Class
±(0.01% + 1)
Measuring Current Range
0.001mA~10A
Measuring Voltage Range
0.01mV~1000V
Parameters Measured
DC Current, AC Voltage, Frequency, DC Voltage, Capacitance, Resistance, AC Current, Diode, Duty Cycle, Low Input Impedance, Temperature
Place of Origin
Guangdong, China
Model Number
TA805A
Brand Name
TASI
Application
Industrial Use, Household Use
Digits Displayed
4 Digits
Dimensions
153*81*27mm
Feature
Standard
Low Battery Indicator
Yes
Material
Plastic, PC, PVC
Max. AC Current
10A
Max. AC Voltage
750 V
Max. DC Current
10A
Max. DC Voltage
1000 V
Measuring Capacitance Range
0.1nF~100,000uF
Measuring Inductance Range
NA
Measuring Resistance Range
0.1Ω~100MΩ
Operating Temperature
0-40℃
Model
TA805A
Range
Auto Identification / Manual
DC voltage
0.01mV~1000V±(0.5%+8)
AC voltage
0.01mV~750V±(0.8%+5)
AC/DC current
0.001mA~10A±(1%+2)
Resistance
0.1Ω~100MΩ±(0.8%+3)
Frequency
1Hz~10MHz(1.0%+5)
Power
3.7V 1000mAH lithium battery (wireless charging)
Size
153*81*27mm
Weight
240g (including battery)
Packaging and delivery
Selling Units
Single item
Single package size
18X12X6 cm
Single gross weight
0.500 kg
Lead time
Product descriptions from the supplier
1 - 59 pieces
£2102
>= 60 pieces
£1952
Variations
Select nowColor: Black
Instrument Counts
9999
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
