Attributes
±(0.01% + 1)Accuracy Class
0.001mA~10AMeasuring Current Range
0.01mV~1000VMeasuring Voltage Range
Low Input Impedance, DC Current, AC Voltage, AC Current, Capacitance, DC Voltage, Diode, Duty Cycle, Frequency, Resistance, TemperatureParameters Measured
Guangdong, ChinaPlace of Origin
TA805AModel Number
Brand Name:TASI
Application:Household Use, Industrial Use
Digits Displayed:4 Digits
Dimensions:153*81*27mm
Feature:Standard
Low Battery Indicator:Yes
Material:Plastic, ABS, PC, PVC
Max. AC Current:600 A
Max. AC Voltage:600 V
Max. DC Current:600 A
Max. DC Voltage:1000 V
Measuring Capacitance Range:0.1nF~100,000uF
Measuring Inductance Range:NA
Measuring Resistance Range:0.1Ω~100MΩ
Operating Temperature:0-40℃
Model:TA805B
Range:Auto Identification / Manual
DC voltage:0.01mV~1000V±(0.5%+8)
AC voltage:0.01mV~750V±(0.8%+5)
AC/DC current:0.001mA~10A±(1%+2)
Resistance:0.1Ω~100MΩ±(0.8%+3)
Frequency:1Hz~10MHz(1.0%+5)

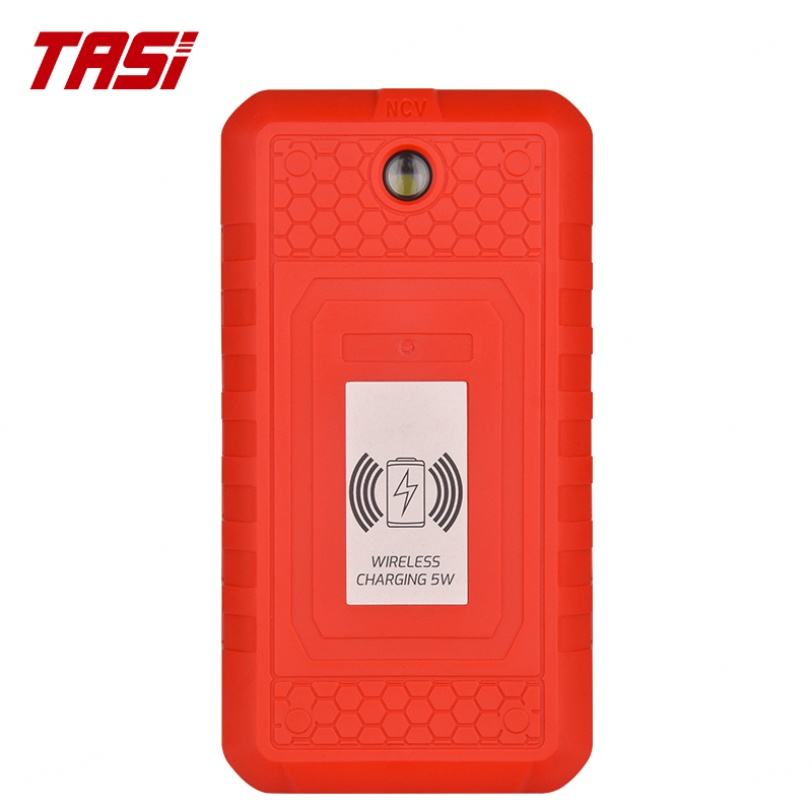

Power:3.7V 1000mAH lithium battery (wireless charging)
Size:153*81*27mm
Weight:235g ( battery not included)
