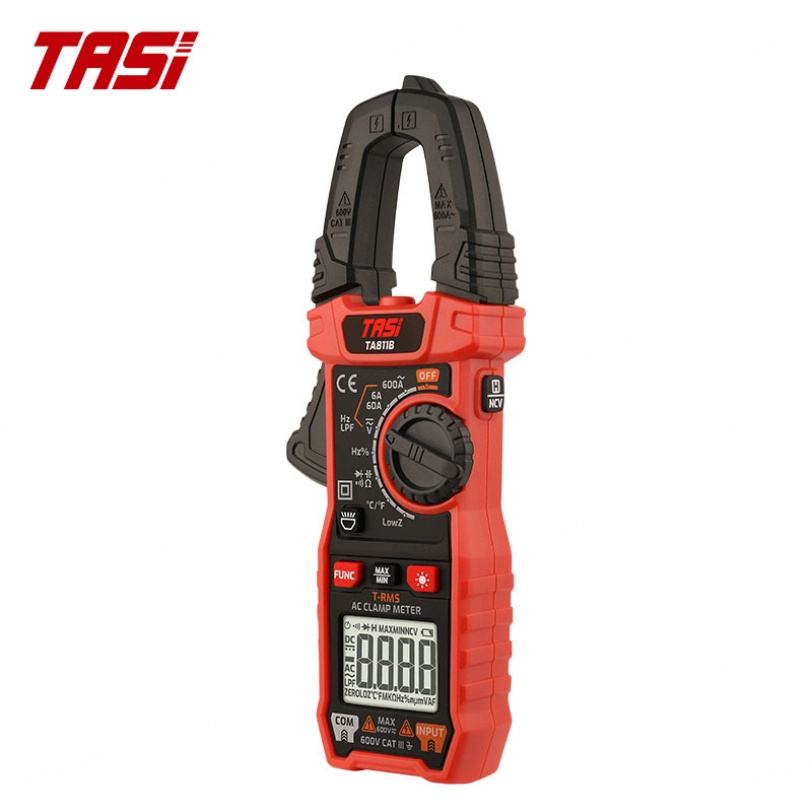

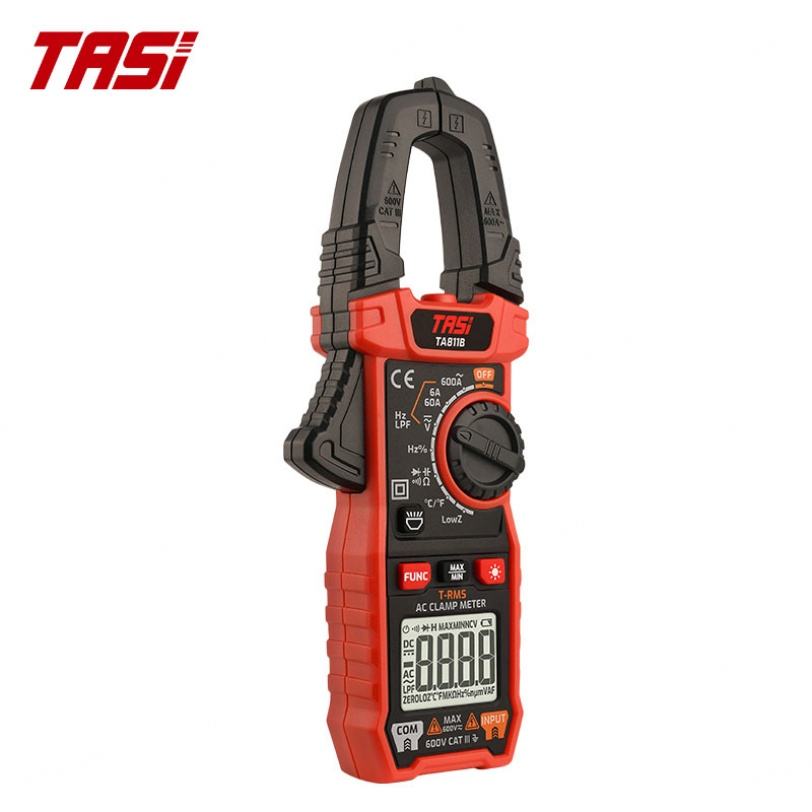

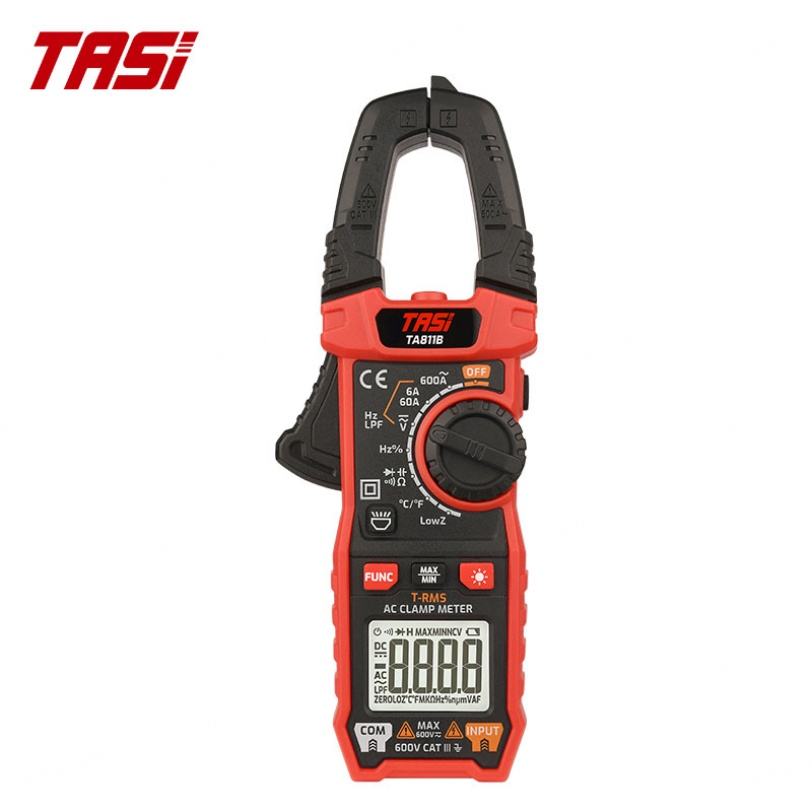

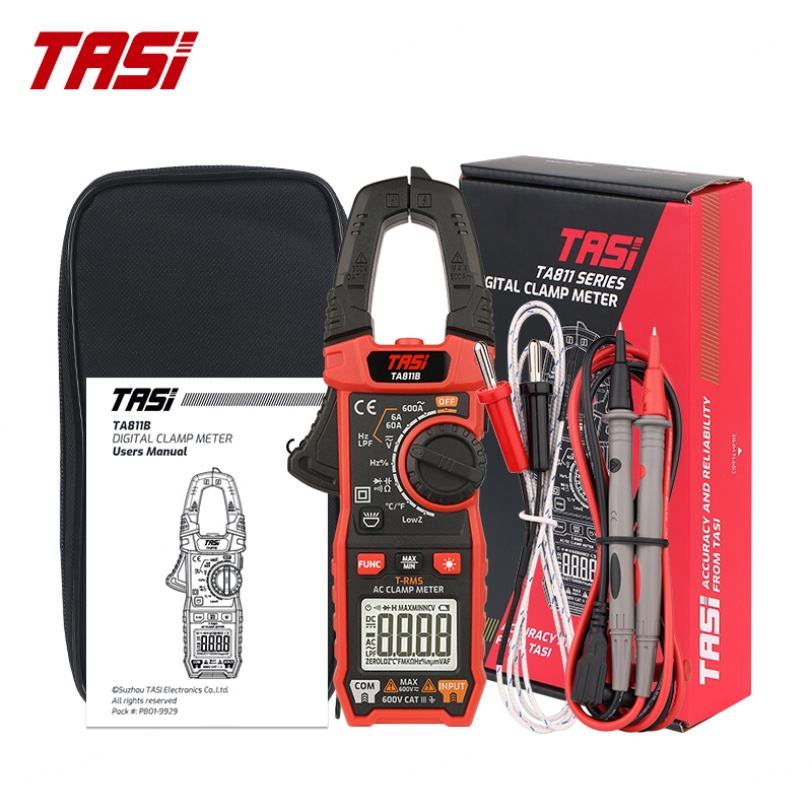

TASI TA811B Digital Pocket Clamp Meter 600A AC/DC 600V DC Current Resistance Diode Temperature Frequency Power Factor
No reviews yet
Attributes
27MMClamp Opening Size
600 AMax. Ac Current
10AMax. DC Current
600V AC/DCMeasuring Voltage Range
Guangdong, ChinaPlace of Origin
TA811BModel Number
Brand Name:TASI
Dimensions:194*73*31mm
Display Type:Digital Only
Instrument Safety Rating:NA
Max. Ac Voltage:600 V
Max. DC Voltage:NA
Measuring Capacitance Range:1nF~100,000μF
Measuring Current Range:0.01A~600A AC
Measuring Inductance Range:N/A
Measuring Resistance Range:0.1Ω~60MΩ
Operating Temperature:0~40℃
Parameters Measured:DC Current, AC Voltage, Frequency, Temperature, DC Voltage, Capacitance, Diode, Resistance, AC Current
Weight:177g
Product name:Clamp Meter
Model:TA811B
DC voltage:0.1mV~600V±(0.5%+5)
AC voltage:0.001V~600V±(0.8%+5)
AC current:0.01A~600A±(2.5%+5)
Resistance:0.1Ω~60MΩ±(1.0%+5)
Capacitance:1nF~100,000μF±(54.0%+5)
Frequency:10Hz~10MHz±(1.0%+3)
Temperature:-20~1000°C±(1.0%+2)
Display:5999 Counts
Key attributes
Clamp Opening Size
27MM
Max. Ac Current
600 A
Max. DC Current
10A
Measuring Voltage Range
600V AC/DC
Place of Origin
Guangdong, China
Model Number
TA811B
Brand Name
TASI
Dimensions
194*73*31mm
Display Type
Digital Only
Instrument Safety Rating
NA
Max. Ac Voltage
600 V
Max. DC Voltage
NA
Measuring Capacitance Range
1nF~100,000μF
Measuring Current Range
0.01A~600A AC
Measuring Inductance Range
N/A
Measuring Resistance Range
0.1Ω~60MΩ
Operating Temperature
0~40℃
Parameters Measured
DC Current, AC Voltage, Frequency, Temperature, DC Voltage, Capacitance, Diode, Resistance, AC Current
Weight
177g
Product name
Clamp Meter
Model
TA811B
DC voltage
0.1mV~600V±(0.5%+5)
AC voltage
0.001V~600V±(0.8%+5)
AC current
0.01A~600A±(2.5%+5)
Resistance
0.1Ω~60MΩ±(1.0%+5)
Capacitance
1nF~100,000μF±(54.0%+5)
Frequency
10Hz~10MHz±(1.0%+3)
Temperature
-20~1000°C±(1.0%+2)
Display
5999 Counts
Packaging and delivery
Selling Units
Single item
Single package size
23X12X5 cm
Single gross weight
0.500 kg
Lead time
Product descriptions from the supplier
1 - 199 pieces
£1352
200 - 399 pieces
£1276
>= 400 pieces
£1202
Variations
Select nowColor: Black
Instrument Counts
6000
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
